4. GUIDANCE CUTTING OPERATIONS

OPERATION B-63424EN/03

-72-

4.3.5 Operation of Guidance Cutting (Line)

By using a guidance handwheel on a machine operator’s panel, an

operator can carry out the following 2 types of linear cutting in

simultaneous X and Y-axis direction.

• Approach Cutting to an inputted Target Line

• Along Cutting to an inputted Target Line

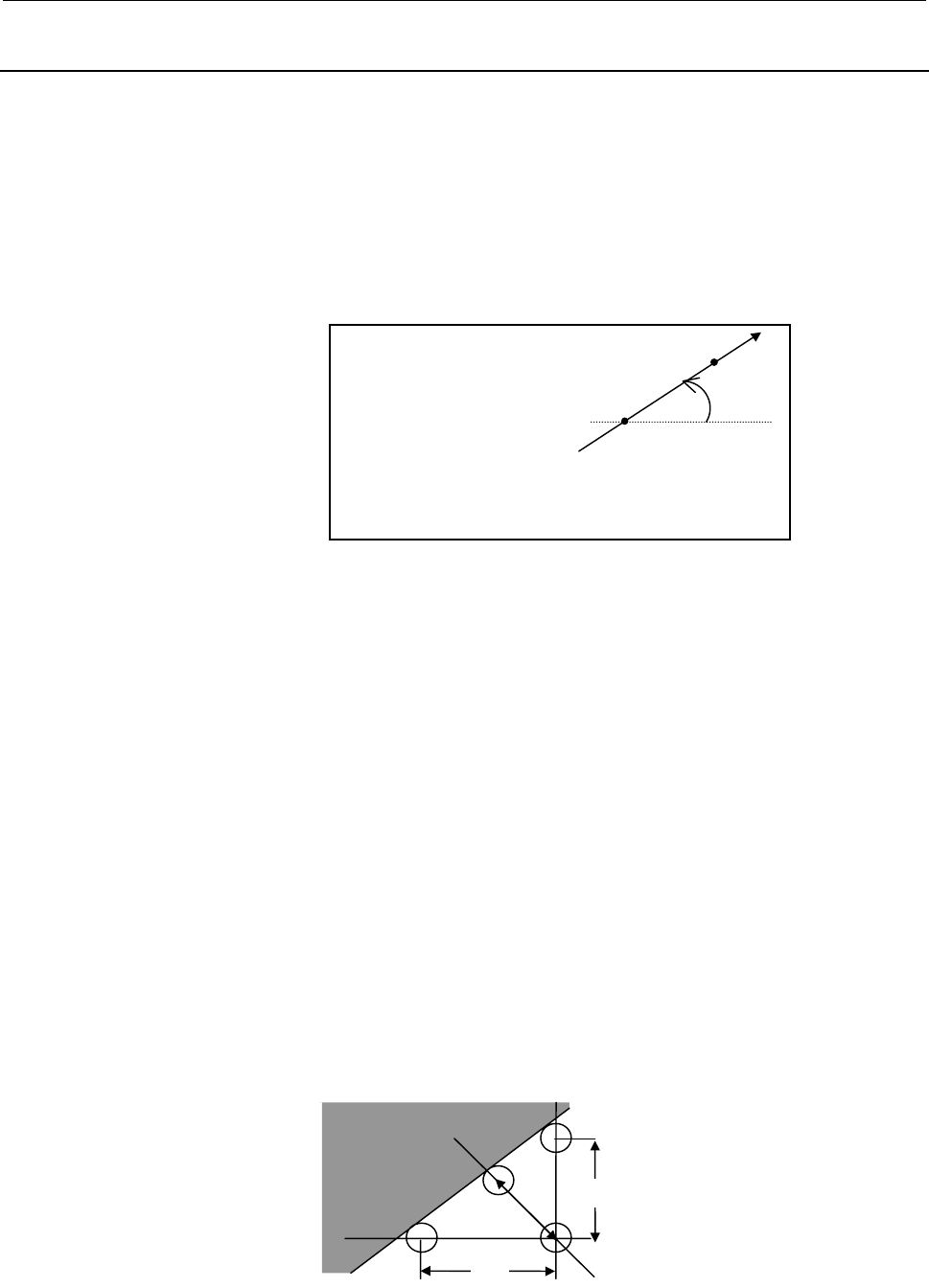

In order to input a target line, the following data input window is

displayed in a pop-up window, and it can be called by pushing a

[LINE].

X1/Y1/X2/Y2 POS.

: Absolute coordinate of separated 2 points on a

line.

ANGLE

: Angle of line from +X-axis. A positive angle is

clockwise direction from +Y-axis, and minus

angle is counter clockwise direction. If this data

is inputted, only 1 point coordinate data is

necessary among the above 2 points.

After inputting necessary data in the above window, by pushing

[INPEND], an operator can begin guidance cutting.

Besides inputting data for target line, the following distance data are

displayed in a pop-up window. An operator can move the tool while

checking the distance to the target line.

: Distance between the current tool position and the

target line.

DX/DY

: Distance between the current tool position and the

target line along X or Y-axis.

(X2,Y2)

X1 POS. =

Y1 POS. =

X2 POS. =

Y2 POS. =

ANGLE =

(X1,Y1)
