B-63424EN/03 OPERATION

4. GUIDANCE CUTTING OPERATIONS

-81-

4.5 CHECKING CUTTING MOTIONS ON A GRAPHIC WINDOW

By pushing the soft-key [RAPID] or [CUT], taught-in “Rapid Traverse

Block” and “Cutting Motion Block” can be displayed graphically in a

graphic window.

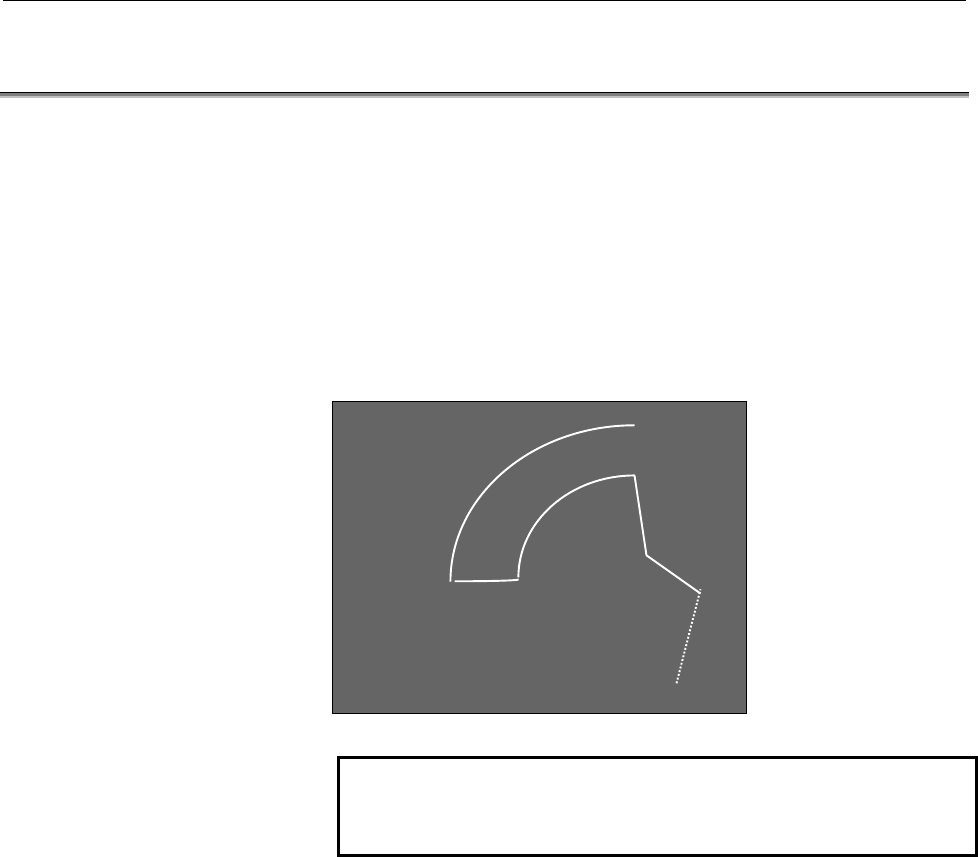

In a graphic window, drawing of taught-in motion blocks are displayed

in line form.

Cutting motion blocks are displayed by solid lines, and rapid traverse

blocks are displayed by dotted line.

Figure which is specified by the operation described in Chapter 4.3.5

and 4.3.6 is displayed by solid line with red color.

NOTE

The 1

block, since its starting point is not clear, is not

displayed as a line drawing.
