FAPT Macro Compiler (for PC) Programming manual Page 194

Programming manual
K. BOOT SYSTEM (FOR Series 15-B/15i-A)
B–66102E/10
APPENDIX
184

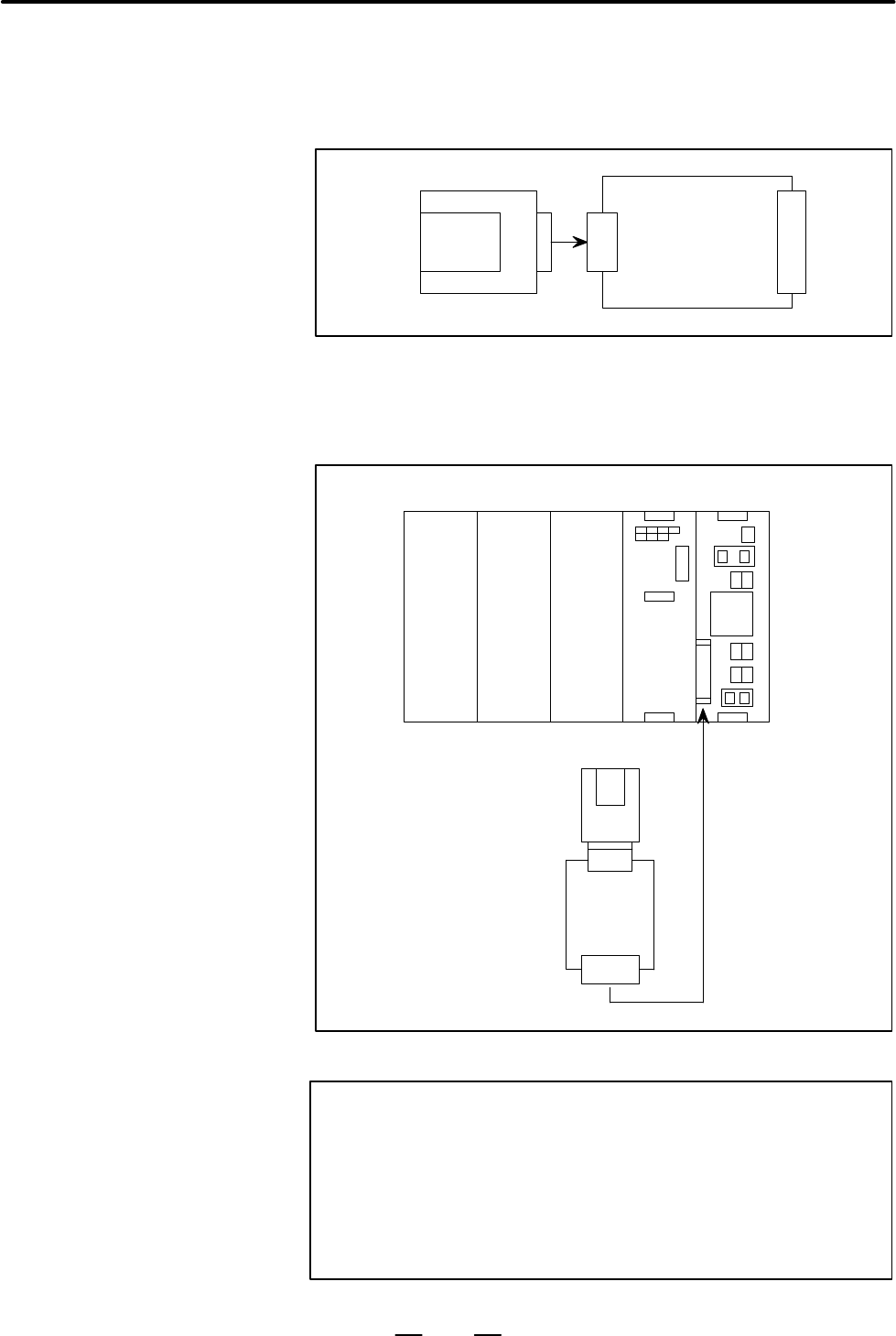

(1) Connect the ROM cassette into which the program has been written
using System P or a personal computer to the ROM cassette adapter
(A20B-2000-0760).
ROM cassette adapter
(A20B-2000-0760)
ROM
cassette
Fig. K.6 (a) Connection of the ROM Cassette to the ROM Cassette Adapter
(2) Turn off the power of the CNC unit, then insert the ROM cassette
adapter into the mini slot of the CNC unit. The mini slot is on the PSU
and is protected with a cover when not in use.
ROM cassette
PMC PSU
Series 15-B
ROM cassette adapter
Fig. K.6 (b) Connection of the ROM Cassette Adapter to the CNC Unit
CAUTION
Be sure to turn off the power of the CNC unit before inserting
or removing the ROM cassette. Inserting or removing the
adapter while the CNC power is on can not only damage the
CNC unit and the ROM cassette but can also destroy
battery-retained data, such as NC programs and
parameters.
K.6
REGISTERING A
ROM–FORMAT FILE,
STORED ON A ROM
CASSETTE, INTO
F–ROM
