CNC Setting Tool Operators manual Page 103

Operators manual
B-64174EN/01 PROFIBUS CONFIGURATION TOOL 3.OPERATION
- 93 -
NOTE
1 The values in “Refresh Time” on this screen are
estimated values. Check the actual refresh time
values on the communication status view of the
setting screen for the PROFIBUS-DP master
function on the CNC side.
2 When the PROFIBUS software series is 6558,
6557/09 or later, or 655G, refresh time calculation
is not supported.

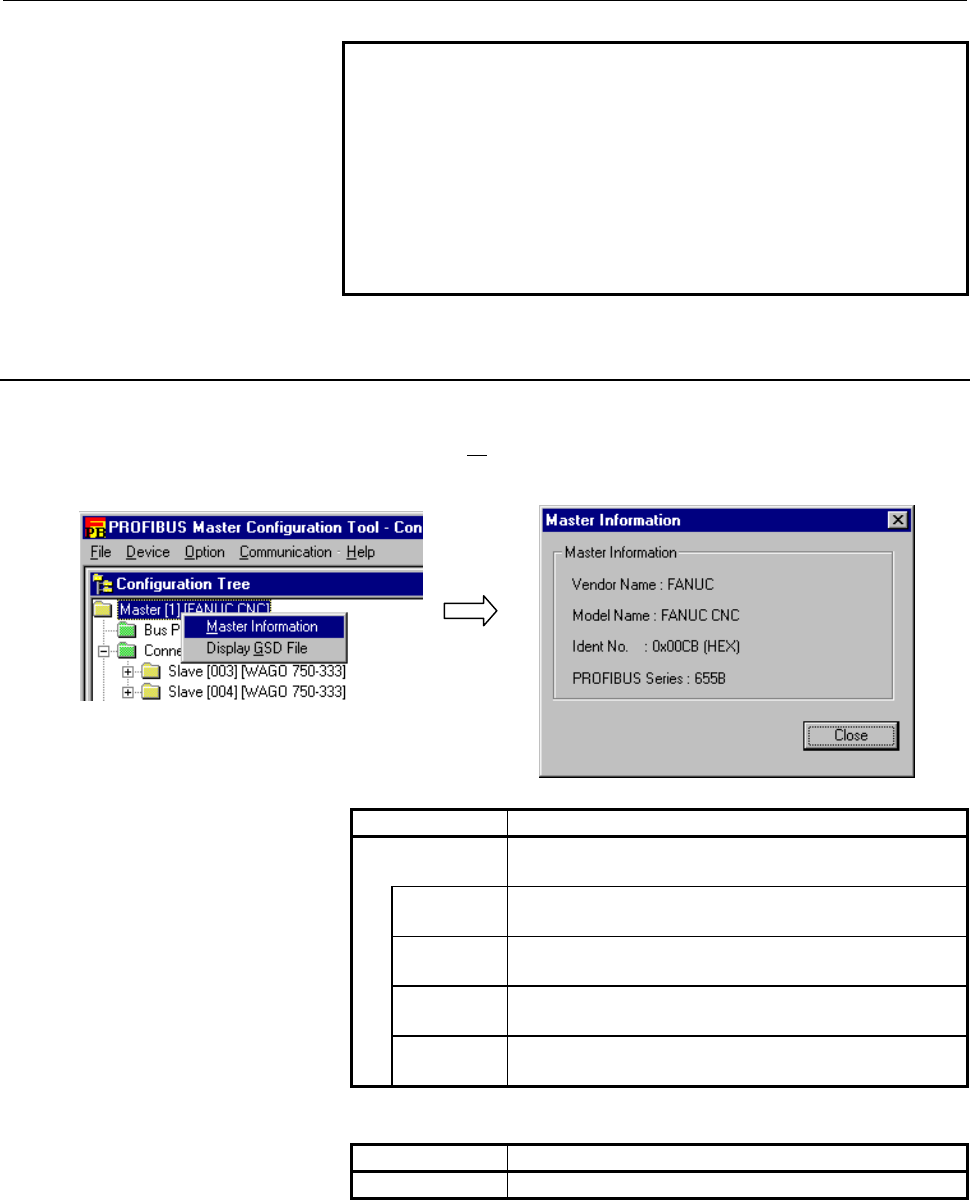

3.2.17 Master Information Screen
This subsection describes the Master Information screen.
Right-click <M
aster Information> in the configuration tree. The
Master Information screen is displayed.
Display item
Item Description
Master
Information
Displays information about the master station.
Vendor
Name
Displays the vendor (manufacturer) name of the
master station.
Model
Name
Displays the model name of the master station.
Ident No. Displays the model identification number (PROFIBUS
ID) of the master station.
PROFIBUS
Series
Displays the PROFIBUS software series on the master
station.
Button
Item Description
Close Closes this screen.
