FANUC CNC Setting Tool
OPERATOR’S MANUAL
- Memory Card
- Ethernet

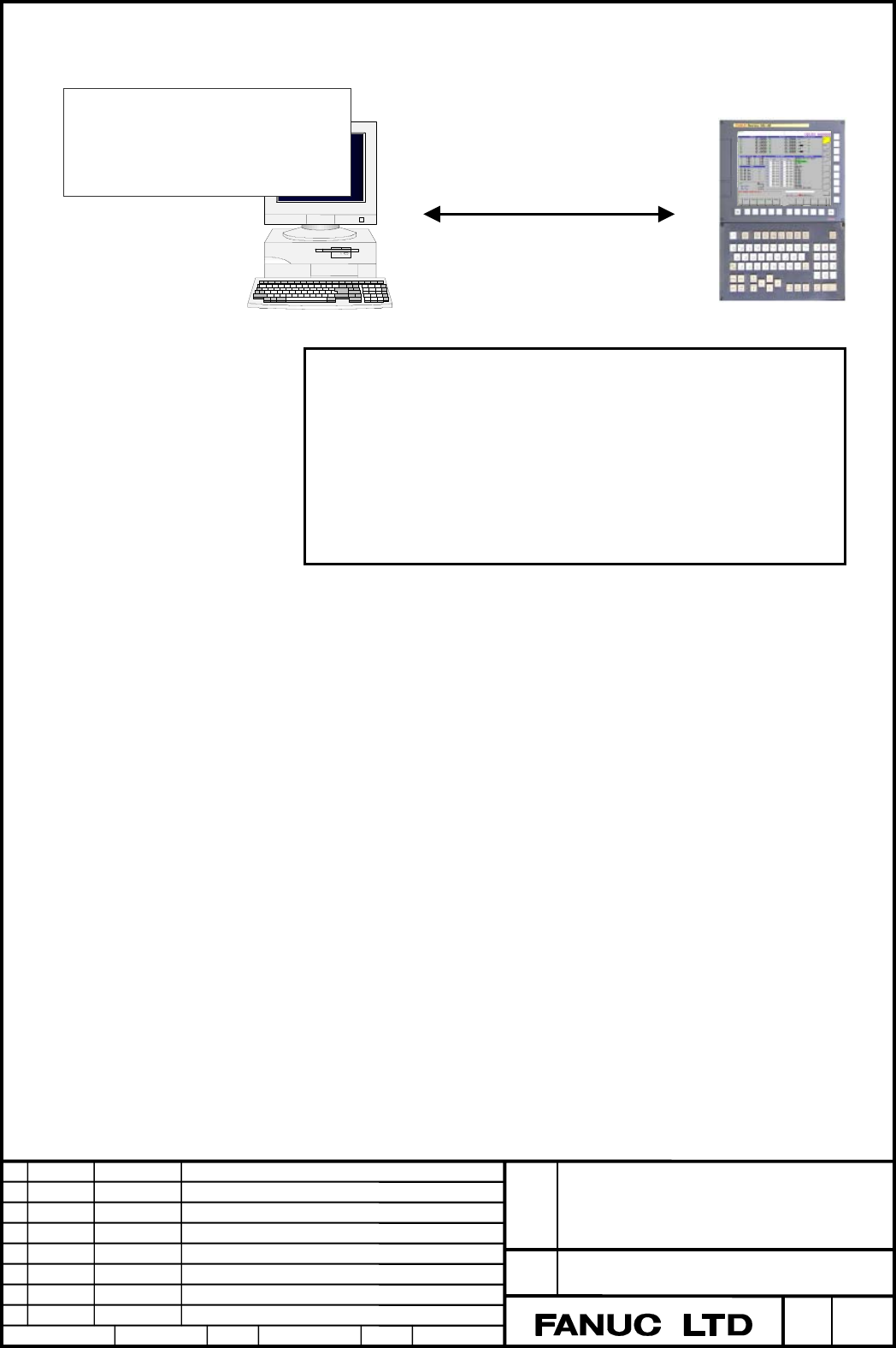

Transmission of a
Parameter file between
the CNC and the
personal computer
- Display and modification
of parameter file
- Comparison between
two parameter files
CNC Setting
CNC
NOTE
- This tool does not have function to create a new
parameter file. You can get a parameter file from
CNC, edit the file, and then set it up to CNC.
- What this tool changes is the value of a parameter file
on a personal computer. Even if CNC is connected
via Ethernet, it is not supported to show the current
value of CNC and to change the value of CNC
parameter directly.
Supported CNC
The supported type of CNC is as follows.
FANUC Series 30i / 300i Model-A
FANUC Series 31i / 310i Model-A
FANUC Series 32i / 320i Model-A
If Ethernet is used for the transmission of a CNC parameter file, Ethernet
function (Embedded Ethernet or Ethernet board) is necessary for CNC.
About Parameter File
This tool corresponds to three types of line end characters in a parameter file,
LF, CR LF and LF CR CR. When you change the value of a file and save it,
line end characters are kept. (The same line end characters are used when the
file is saved.)
When you set CNC parameter No.10#1 as 1, CNC does not output the
parameter whose value is zero. Parameter files punched by this setting are
not supported by this tool.
With the multi-path CNC, select the path 1 before the transmission of CNC
parameter.
