CNC Setting Tool Operators manual Page 43

Operators manual
B-64174EN/01 PROFIBUS CONFIGURATION TOOL 2.QUICK START
- 33 -

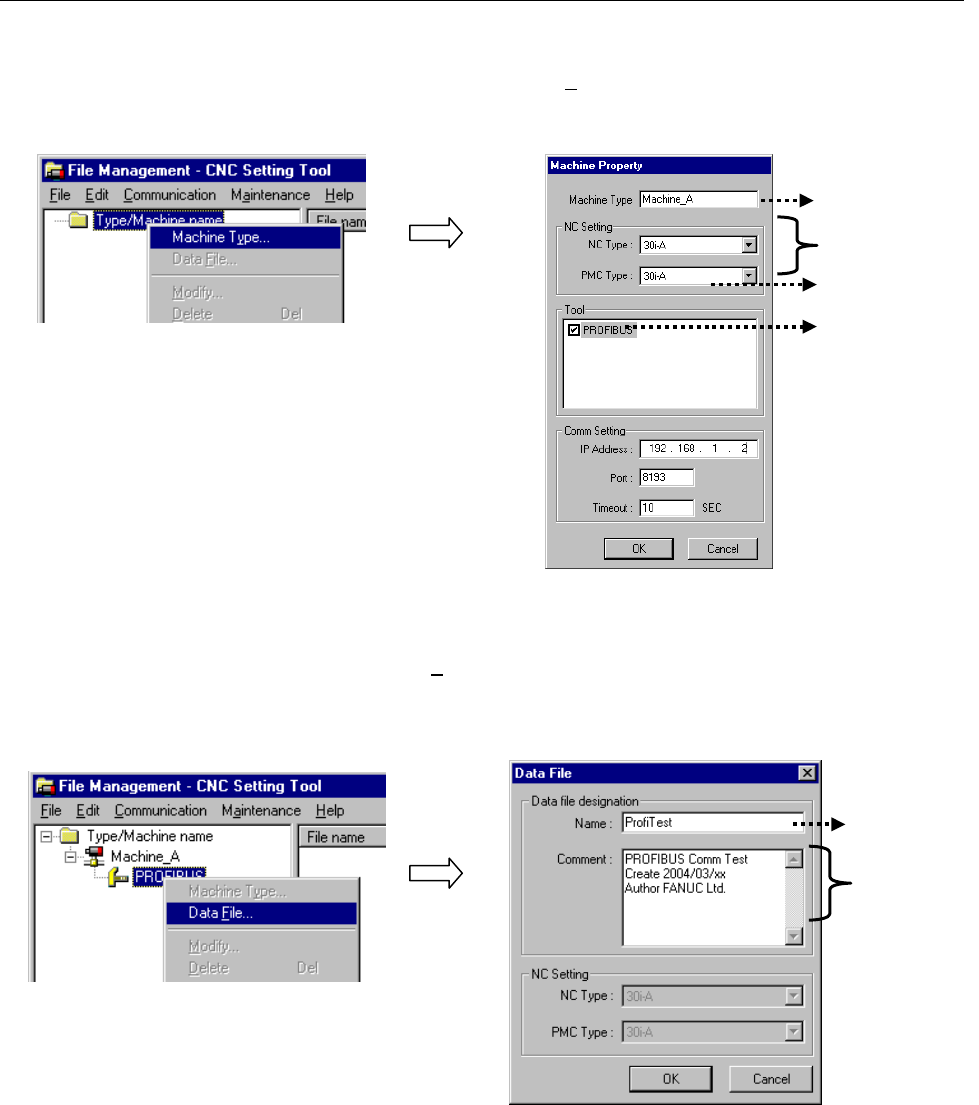

2 Select and right-click <Type/Machine name> in the tree then
choose <Machine Ty
pe...>. The Machine Property screen is
displayed.
Make the following settings:
To quit the Machine Property screen, click [OK].
3 Select and right-click <Machine_A>\<PROFIBUS> then choose
[Data F
ile...]. The Data File screen is displayed.
("Machine_A" is the same name as set in "Machine Type" on the
Machine Property screen.)
Make the following settings:
The setting in "Name" serves as the data file name used at a later
time to store setting data.
In "Comment", enter arbitrary information such as management
information.
Only the first line ("PROFIBUS Comm Test" in the example) of
comments entered here is displayed in the comment column on the
file list screen.
To quit the Data File screen, click [OK].
A
rbitrar
y
A
rbitra
r
y
To be matched
with
CNC
Check this
item.
A
rbitrar
y
