B-64174EN/01 PROFIBUS CONFIGURATION TOOL 3.OPERATION
- 87 -
3.2.14 Change Grouped Slots Screen

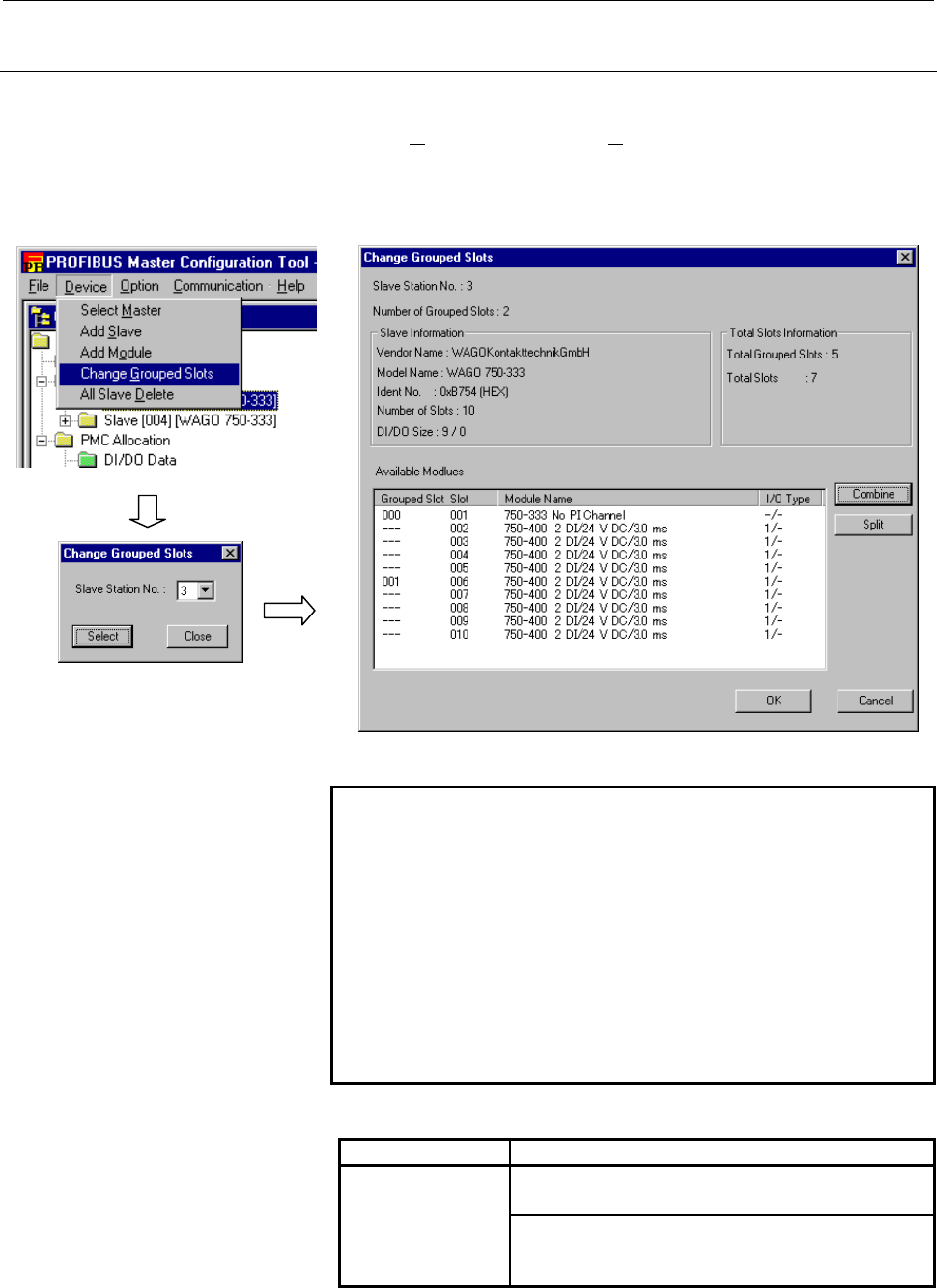

This subsection describes the Change Grouped Slots screen.
Choose [D
evice] then [Change Grouped Slots] from the menu. The
Change Grouped Slots screen (slave selection) is displayed.
Before making a grouped slot modification, select a slave station
number on the Change Grouped Slots screen (slave selection).
Slave selection Modification
NOTE
In the example of "Available Modules" on the
Change Grouped Slots screen (modification),
connection slot numbers 001 through 005 are
assigned to the modules that belong to grouped slot
number 000, and connection slot numbers 006
through 010 are assigned to the modules that belong
to grouped slot number 001.
When this screen is displayed initially, all modules
belong to grouped slot number 000 ("Number of
Grouped Slots: 1").
Setting item on the Change Grouped Slots screen (slave selection)
Item Description
Select a slave station number for which a grouped
slot modification is to be made.
Slave Station No.
Range: 0 to 125
(Only a slave station number added on the
Add Slave screen can be selected.)
Previous page
Next page
