CNC Setting Tool Operators manual Page 62

Operators manual
3.OPERATION PROFIBUS CONFIGURATION TOOL B-64174EN/01
- 52 -
3.1 STARTING AND QUITTING THE PROFIBUS
CONFIGURATION TOOL
The methods of starting and quitting the PROFIBUS configuration
tool are described below.
NOTE
Before the PROFIBUS configuration tool can be
started, the file management function must be
started. For the method of starting the file
management function, see Section 4.2,
"STARTING AND QUITTING THE FILE
MANAGEMENT FUNCTION".
This section describes the method of operation to
be performed when the file management function
is already started.
Starting the PROFIBUS configuration tool
The PROFIBUS configuration tool is started using the file
management function.
For the method of starting the PROFIBUS configuration tool, see
Section 4.3, "STARTING THE CONFIGURATION TOOL".
Quitting the PROFIBUS configuration tool
The method of quitting the PROFIBUS configuration tool is described
below.

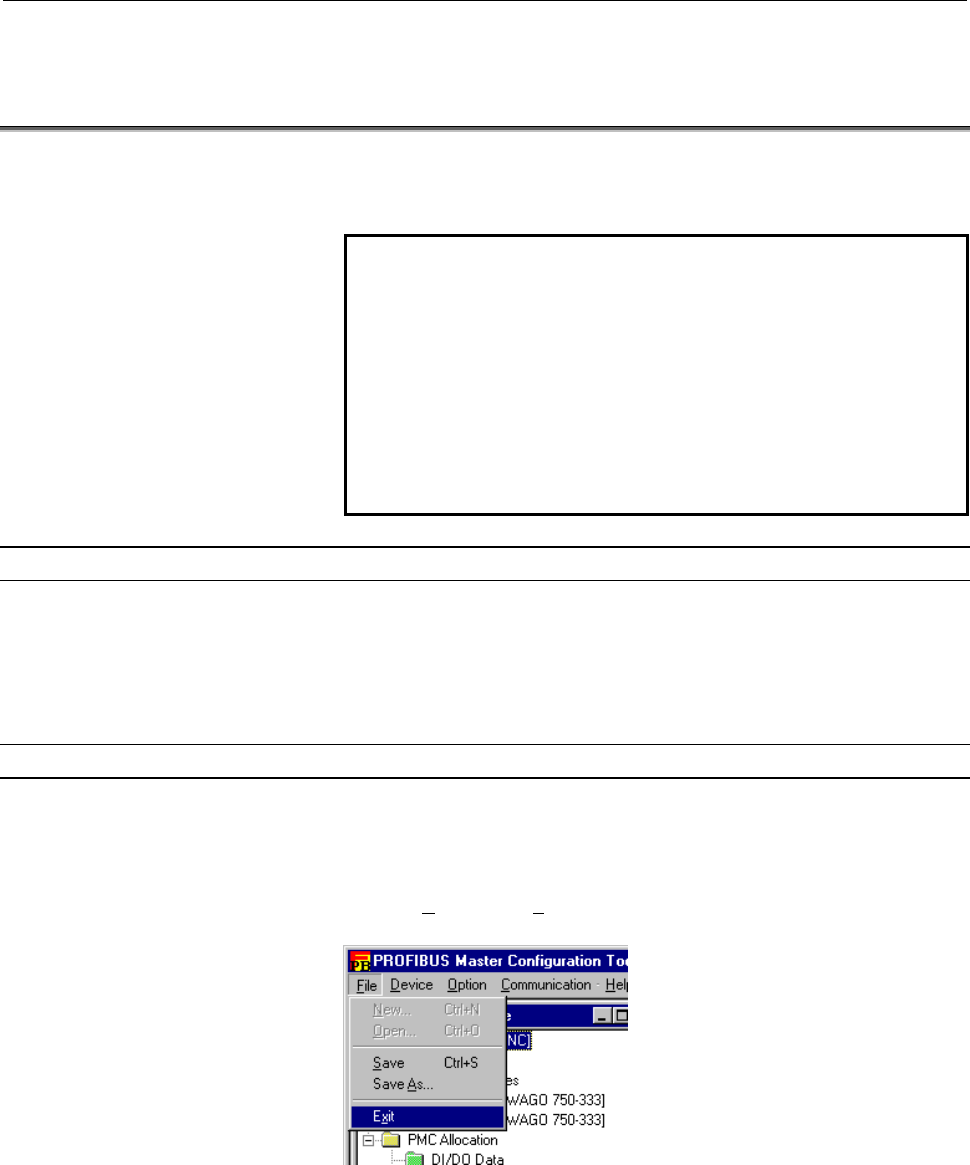

Choose [F
ile] then [Exit] from the menu.
