CNC Setting Tool Operators manual Page 63

Operators manual
B-64174EN/01 PROFIBUS CONFIGURATION TOOL 3.OPERATION
- 53 -
3.2 OPERATION OF EACH SCREEN
This section describes each screen of the PROFIBUS configuration
tool in detail.

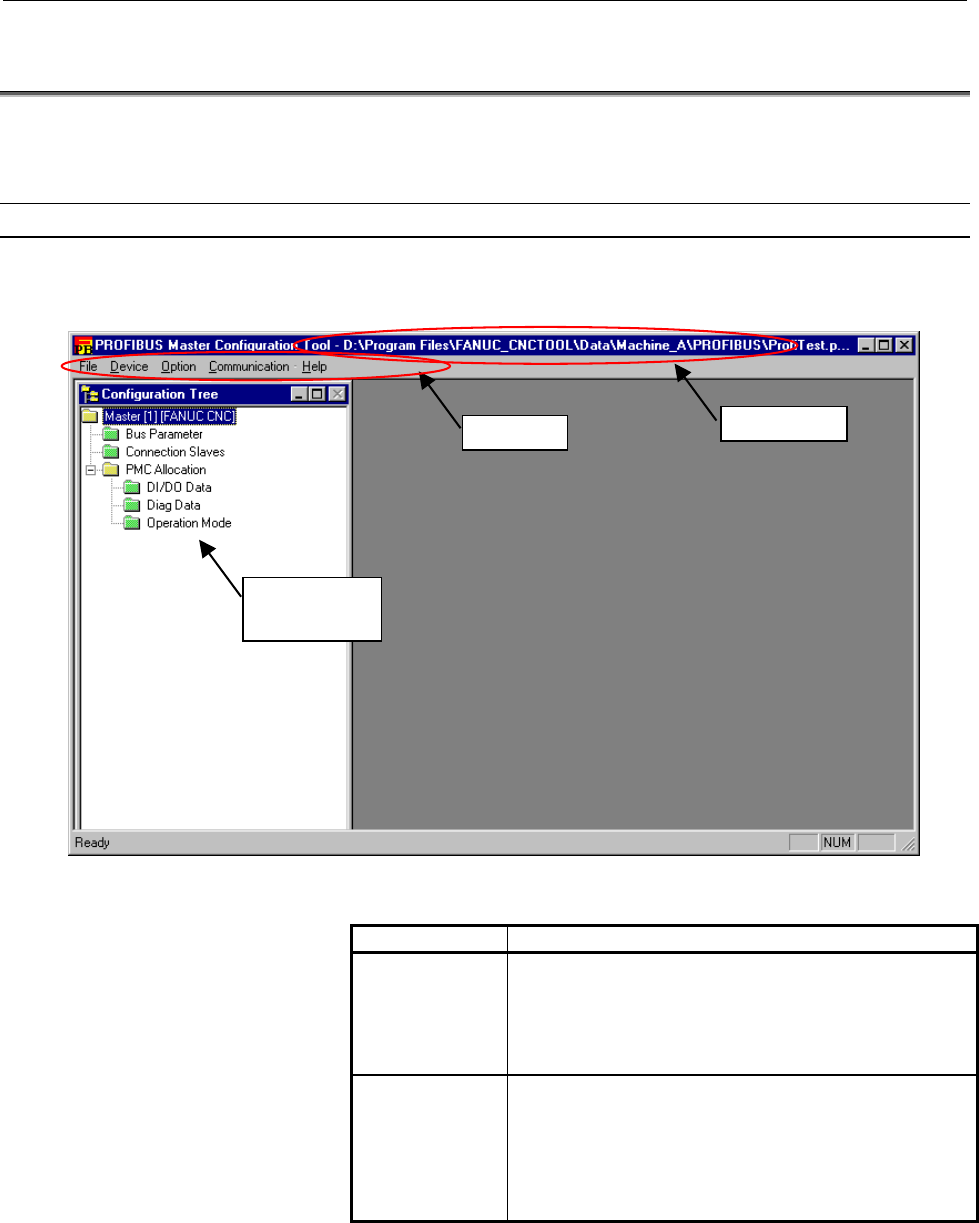

Description of the starting screen
The items of the starting screen are described below.
Display item
Item Description
Configuration
tree
Settings are displayed in tree form.
When a setting is added, the setting is displayed at a
lower level under the relevant folder.
A folder displayed in green means that when you click
the folder, the corresponding setting screen is displayed.
File name The path and name of the pme file currently being set is
displayed.
For a newly created file, "file-path"\"file-name[NEW]" is
displayed.
For a file being edited, "file-path"\"file-name[EDIT]" is
displayed.
Configuration
tree
File name
Menu
Previous page
Next page
