CNC Setting Tool Operators manual Page 46

Operators manual
2.QUICK START PROFIBUS CONFIGURATION TOOL B-64174EN/01
- 36 -

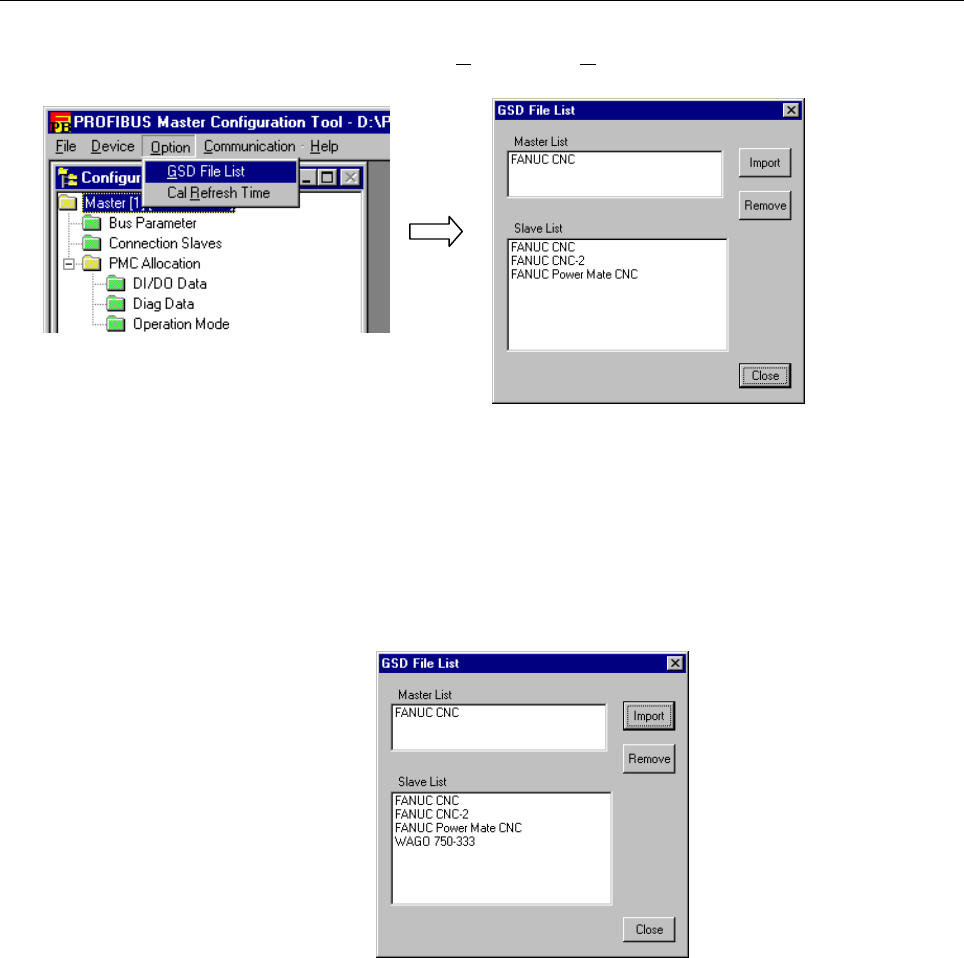

6 Choose [Option] then [GSD File List]. The GSD File List screen
is displayed.
In "Slave List", slave stations to be engaged in communication
must be registered.
(Immediately after installation, the GSD files indicated on the
screen above are registered.)
For file registration, click [Import] to display the Open File screen.
From the Open File screen, select a GSD file to be newly
registered.
In the example below, I/O module "750-333" (GSD file:
Wagob754.gsd) available from Wago is imported normally.
To quit the GSD File List screen, click [Close].
