FANUC CNC Setting Tool
OPERATOR’S MANUAL
4 FILE MANAGEMENT FUNCTION
This chapter describes the method of operating the file management
function.
4.1 OVERVIEW
This section outlines the file management function.
Function overview
The major capabilities of the file management function are listed below.
- Starting CNC Setting Tool
- Management of data files operated by CNC Setting Tool on the personal
computer
- Downloading of data files operated by CNC Setting Tool to the CNC and
uploading data files from the CNC
- Setting of the data files operated by CNC Setting Tool to the memory card
and getting of data files from the memory card

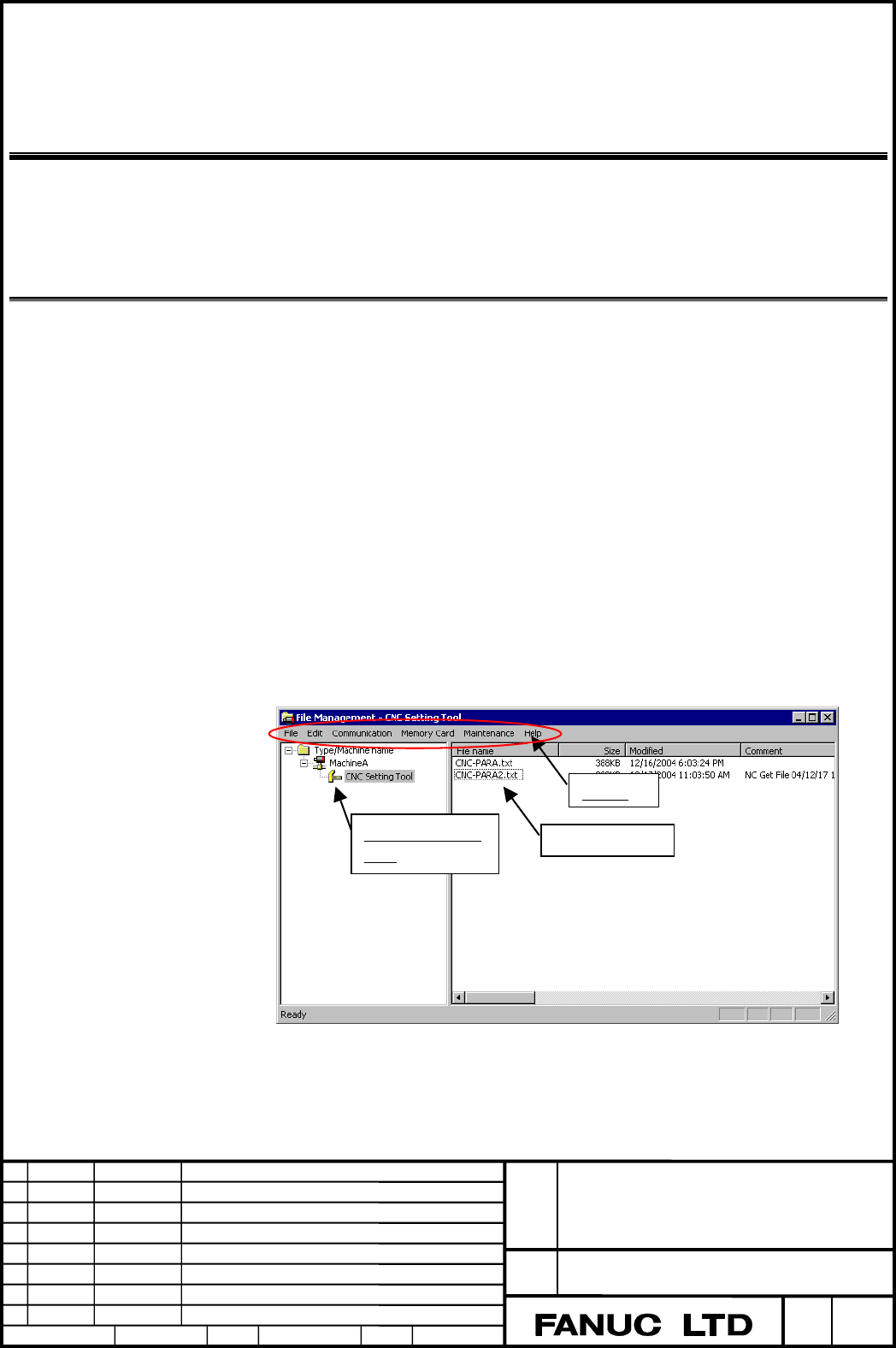

Names of the items of the screen
The items of the screen are described below.
Configuration
tree
Menu
File list
Previous page
Next page
