CNC Setting Tool Operators manual Page 74

Operators manual
3.OPERATION PROFIBUS CONFIGURATION TOOL B-64174EN/01
- 64 -

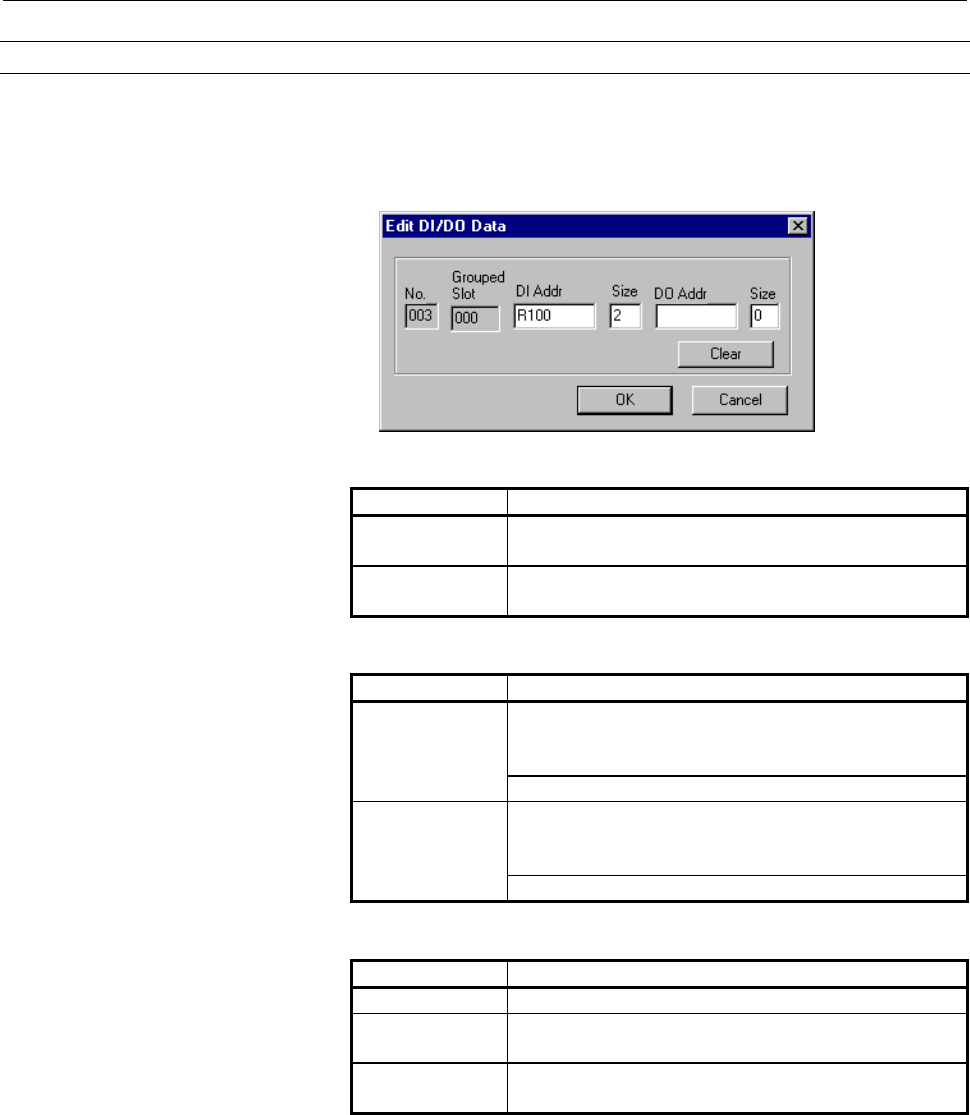

Editing DI/DO data
On the DI/DO Data screen, click the [Edit] button after selecting a
grouped slot from "Total Grouped Slots List". The Edit DI/DO Data
screen for the selected grouped slot is displayed.
Display item
Item Description
No. Displays a slave station number for which editing is to
be performed.
Grouped Slot Displays a grouped slot number for which editing is to
be performed.
Setting item
Item Description
Set a DI/DO address.
When the size is 0, you need not enter a DI/DO
address.
DI/DO Addr
Range: See CAUTION.
Set a DI/DO size.
A proper value is automatically input. So, usually, this
parameter need not be set.
DI/DO Size
Range: 0 to 244
Button
Item Description
Clear Clears all setting items on this screen.
OK Validates operations on this screen and closes this
screen.
Cancel Cancels operations on this screen and closes this
screen.
