3.2.12 Detail Slave Parameter Screen

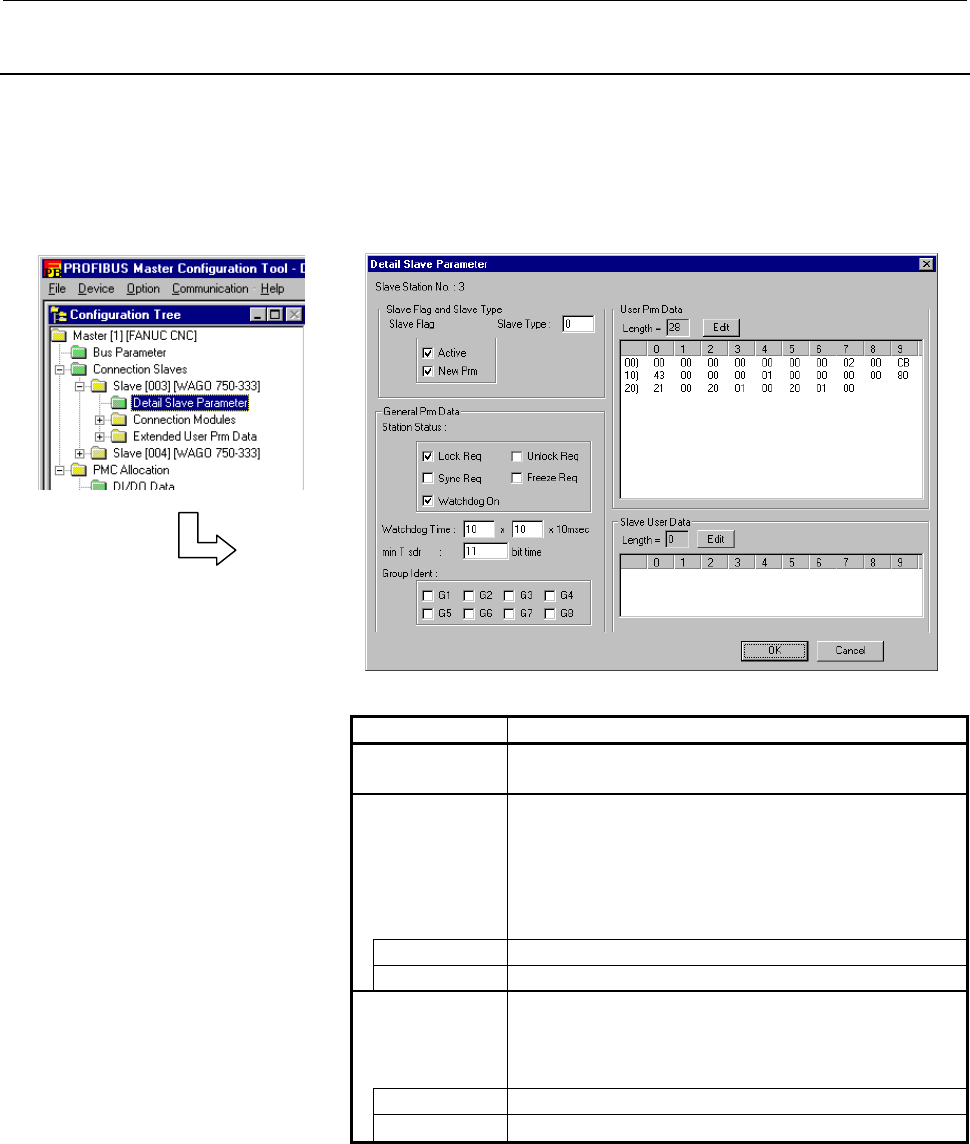

This subsection describes the Detail Slave Parameter screen.
Select and double-click <Connection Slaves>\<Slave [xxx]>\<Detail
Slave Parameter> in the configuration tree. The Detail Slave
Parameter screen is displayed. ("xxx" in Slave [xxx] represents a
slave station number.)
Display item
Item Description
Slave Station
No.
Displays the slave station number of the slave station.
User Prm Data Displays the extended user parameters of the slave
station.
The parameters represent "User Prm Data" of the
PROFIBUS standard, and need not be edited usually.
When editing extended user parameters, see the item
"Editing extended user parameters".
Length Displays the length of extended user parameter data.
(List box) Displays extended user parameter data.
Slave User Data Displays the slave user data of the slave station.
This data need not be edited usually.
When editing slave user data, see the item "Editing
slave user data".
Length Displays the length of slave user data.
(List box) Displays slave user data.
Previous page
Next page
