CNC Setting Tool Operators manual Page 70

Operators manual
3.OPERATION PROFIBUS CONFIGURATION TOOL B-64174EN/01
- 60 -

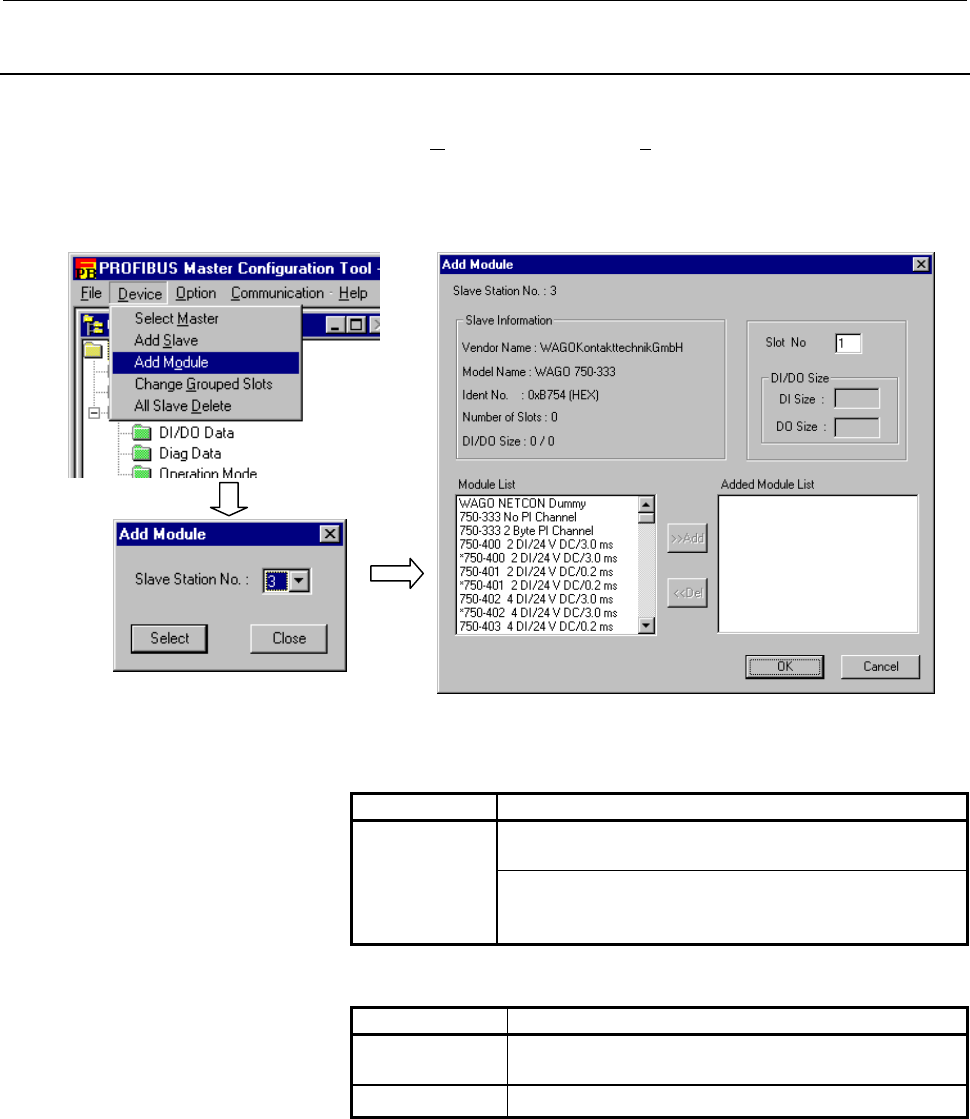

3.2.4 Add Module Screen
This subsection describes the Add Module screen.
Choose [D
evice] then [Add Module] from the menu. The Add
Module screen (slave selection) is displayed.
Before adding a module, select a slave station number on the Add
Module screen (slave selection).
Slave selection Addition
Setting item on the Add Module screen (slave selection)
Item Description
Select the number of a slave station where a module is
to be added.
Slave Station
No.
Range: 0 to 125
(Only a slave station number added on the Add
Slave screen can be selected.)
Button on the Add Module screen (slave selection)
Item Description
Select Displays the Add Module screen (addition) for a slave
station selected by "Slave Station No.".
Close Closes this screen.
