4.FILE MANAGEMENT FUNCTION PROFIBUS CONFIGURATION TOOL B-64174EN/01
- 110 -

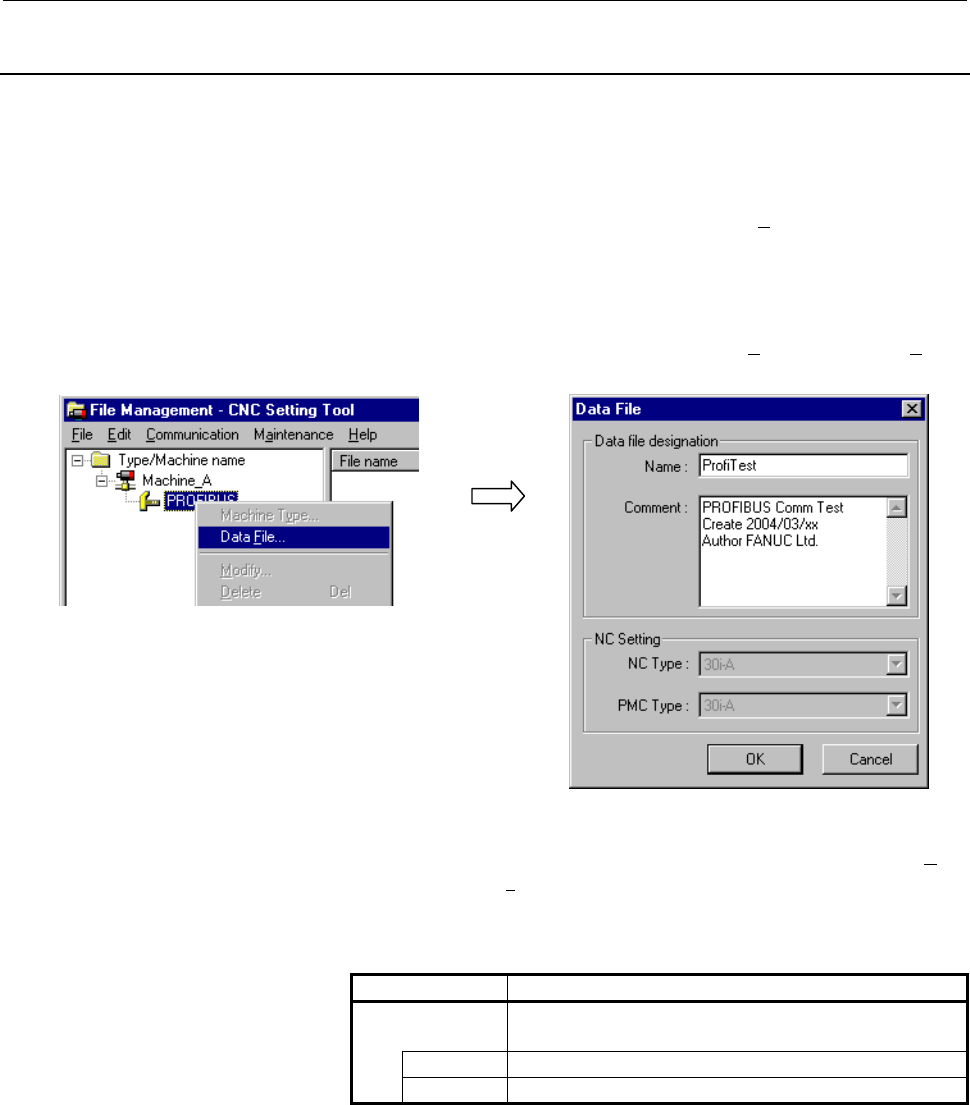

4.4.2 Data File Screen
This subsection describes the Data File screen.
• When making a new setting
Select and right-click <(configuration-tool)> (<Type/Machine
name>\<Machine_A>\<PROFIBUS> on the sample screen) in
the configuration tree then choose [Data F
ile...]. The Data File
screen is displayed.
The Data File screen can also be displayed by selecting
<(configuration-tool)> (<Type/Machine
name>\<Machine_A>\<PROFIBUS> on the sample screen) in
the configuration tree then choosing [F
ile] then [Data File...]
from the menu.
• When making a modification to "Comment"
Select a desired data file from the list of files and choose [E
dit]
then [Comme
nt...] from the menu. The Data File screen is
displayed.
Display item
Item Description
NC Setting Displays information about a CNC set on the Machine
Property screen.
NC Type Displays the type of the CNC.
PMC Type Displays the PMC type of the CNC.
