CNC Setting Tool Operators manual Page 47

Operators manual
B-64174EN/01 PROFIBUS CONFIGURATION TOOL 2.QUICK START
- 37 -
7 Choose [D

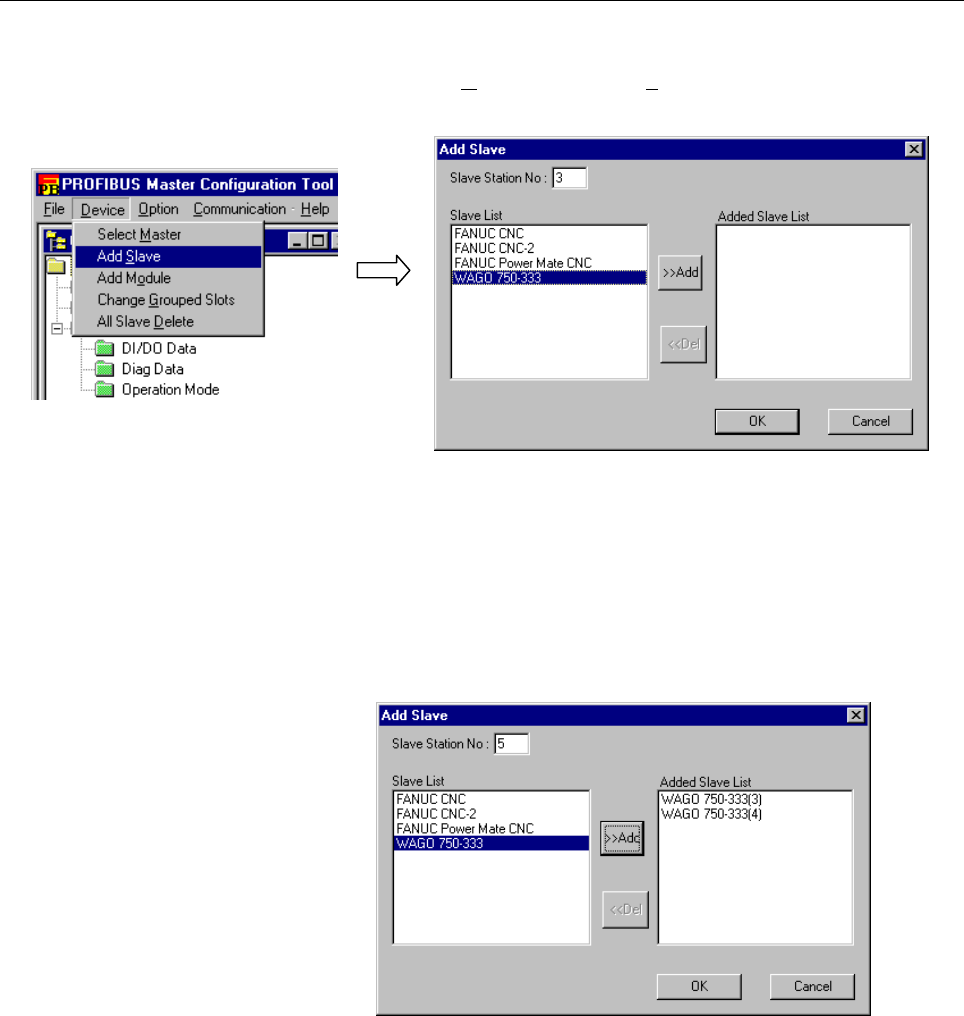

evice] then [Add Slave]. The Add Slave screen is
displayed.
Select a slave station to be engaged in communication from "Slave
List" then click [Add]. The slave station is added to "Added
Slave List".
A slave station number starting with 3 is automatically assigned.
When a different number is desired, specify the number in "Slave
Station No" (edit box) before clicking [Add].
In the example below, two stations of I/O module "750-333"
available from Wago are added.
A parenthesized number on the Added Slave List screen
represents a slave station number.
To quit the Add Slave screen, click [OK].
