CNC Setting Tool Operators manual Page 123

Operators manual
B-64174EN/01 PROFIBUS CONFIGURATION TOOL 4.FILE MANAGEMENT FUNCTION
- 113 -

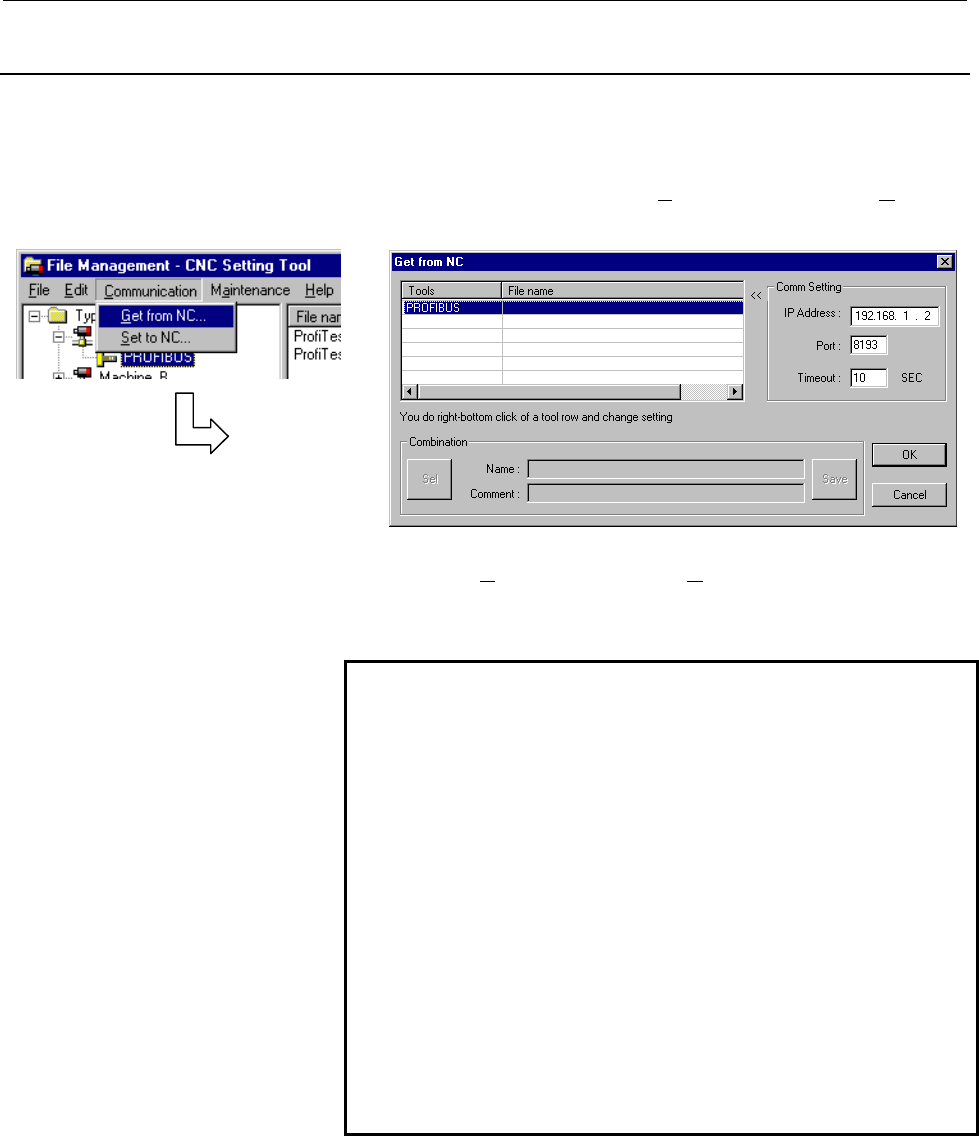

4.4.4 Get from NC Screen
This subsection describes the Get from NC screen.
Select <(configuration-tool)> (<Type/Machine
name>\<Machine_A>\<PROFIBUS> on the sample screen) in the
configuration tree then choose [C
ommunication] then [Get from
NC...] from the menu. The Get from NC screen is displayed.
If you choose [C
ommunication] then [Get from NC...] from the menu
after selecting a data file from the list of files, the data file is added to
the list box on the Get from NC screen.
NOTE
1 This operation assumes that the Ethernet function
on the personal computer is usable. Check that
the Ethernet function can be used on the personal
computer, and make a setting, if necessary, on the
personal computer.
2 If the communication parameters of the
PROFIBUS-DP master function are uploaded from
the CNC, a saved data file (extension: pmb) cannot
be edited. So, when using this function with the
communication parameters of the PROFIBUS-DP
master function, use this function for a backup
purpose only.
3 When the PROFIBUS software series is 6557/09 or
later or 655G, you can only back up slave
parameters (for up to 32 stations) that are set to
“ENABLE” on the CNC-side setting screen.
