5.4 CONFIGURING A SMALL-SCALE NETWORK

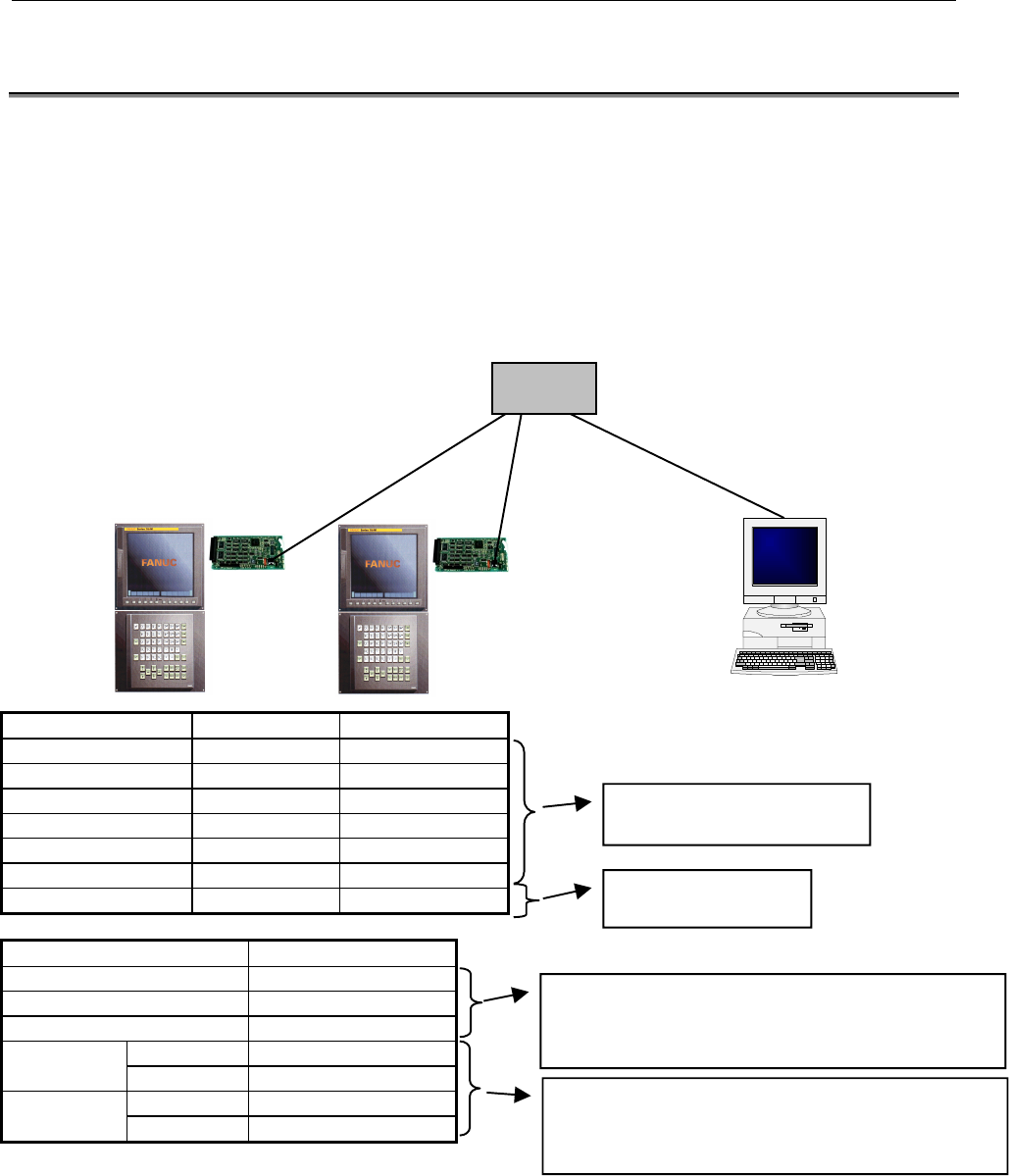

The following shows an example of the minimum settings needed to
run the FOCAS1/Ethernet functions on a small-scale network.
These settings allow a personal computer to be connected to two CNCs
by the FOCAS1/Ethernet functions.
• The FOCAS1/Ethernet function client runs on personal computer
No.1.
• The FOCAS1/Ethernet function server runs on CNCs No.1 and
No.2.
CNC No.1 CNC No.2
IP address 192.168.0.1 192.168.0.2
Subnet mask 255.255.255.0 255.255.255.0
Router IP address None None
TCP port No. 8193 8193
UDP port No. 0 0
Time interval 0 0
Parameter No.20 to 23 6 or 7 6 or 7
Personal computer No.1
IP address 192.168.0.101
Subnet mask 255.255.255.0
Default gateway None
IP address 192.168.0.1CNC No.1
Port number 8193
IP address 192.168.0.2CNC No.2
Port number 8193
Set these items on the
"Ethernet Parameter
"
Set this item on the
"Parameter
" screen.
Set these items in "Microsoft TCP/IP
Property" on the personal computer
(Windows95/98/NT/2000).
Specify these items with the arguments of the
data window library function
"cnc_allclibhnd13."
