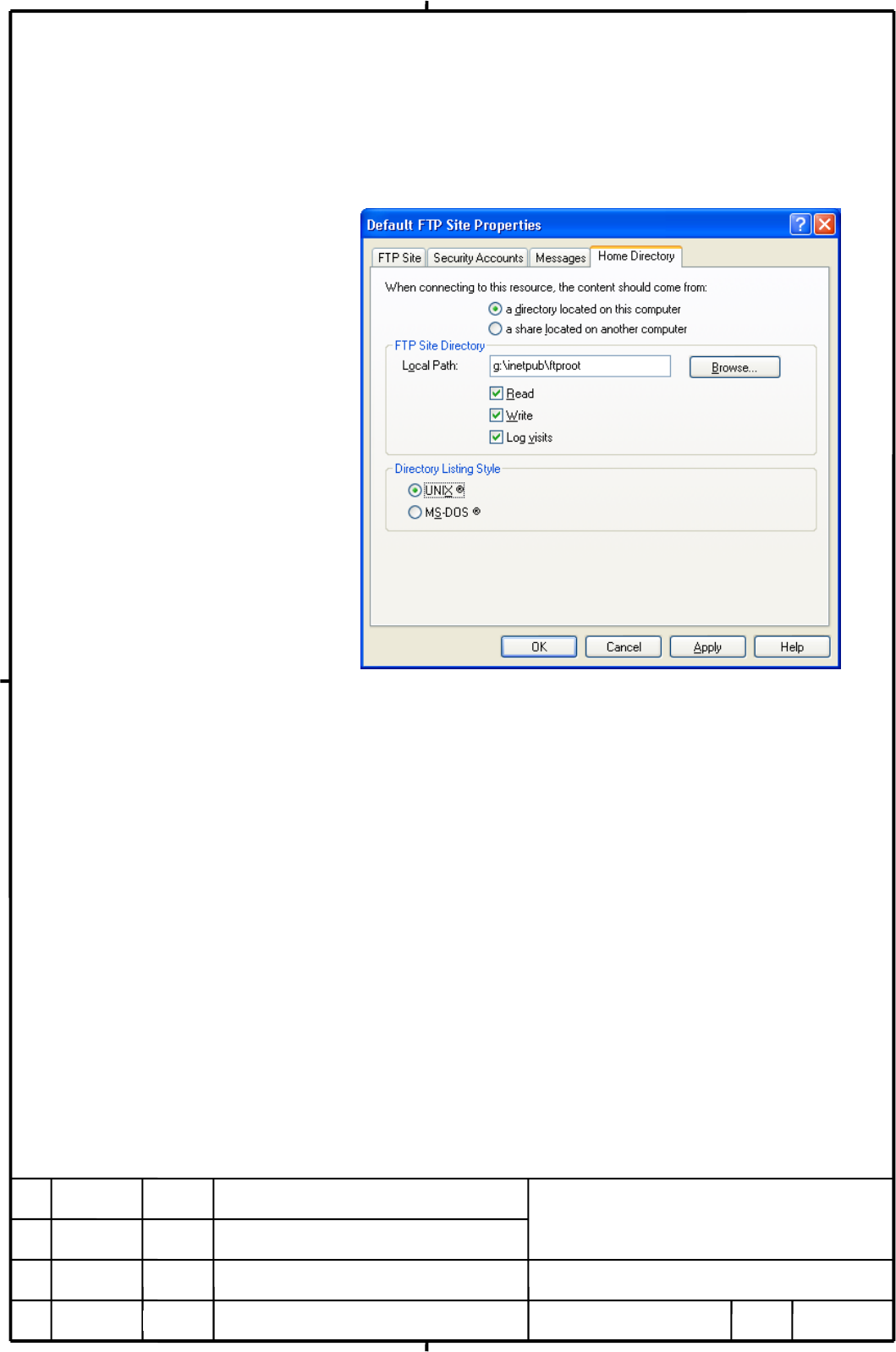

6. Select the [Home Directory] tab to display the [Home Directory]

property sheet.

Check [Read] and [Write] in [FTP Site Directory]. In [Directory

Listing Style], [MS-DOS] is selected by default. However, it is

recommended to check [UNIX]. If files are listed in UNIX format,

whether each file is accessible can be determined.

7. Upon completion of setting, click the [OK] button.

In the standard [Default FTP Site], the directory \Inetpub\ftproot

( on the drive where Windows XP Professional is installed) in the

[Local Path] is the home directory, and only the directories under

this directory can be accessed. So, with the default setting, NC

programs need to be managed under this directory. The home

directory can be changed by setting the new directory in the [Local

Path] of [FTP Site Directory].

8. To access a directory other than the directories under the home

directory, a virtual directory needs to be set.

For details of a vertual directory, use the online help information

of Windows XP Professional.
