B-63644EN/02 III. SETTING 2.DNC1/Ethernet FUNCTIONS FOR THE 16i/18i/21i/PMi
- 43 -

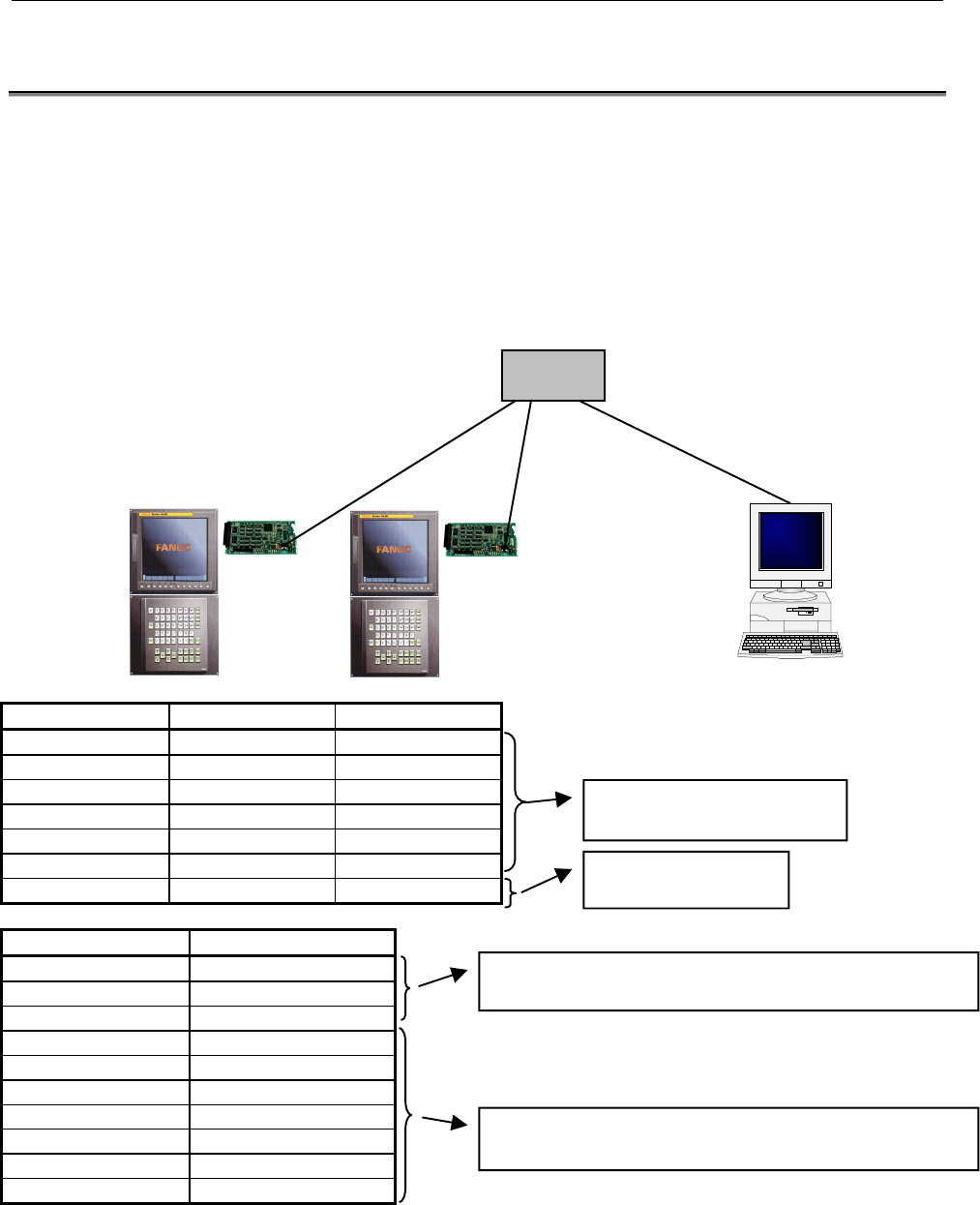

2.4 CONFIGURING A SMALL-SCALE NETWORK
The following shows an example of the minimum settings needed to
use the DNC1/Ethernet functions with a small-scale network.
These settings allow a personal computer to be connected to two CNCs,
using the DNC1/Ethernet functions.
• The DNC1/Ethernet function client runs on personal computer
No.1.
• The DNC1/Ethernet function server runs on CNCs No.1 and
No.2.
CNC No.1 CNC No.2
IP address 192.168.0.1 192.168.0.2
Subnet mask 255.255.255.0 255.255.255.0
Router IP address None None
TCP port No. 8193 8193
UDP port No. 8192 8192
Time interval 100 100
Parameter No.20 6 6
Personal computer No.1
IP address 192.168.0.101
Subnet mask 255.255.255.0
Default gateway None
FANUC_C4_SERVER 8192/udp
CNC No.1 Machine No. 1
NC IP address 192.168.0.1
NC TCP port number 8193
CNC No.2 Machine No. 2
NC IP address 192.168.0.2
NC TCP port number 8193
Set these items on the "Ethernet
Paramete
r
" screen.
Set these items in "Microsoft TCP/IP Property" on the personal
com
p
uter
(
WindowsNT
)
.
Refer to the "FANUC FA SYSTEM for PC WindowsNT version
OPERATOR'S MANUAL."
Set this item on the
"Paramete
r
" screen.
Personal computer
Personal computerPersonal computer
Personal computer
No.1
No.1No.1
No.1
CNC No.2
CNC No.2CNC No.2
CNC No.2
CNC No.1
CNC No.1CNC No.1
CNC No.1
100BASE-TX
100BASE-TX100BASE-TX
100BASE-TX
HUB
HUBHUB
HUB
