Fast Ethernet Board/Fast Data Server Operators manual Page 37

Operators manual
B-63644EN/02 III. SETTING 1.FACTOLINK FUNCTIONS FOR THE 16i/18i/21i
- 23 -

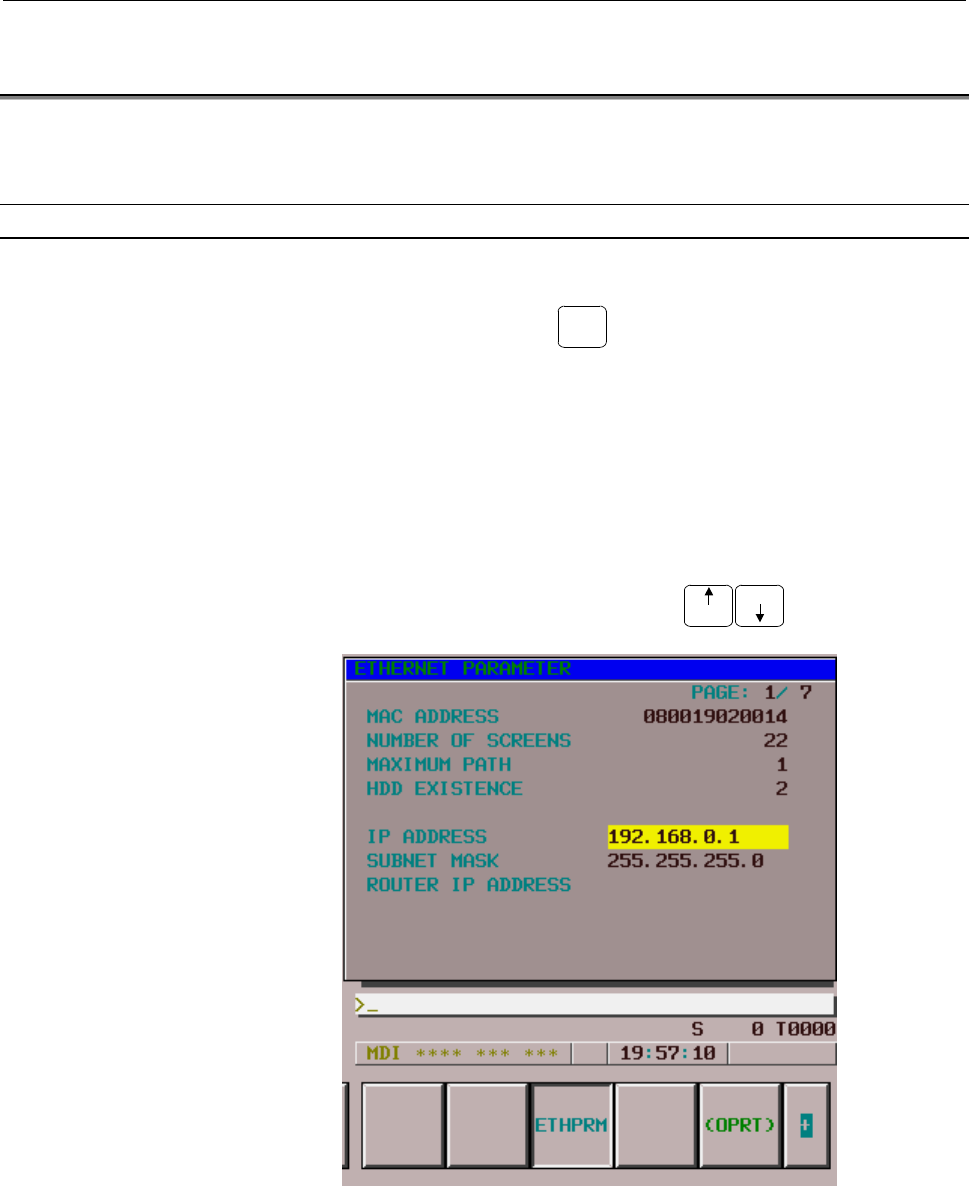

1.2 ETHERNET PARAMETER SCREEN
The Ethernet Parameter screen is used to set the parameters that are
needed to use the FACTOLINK functions.
Display
Procedure
1 Place the CNC in MDI mode.
2 Press function key
SYSTEM
.
3 Press the Continuation menu key at the bottom right of the soft
key menu.
4 When you press soft key [ETHPRM], the "Ethernet Parameter"
screen appears.
For the Series 16i/18i/21i -B, to display the "Ethernet Parameter"
screen, press soft key [ETHPRM] and then soft key [BOARD].
If parameters have already been registered, those parameter
settings are displayed.
5 Enter or update the data using the MDI or soft keys.
6 Select the desired page using the
PAGE
PAGE
page keys.
Previous page
Next page
