Fast Ethernet Board/Fast Data Server Operators manual Page 251

Operators manual
B-63644EN/02 IV. OPERATION 6.15i
i i
i DATA SERVER FUNCTIONS
- 237 -
C. Cursor
Position the cursor to the transfer source file.
Press soft key [(CURSOR)].

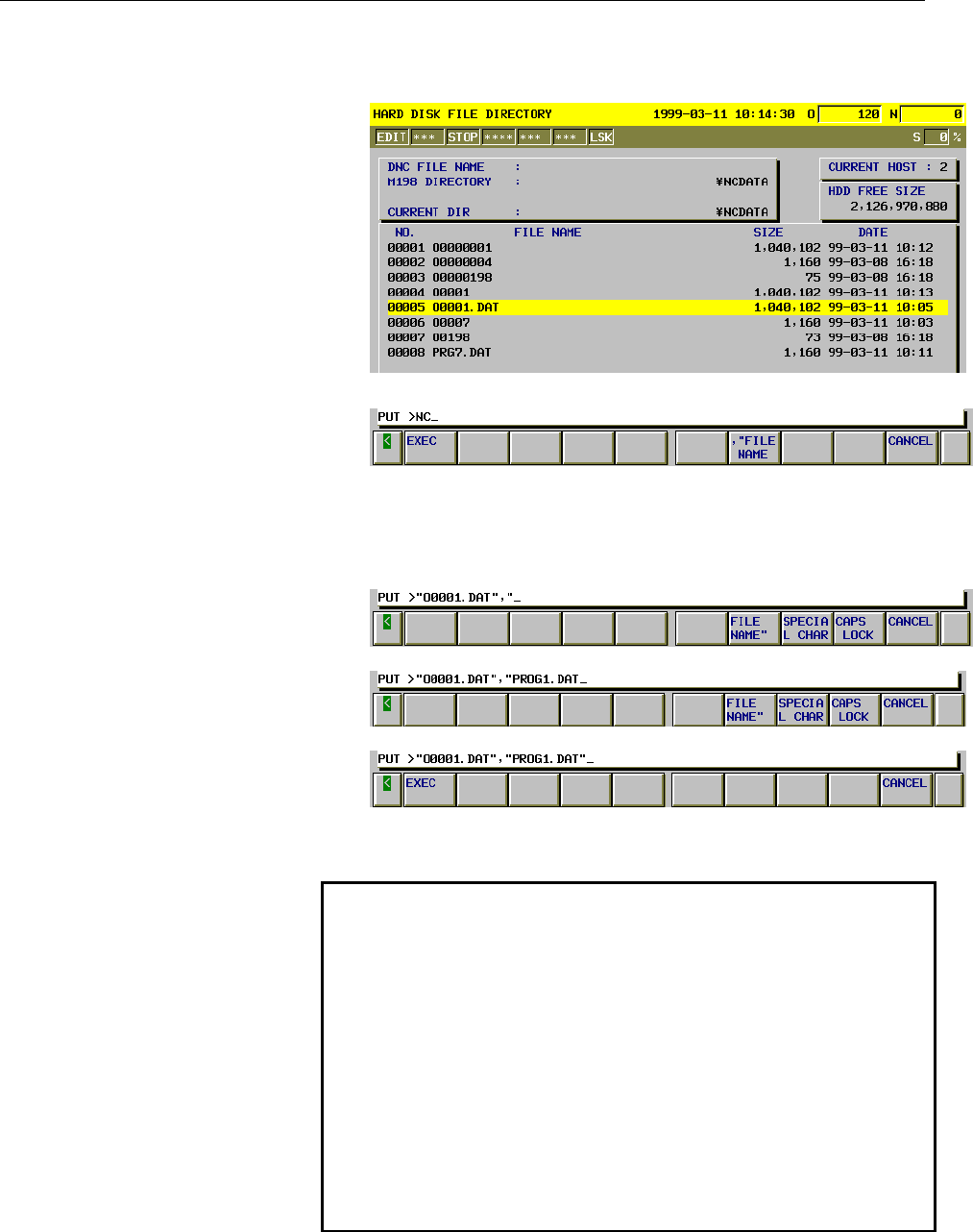

3. Enter the transfer destination file name. If the transfer destination
name is omitted, the transfer source file name is used.
Press soft key [,"FILE NAME].
Press file name PROG1.DAT.
Press soft key [FILE NAME"].
4. Press soft key [EXEC].
NOTE
1 The transfer destination file name can be omitted. In
this case, it becomes the transfer source file name.
2 If an error occurs, check the cause of the error by
referencing the Ethernet Error Message screen.
3 Specifying a file to be transferred with a file number is
valid only for those files displayed on the Hard Disk
File Directory screen.
4 When files are being transferred, and soft key
[STOP] is pressed, those files which had not been
completely transferred when soft key [STOP] was
pressed may remain on the host computer built-in
hard disk.
