4.7 DNC OPERATION BY A SUBPROGRAM CALL (M198)

Format for calling a subprogram from the main program

(1) For Series 15 command format

M198P∆∆∆∆Lxxxx;

∆∆∆∆ : NC program number on the data server side

(4-digit numeral following O of the O number)

xxxx: Repetition count (1 to 9999) (optional, default: 1)

(2) For a format other than the Series 15 command format

M198Pxxxx∆∆∆∆;

∆∆∆∆ : NC program number on the data server side

(4-digit numeral following O of the O number. In this

case, always use 4 digits.)

xxxx: Repetition count (1 to 9999) (optional, default: 1)

The items relating to the M198 command conform to the program call

function within general external input/output equipment. For details,

Refer to the corresponding CNC operator's manual.

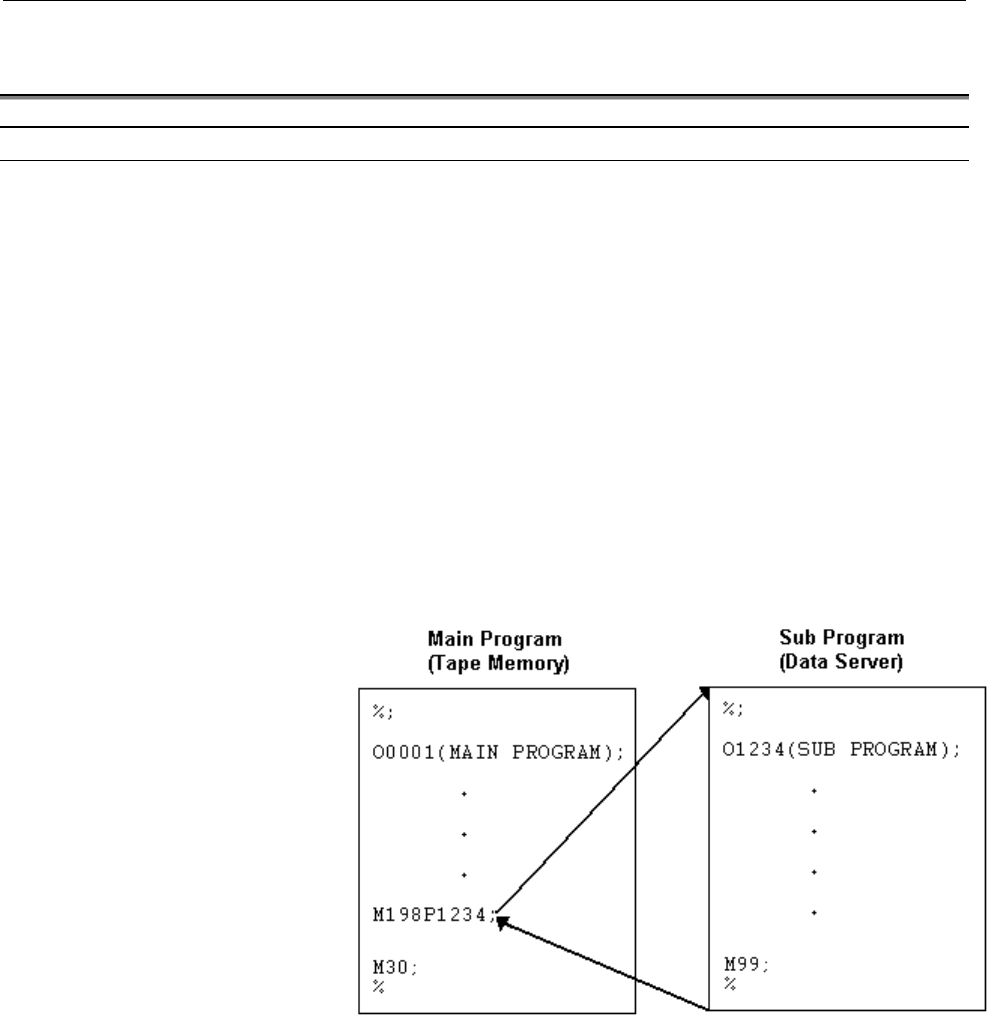

Example: For the Series 15 command format
