4.DATA SERVER FUNCTIONS FOR THE 16i/18i/21i III. SETTING B-63644EN/02

- 58 -

4.2 ETHERNET PARAMETER SCREEN

The Ethernet Parameter screen is used to set the parameters that are

needed for the data server functions.

Display

Procedure

1 Place the CNC in MDI mode.

2 Press function key

SYSTEM

3 Press the Continuation menu key at the bottom right of the soft

key menu.

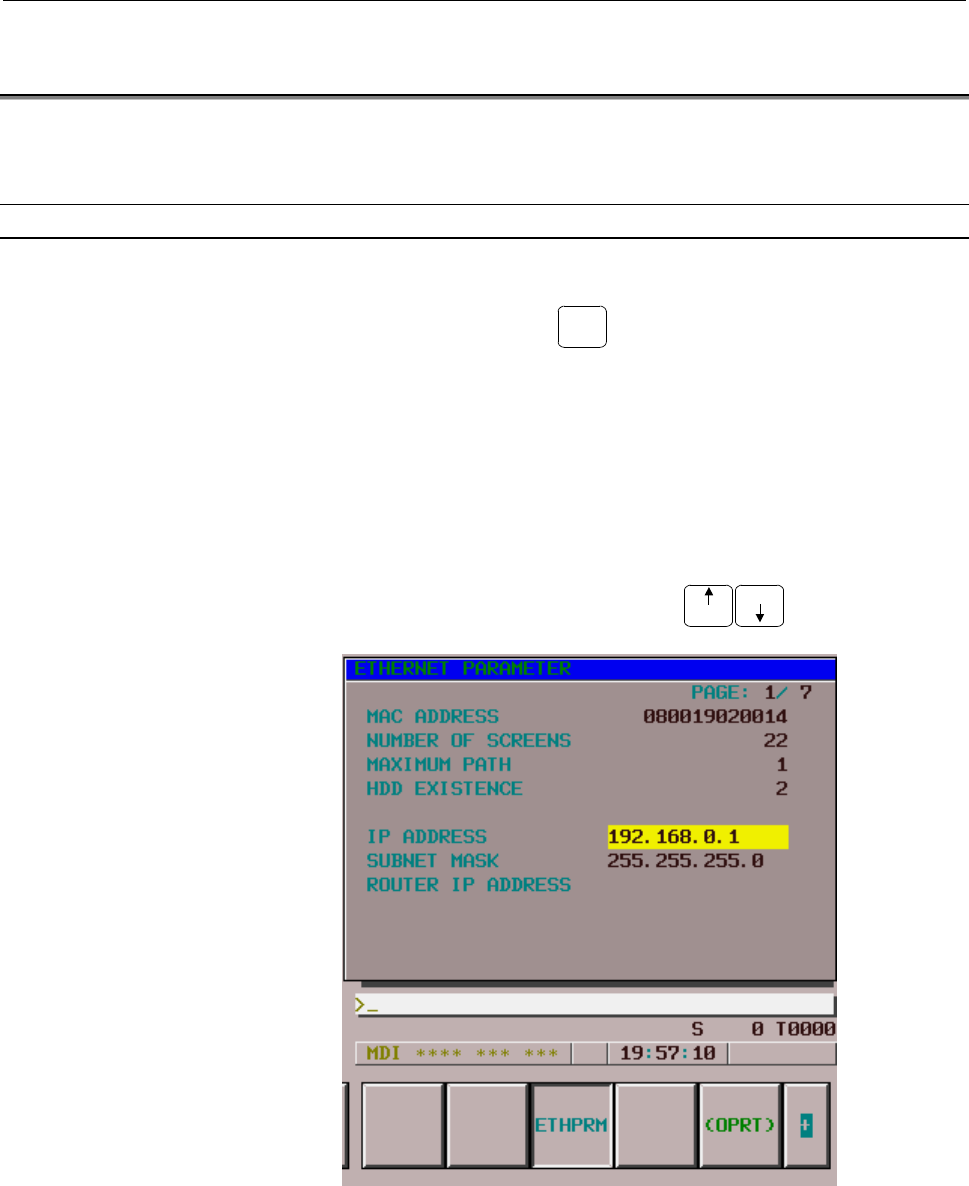

4 When you press soft key [ETHPRM], the "Ethernet Parameter"

screen appears.

For the Series 16i/18i/21i -B, to display the "Ethernet Parameter"

screen, press soft key [ETHPRM] and then soft key [BOARD].

If parameters are already registered, the parameter settings are

displayed.

5 Enter or update the data using the MDI or soft keys.

6 Select the desired page using the

PAGE

page keys.
