TITLE

Addition of Machine Remote Diagnosis

and Unsolicited Message

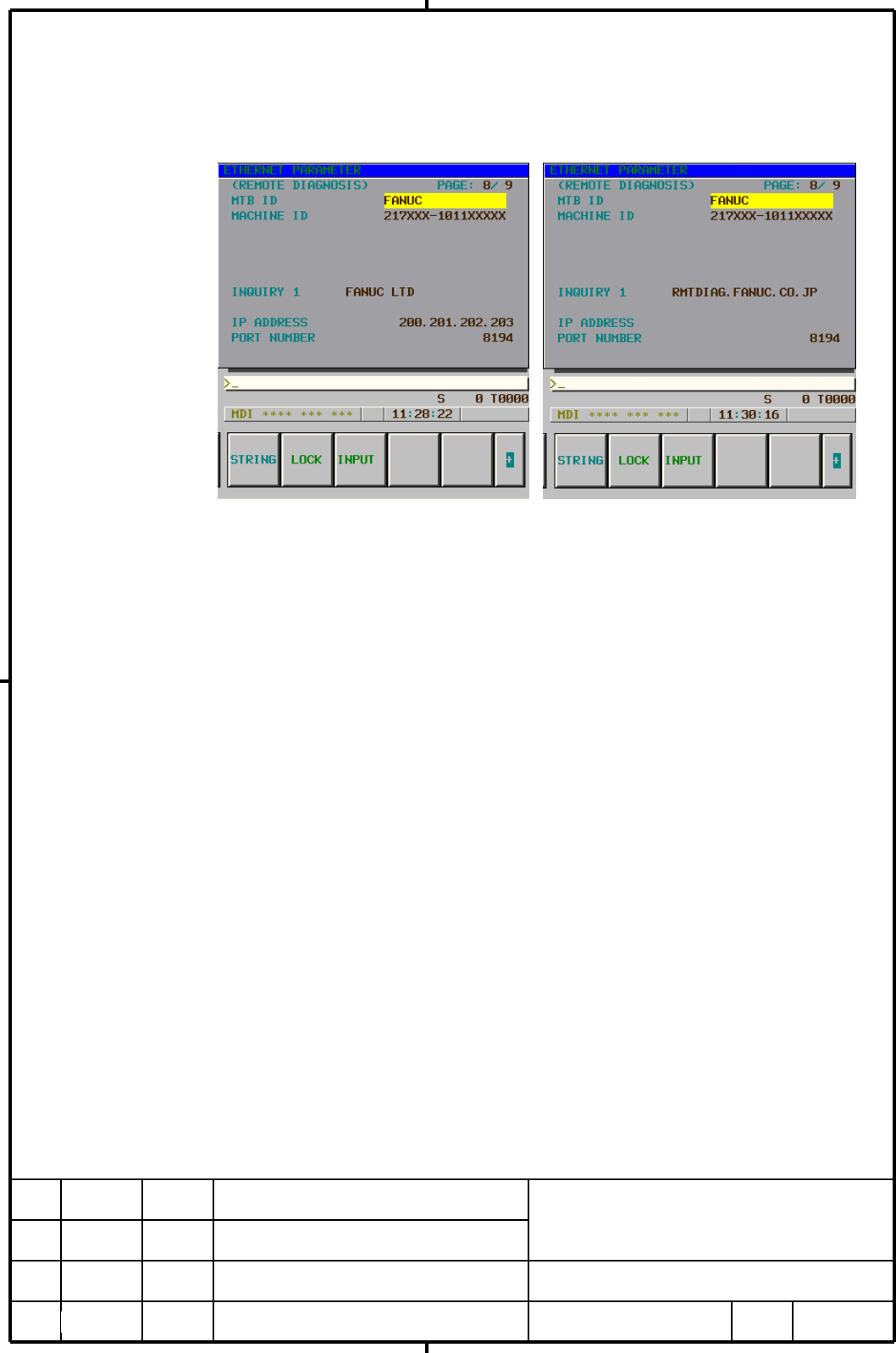

2.2. Parameter screen of Machine Remote Diagnosis

Press function key [SYSTEM] and then soft key [ETHPRM]. The following screen will appear.

Case that DNS is not available Case that DNS is available

MTB ID

With this information, Machine Remote Diagnosis Package of PC confirms that

CNC belongs to the specified MTB’s machine tool.

MTB ID enables Machine Remote Diagnosis Package of PC to accept the

diagnosis request from only the specified MTB’s machine tool.

MACHINE ID

With this information, Machine Remote Diagnosis Package of PC can

distinguish a machine tool (CNC) from others .

INQUIRY

CNC can configure the three addresses of remote the package of PCs in

advance.

(1) When the DNS function is not available, an IP address and port number

need to be configured as the address of Machine Remote Diagnosis

Package.

In that case, the inquiry item is merely used for comments. It does not affect

actual communication.

(2) When the DNS function is available, an domain name and port number

need to be configured as the address of Machine Remote Diagnosis

Package.

The domain name is inputted to the inquiry item.

In that case, the value of the IP address is ignored.

SHEETDESCRIPTIONDESIGN DATE EDIT

02.06.21

Mutai First issue

B-63644EN/02-3

FANUC LTD.
