6.10 FTP SERVER FUNCTIONS

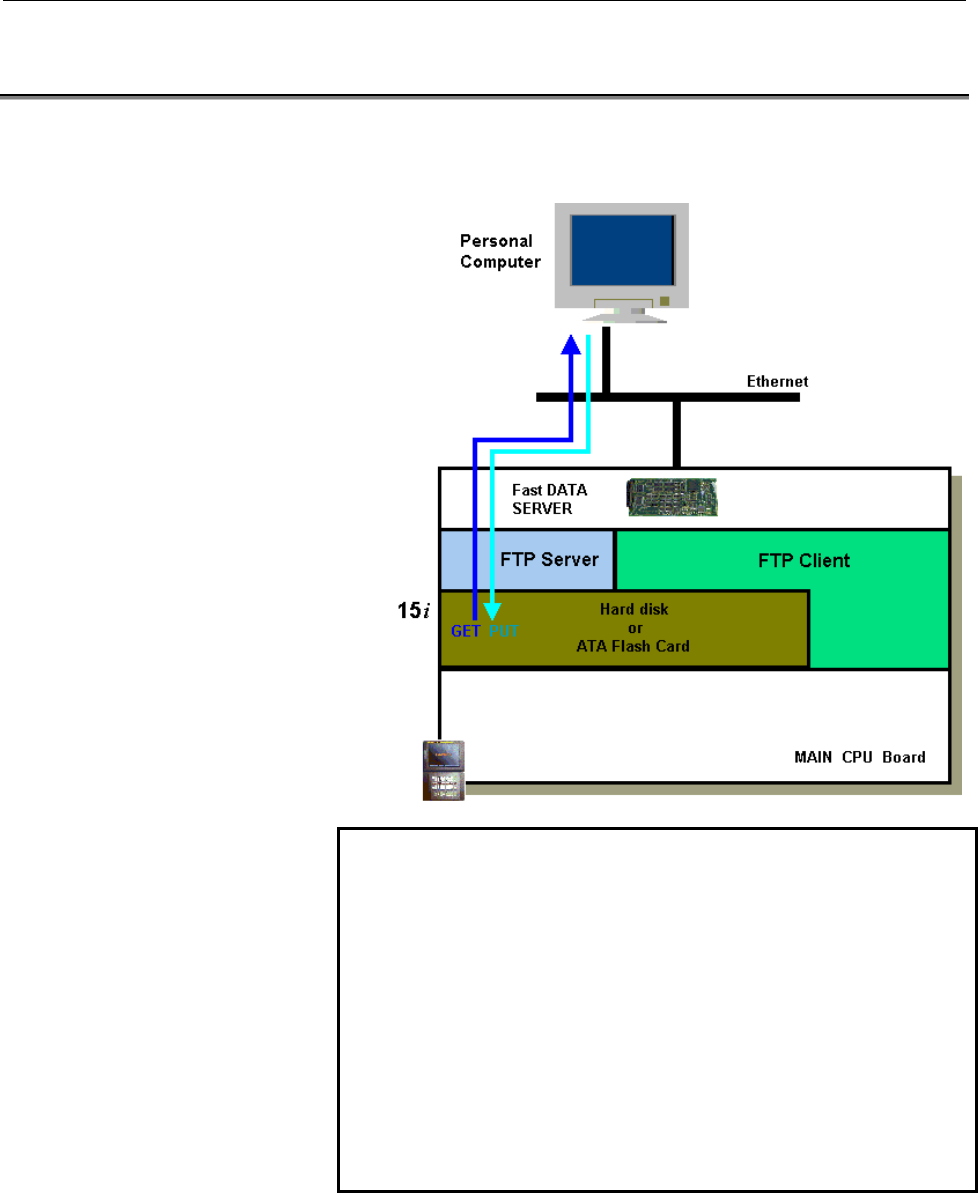

Communication can be established with the FTP client which is
running on the host computer (personal computer).
NOTE
1 Five FTP clients can be connected to the FTP server.
However, some FTP client software may internally
attempt to connect two or more FTP clients to the
FTP server at the same time. So, note that there may
be a mismatch with the number of connectable FTP
client applications.
2 If the FTP client specifies a non-8.3-format file for
registration with the FTP server, it is registered using
an 8.3-format file name obtained from automatic
conversion. See Subsection 6.1.5, "Hard Disk File
Names," for explanations about the rules for
converting file names to 8.3-format file names.
