B-63644EN/02 VI. MAINTENANCE 1.Series 16i/18i/21i, Power Mate i MAINTENENCE INFORMATION

- 333 -

1.3 FAST DATA SERVER FOR STAND-ALONE TYPE CNC

This section describes the maintenance information for the Fast data

server for Stand-alone type Series 16i/18i/21i-A/B.

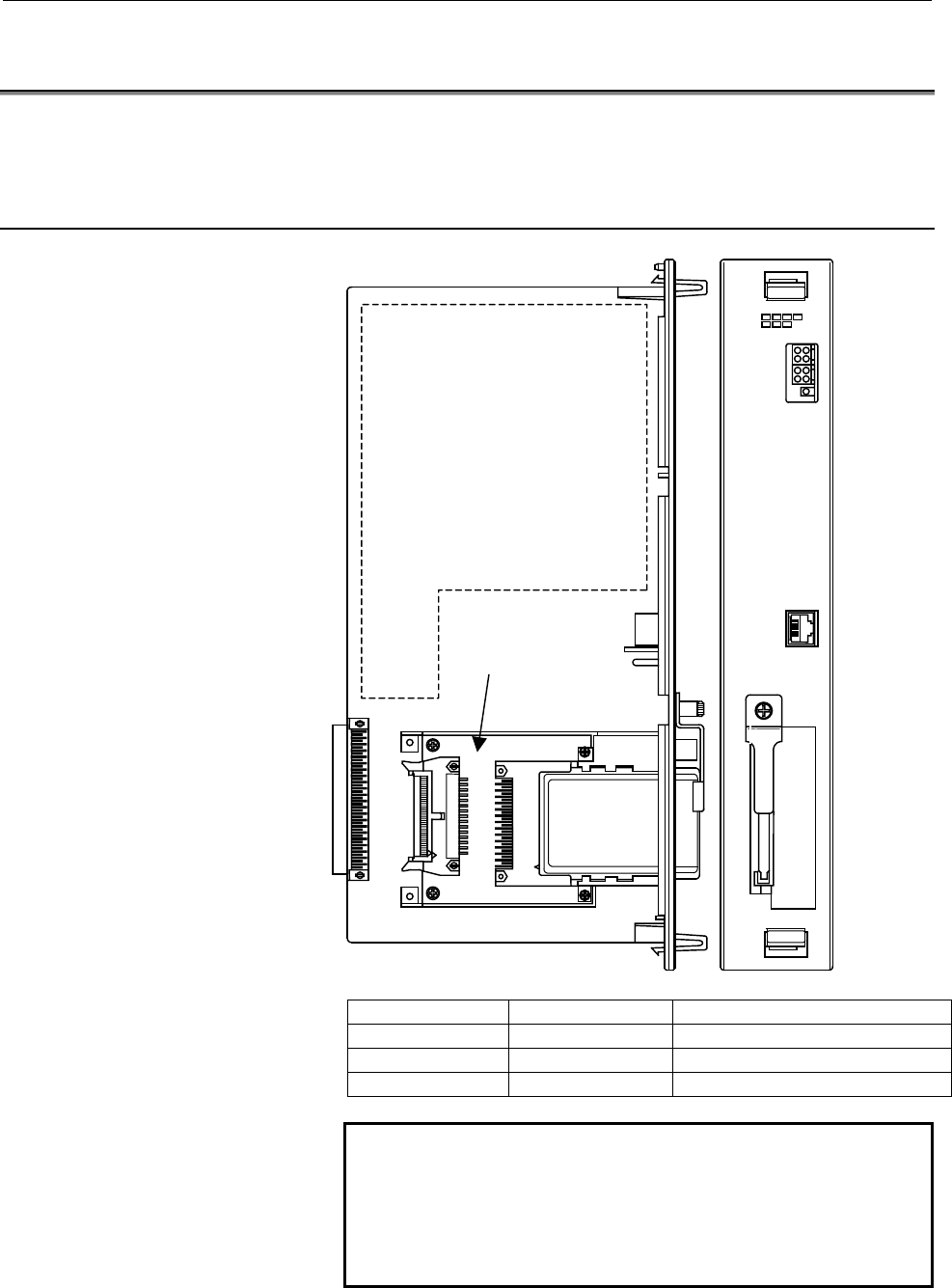

1.3.1 Component Layout

RISC option board

to be mounted.

CD38T

CNH6L

ATA Card Adapter

CNH5

Name Specification Remarks

Fast data server A16B-3200-0460 RISC option board installed

Fast data server A16B-3200-0462 RISC option board not installed

ATA Card Adapter A20B-2100-0560

NOTE

The Fast data server consists of a Fast Ethernet

board and ATA card adapter.

The ATA Card Adapter is mounted on the Fast

data server. A flat cable is used for the connection

between the adapter and the board.
