Fast Ethernet Board/Fast Data Server Operators manual Page 311

Operators manual

Page of 532

/ 532

B-63644EN/02 V. CONNECTION 3.INSTALLATION

- 297 -

3.1 LCD-MOUNTED TYPE Series 16i

i/18i

i/21i

i-A/B

This section provides information on installing the Fast Ethernet board

and Fast data server in the LCD-mounted type Series 16i/18i/21i-A/B.

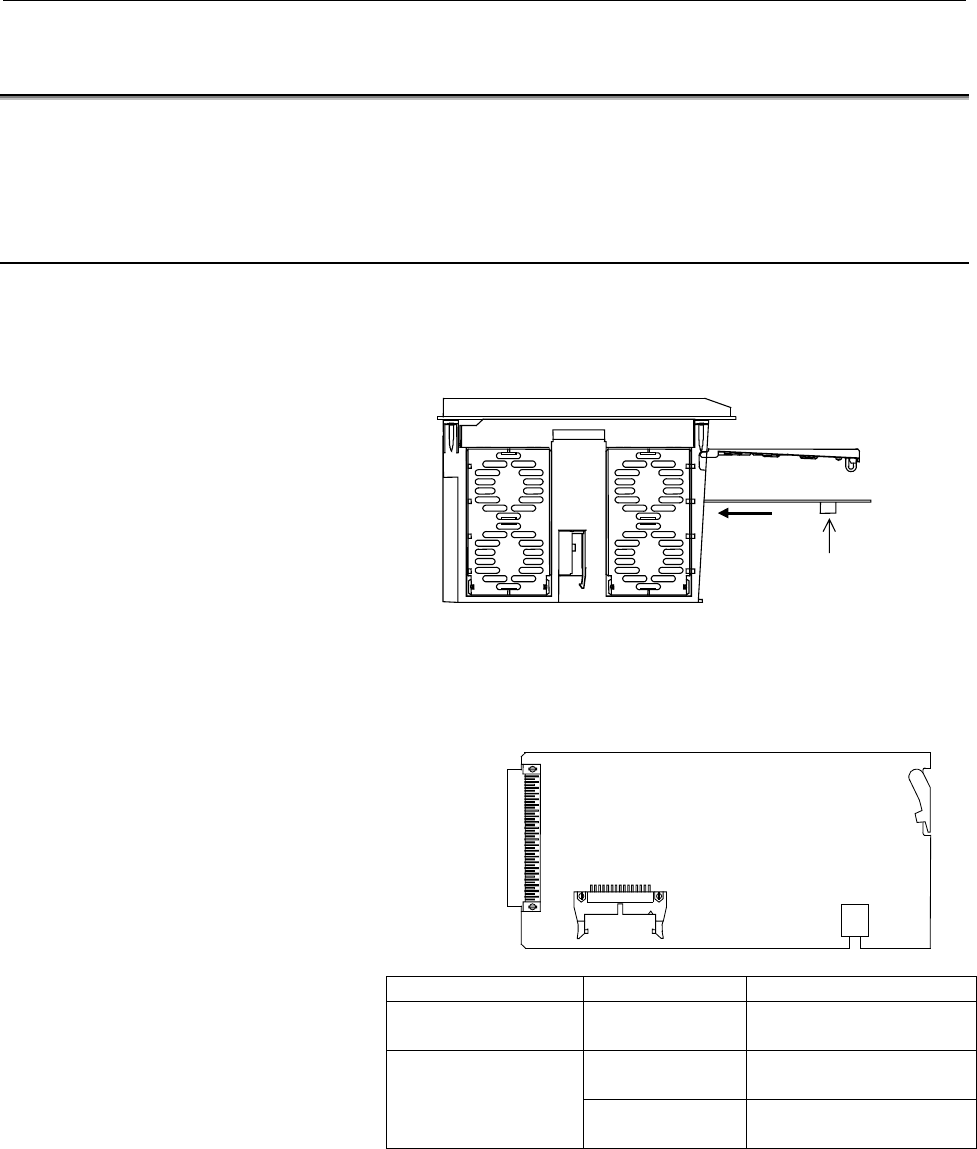

3.1.1 Installing an Board

An option board such as the Fast Ethernet board and Fast data server is

installed in an option slot of the control unit. It occupies one slot. Some

types of interface boards can be installed only in certain option slots.

Option board

1) Installing an Fast Ethernet board

There is a restriction related to the Ethernet board. The ethernet

board cannot be installed in the following slots:

- Slot nearest to the LCD

Drawing number Remarks

Board drawing

number

A20B-8100-0770 CNH4(IDE) installed

A02B-0236-J293

For Series 16i/18i/21i-A

CNH4(IDE) installed

Order specification

A02B-0281-J293

For Series 16i/18i/21i-B

CNH4(IDE) installed

CNH4(IDE)

CD38R
