Fast Ethernet Board/Fast Data Server Operators manual Page 356

Operators manual
1.Series 16i/18i/21i, Power Mate i MAINTENENCE INFORMATION VI. MAINTENANCE B-63644EN/02
- 342 -

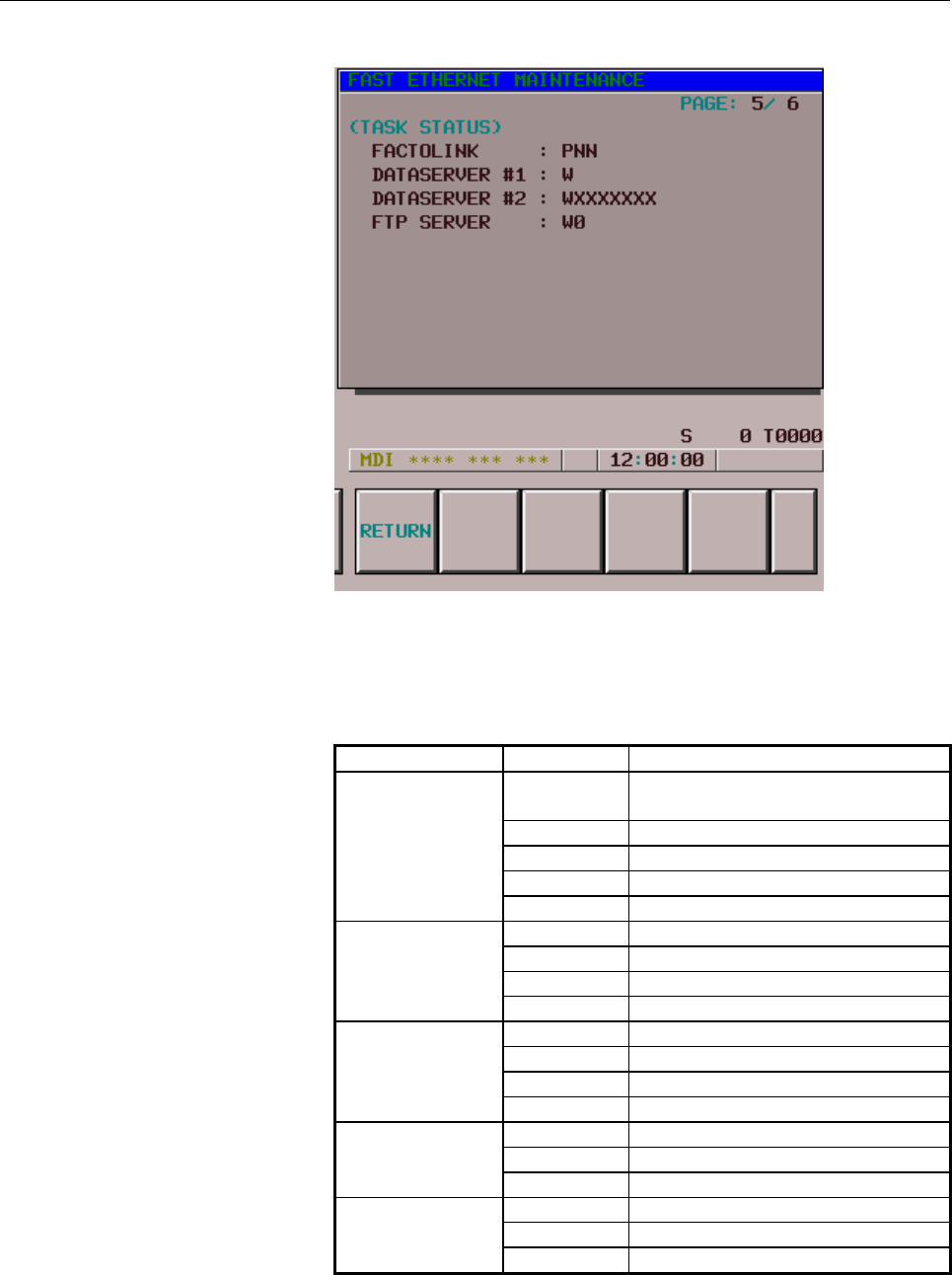

For a function that can operate multiple tasks simultaneously (for
example, the FOCAS1/Ethernet function can execute up to 20 tasks
simultaneously), the status of each task is indicated. The table below
indicates the meaning of each symbol.
Symbol Meaning
C
Waiting for connection from the
personal computer
W Waiting for data reception
S Data being transmitted
K Subtask being activated
FOCAS1 #0
N FOCAS1/Ethernet execution disabled
W Waiting for data reception
S Data being transmitted
D Data being processed
FOCAS1 #1,#2
X Not executed yet
W Waiting for data reception
S Data being transmitted
D Data being processed
SCREEN #1,#2
X Not executed yet
W Waiting for data reception
S Data being transmittedPMC
X Not executed yet
W Waiting for data transmission
S Data being transmittedUDP
X Not executed yet
