Fast Ethernet Board/Fast Data Server Operators manual Page 316

Operators manual

Page of 532

/ 532

3.INSTALLATION V. CONNECTION B-63644EN/02

- 302 -

3.2 STAND-ALONE TYPE Series 16i

i/18i

i/21i

i-A/B, Series 15i

i-B,

Power Mate i

This section provides information on installing the Fast Ethernet board

and Fast data server board in Stand-alone type Series 16i/18i/21i-A/B,

Series 15i-B, and Power Mate i.

NOTE

In the Power Mate i series, only the Fast Ethernet

board can be connected.

3.2.1 Installing an Board

Since the Fast Ethernet board is shaped differently from Fast data

server, both these boards can be installed only in certain option slots.

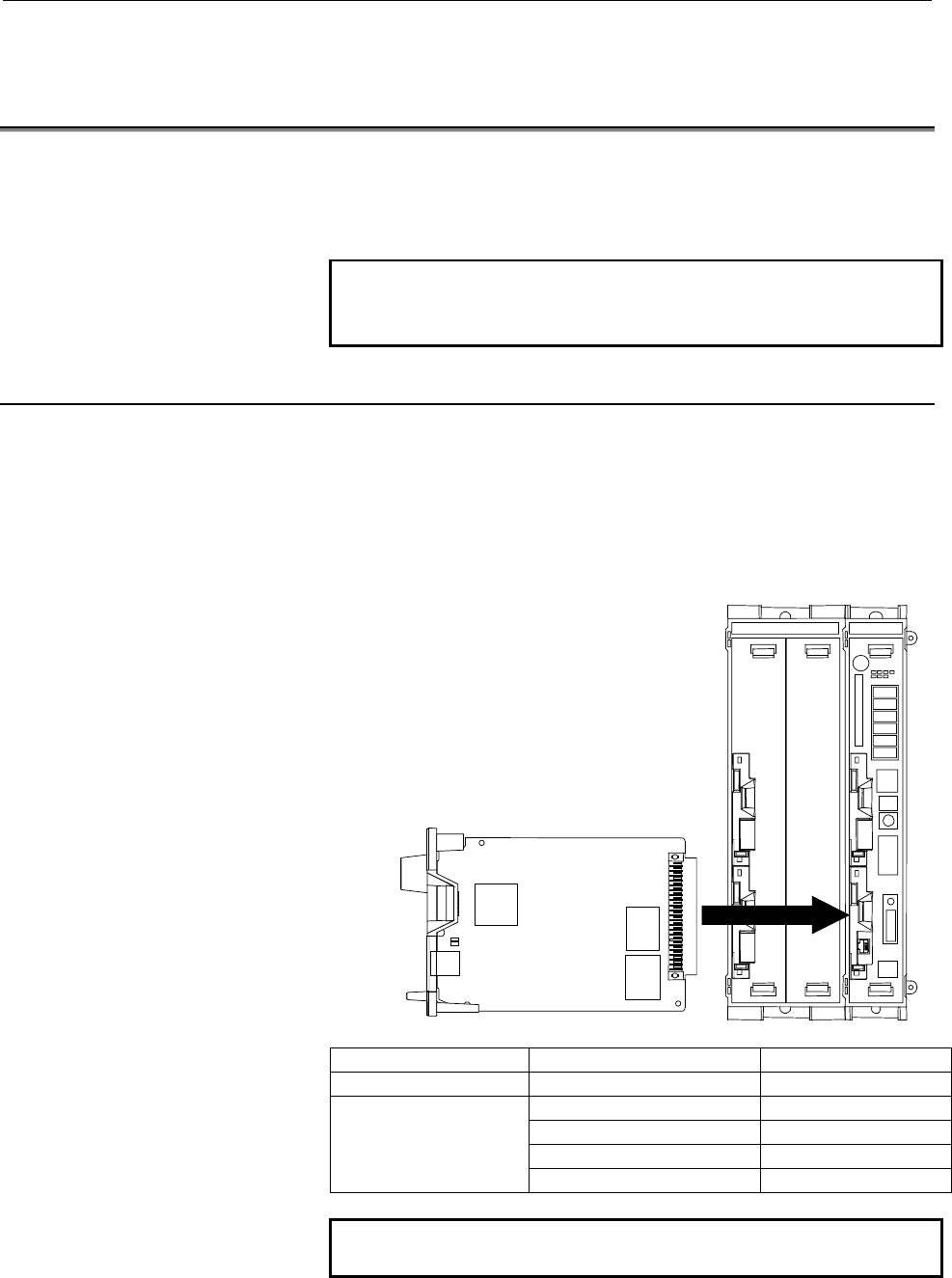

1) Installing an Fast Ethernet board

The Fast Ethernet board can be installed in a mini slot of the

one-slot or three-slot basic unit. It can be installed in any mini slot.

CD38R

Drawing number Remarks

Board drawing number

A20B-8100-0670

A02B-0265-J293

Series 16i/18i/21i-A

A02B-0281-J299

Series 16i/18i/21i-B

A02B-0298-J152

Series 15i-B

Order specification

A02B-0259-J293

Power Mate i

NOTE

This board cannot use the data server function.
