B-63644EN/02 VI. MAINTENANCE 1.Series 16i/18i/21i, Power Mate i MAINTENENCE INFORMATION

- 339 -

1.5 HOW TO INVESTIGATE THE COMMUNICATION LINE

STATUS

You can learn the communication line status by investigating the state

of the communication LSI on the Fast Ethernet board/Fast data server.

You can confirm this state in the Ethernet Maintenance screen.

Follow the procedure below to investigate the communication line

status.

Procedure

(1) Press function key

SYSTEM

(2) Press soft key [CONT] at the bottom right of the soft key menu.

(3) Press soft key [ETHMNT] to display the Ethernet maintenance

screen.

With the Series 16i/18i/21i-B, press soft key [ETHMNT] then soft

key [BOARD] to display the Ethernet maintenance screen.

(4) Switch the screen display with page key

PAGE

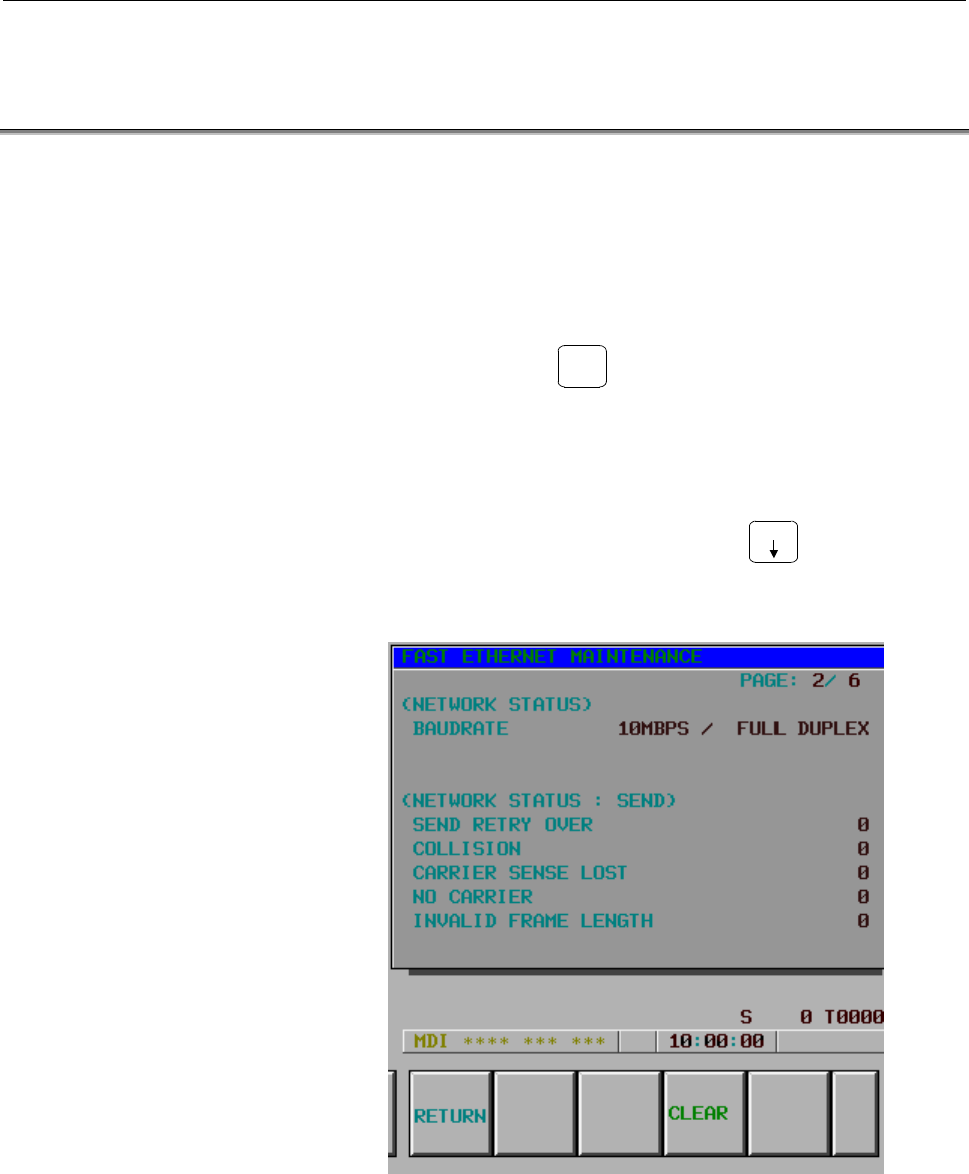

(5) The screen for checking the state of communication using the

Ethernet function and the number of errors detected by the

Ethernet controller is displayed.
