B–63835EN/03
1. DISPLAY AND OPERATION
89
Pressing the [SATART] soft key starts data sampling. While sampling
is being performed, SAMPLING blinks at the top of the screen. Once data
sampling has been completed, a waveform is automatically displayed.

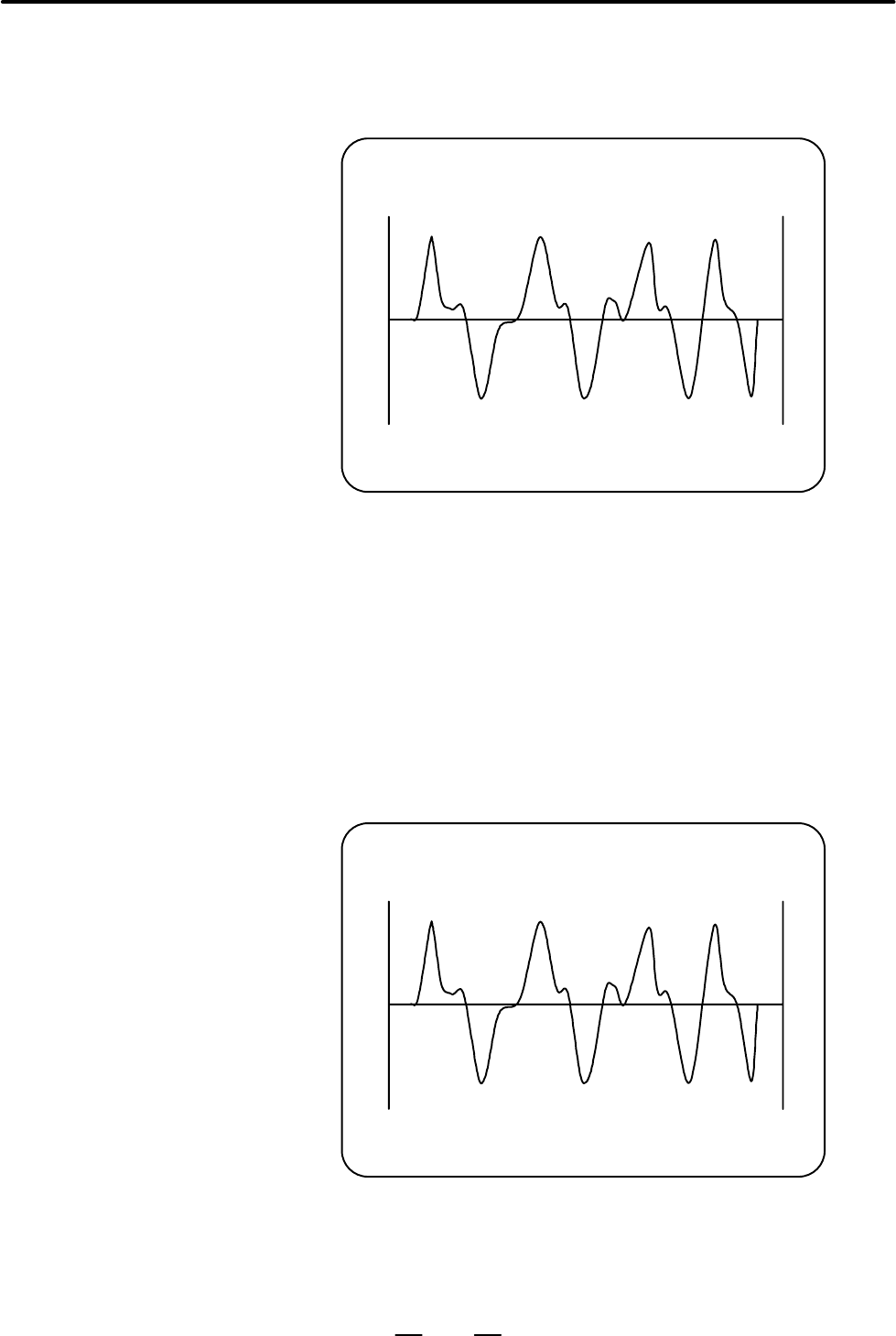

WAVE DIAGNOS. (GRAPHIC) O1234 N12345
CH1 CH2
[START] [TIME³] [²TIME] [H–DOBL] [H–HALF]
EDIT **** ******
To use storage type waveform diagnosis, set 100 for the display start
condition. The maximum data width for storage type waveform diagnosis
is 32760 ms. Data must be sampled before starting drawing. The next
page explains sampling in detail.
Pressing the [START] soft key loads stored data. While the data is being
loaded, SAMPLING blinks at the top of the screen. Once the data has
been loaded, a waveform is displayed. The date on which the data was
stored is displayed at the top left of the screen. If the [START] soft key
is pressed while data is being stored, storage is stopped and the waveform
for the data stored up to that point is displayed. The WAVE DIAGNOS.
(MEMORY) screen indicates whether data is being stored.
[START] [TIME³] [²TIME] [H–DOBL] [H–HALF]
WAVE DIAGNOS. (GRAPHIC) O1234 N12345
CH197/01/13 12:15:00 CH2
EDIT **** ******
D Drawing a waveform for
storage type waveform
diagnosis
