B–63835EN/03

6. DIGITAL SERVO

417

Additional Information

Even if replacement is performed reasonably such as for

repairing, this function incorrectly indicates the * mark when

it detects the replacement.

To clear the * mark, follow the steps below to update the

registered data, as described in the editing section later.

(1)Make the registered data editable. (Parameter IDW (No.

13112#0) = 1)

(2)On the edit screen, place the cursor on the item from

which you want to delete the * mark.

(3)Operate the soft keys [CHANGE], [INPUT], and [SAVE]

in that order.

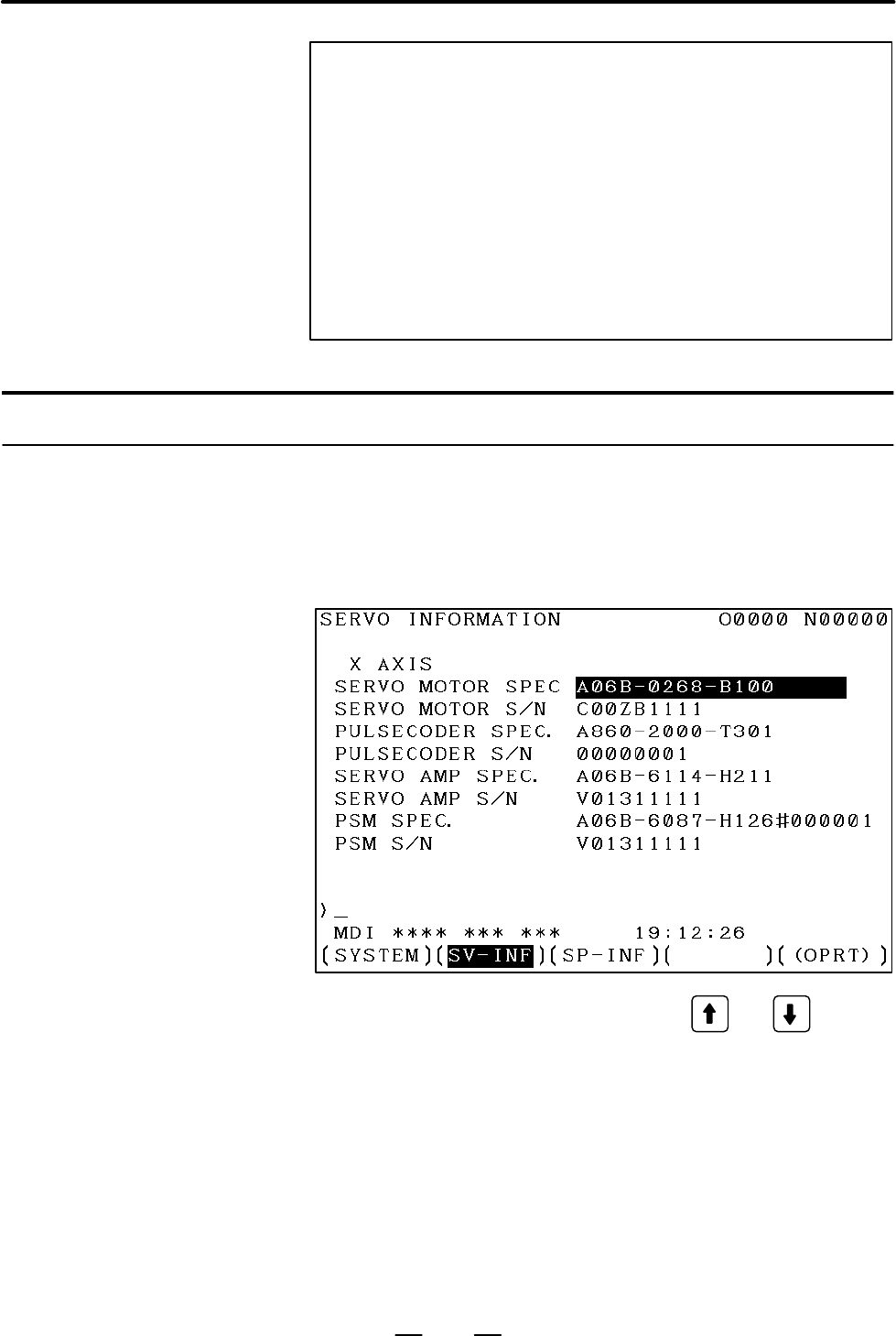

Editing the servo ID screen

1 Assume that parameter No.13112#0(IDW) = 1.

2 Press the MDI switch on the machine operator’s panel.

3 Follow the steps shown in ”Displaying the servo ID screen” to display

the screen as shown below.

4 To move the cursor on the screen, use the and keys.
