B–63835EN/03

8.TROUBLESHOOTING

459

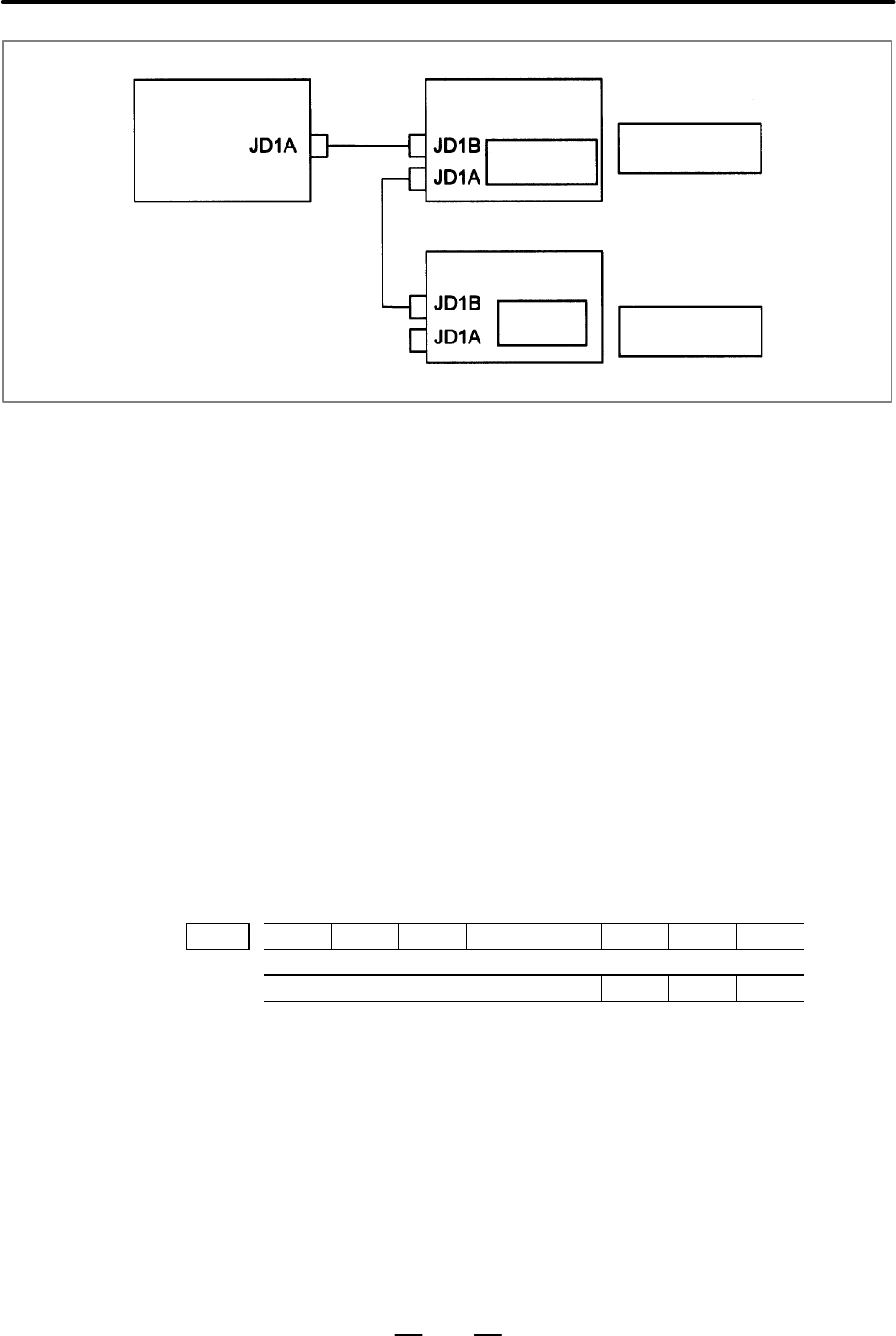

Control unit

I/O module for connec-

tor panel

Allocated so as not

to use a manual

pulse generator

Allocated to

use a manual

pulse generator

Group 0

Group 1

This manual pulse

generator I/F is

effective.

This manual pulse

generator I/F is not

effective.

Operator’s panel I/O

module

If the I/O module for a connector panel in group 0 is allocated so as not

to use a manual pulse generator, as in this example, the manual pulse

generator interface of the operator’s panel I/O module in group 1 is

effective.

The allocation can be confirmed on the allocation edit screen. Selecting

[EDIT] and then [MODULE] from the PMC screen causes the allocation

edit screen to be displayed.

After editing allocation, write the changes to the FROM on the [I/O]

screen. Otherwise, the changes will be lost when the power is turned off.

If allocation is performed properly, when a manual pulse generator is

rotated, the bits count up/down in the area of the corresponding input

signal (X). Select [PMCDGN] and then [STATUS] from the PMC screen

to display the corresponding address, and rotate the manual pulse

generator to check that the bits count up/down.

(1)Check CNC status display at lower left corner of the CRT.

(See Section 1.9.)

When the status display shows HND, mode selection is correct.

If it is not HND, mode select signal is not input correctly. Check the

mode select signal using the PMC’s diagnostic function(PMCDGN).

G0043

#6 #5 #4 #3 #2

MD4

MD2

MD1

1 0 0

↓↓↓

Manuale handle mode

4 Checking the parameters

and input signals
