B–63835EN/03

8.TROUBLESHOOTING

471

If nothing is displayed on the screen at power–up or if the LCD is locked

with “GRAPHIC IS READY.” or the slot status screen displayed, the

probable causes include the following:

D The display unit is not connected to the power supply.

D The CRT video cable, LCD optical cable, or backlight cable is not

connected.

D The LCD unit is not connected to the CNC with the optical cable or

the cable is broken.

D The necessary software is not installed.

D The main CPU board, display control card, or LCD unit printed circuit

board is defective.

D The CRT unit or LCD unit backlight is defective.

If “GRAPHIC IS READY.BOOT START”. is displayed, this indicates

that the display control circuit has started up normally but that the CNC

has not started up.

Make sure the power cable is connected to connector CN2 for the CRT

unit or to connector CPIA for the LCD unit. The power voltage is 24V.

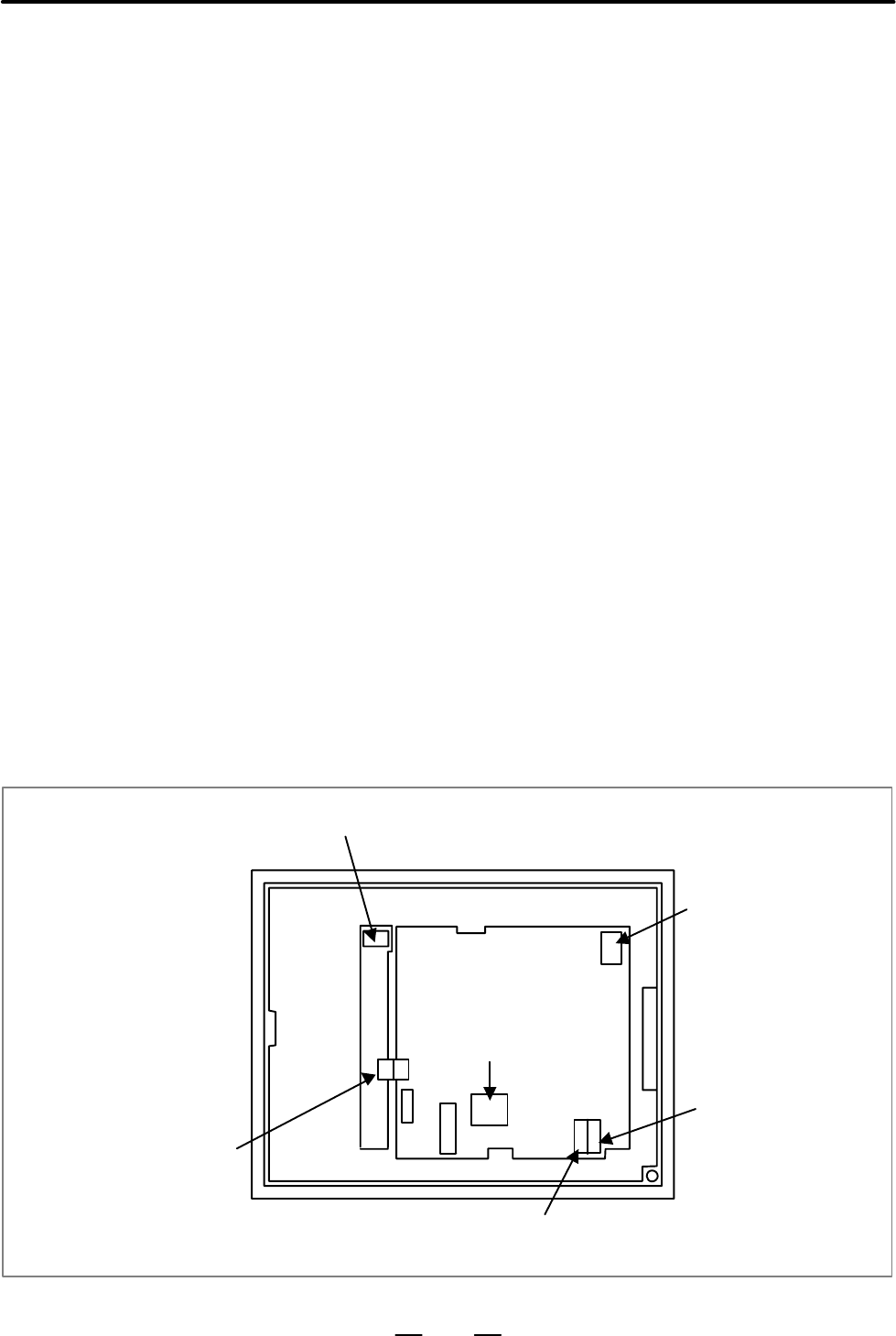

Connector for connecting the backlight cable

Inverter printed

circuit board

Connector for

connecting the

LCD cable

LCD control printed

circuit board

Optical cable

COP20B

24 V input

CP1A

For 24 V branch

CP1B

8.7

NOTHING IS

DISPLAYED ON THE

SCREEN WHEN THE

POWER IS TURNED

Causes and actions

D Power supply of the

display unit
