B–63835EN/03

4.INTERFACE BETWEEN CNC AND PMC

325

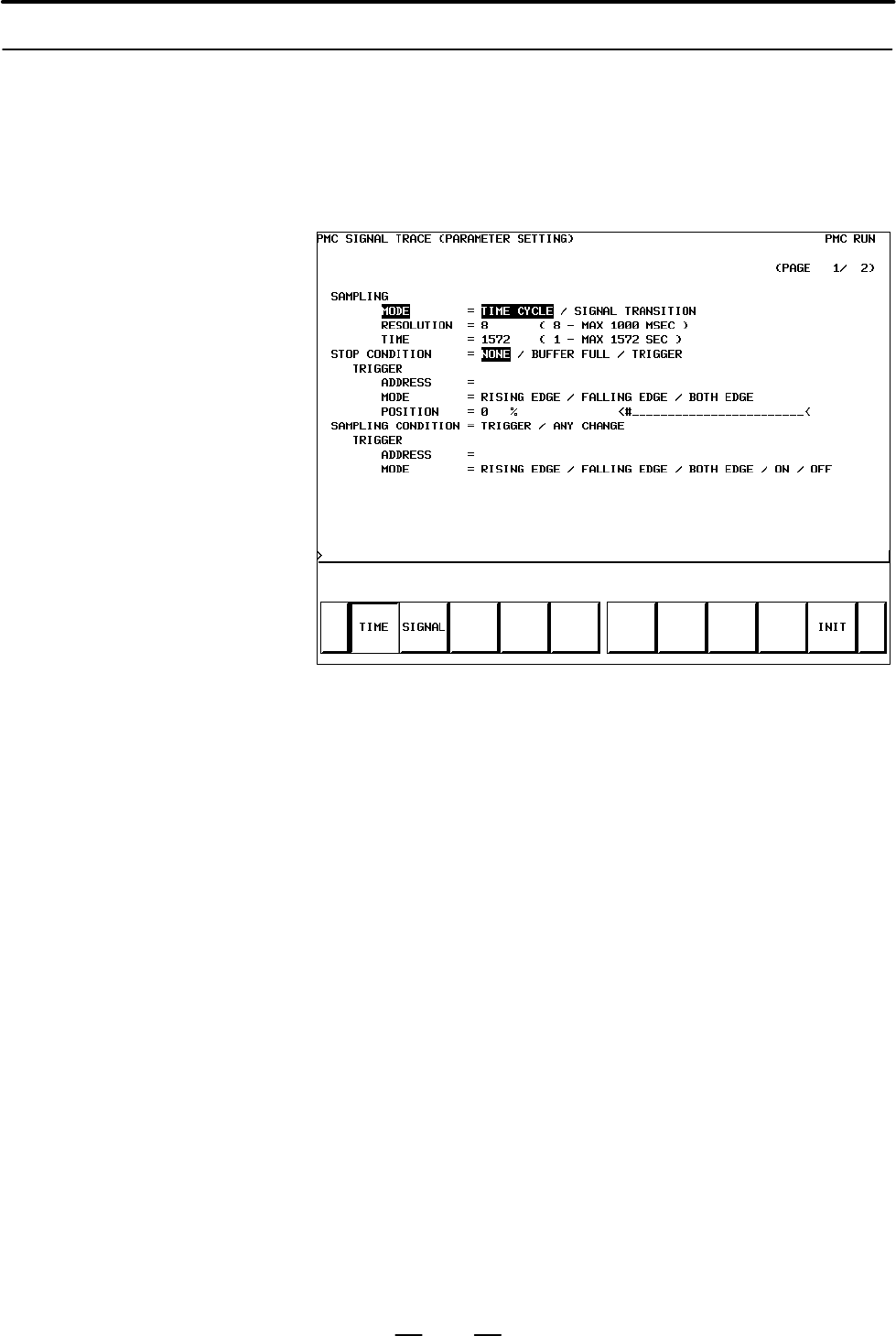

(1)Trace parameter screen (first page)

<1> Press the system key, then press the [PMC] soft key.

<2> Press the [PMCDGN] soft key.

<3> Press the [TRACE] soft key.

<4> Press the [SETING] soft key on the signal trace screen.

a) SAMPLING/MODE

Set a sampling mode.

D TIME CYCLE : Sampling based on a period of

time

D SIGNAL TRANSITION : Sampling based on signal

transitions

b) SAMPLING/RESOLUTION

Set the resolution of sampling.

c) SAMPLING/TIME

This item is displayed when “TIME CYCLE” is selected as the

sampling mode. Set a time interval for sampling.

d) SAMPLING/FRAME

This item is displayed when “SIGNAL TRANSITION” is

selected as the sampling mode. Set the number of sampling

times.

e) STOP CONDITION

Set a trace stop condition.

D NONE : Does not stop trace operation

automatically.

D BUFFER FULL : Stops trace operation automatically

when the sampling buffer becomes full.

D TRIGGER : Stops trace operation automatically by

a trigger.

4.4.3.4

Trace function
