B–63835EN/03

2. HARDWARE

173

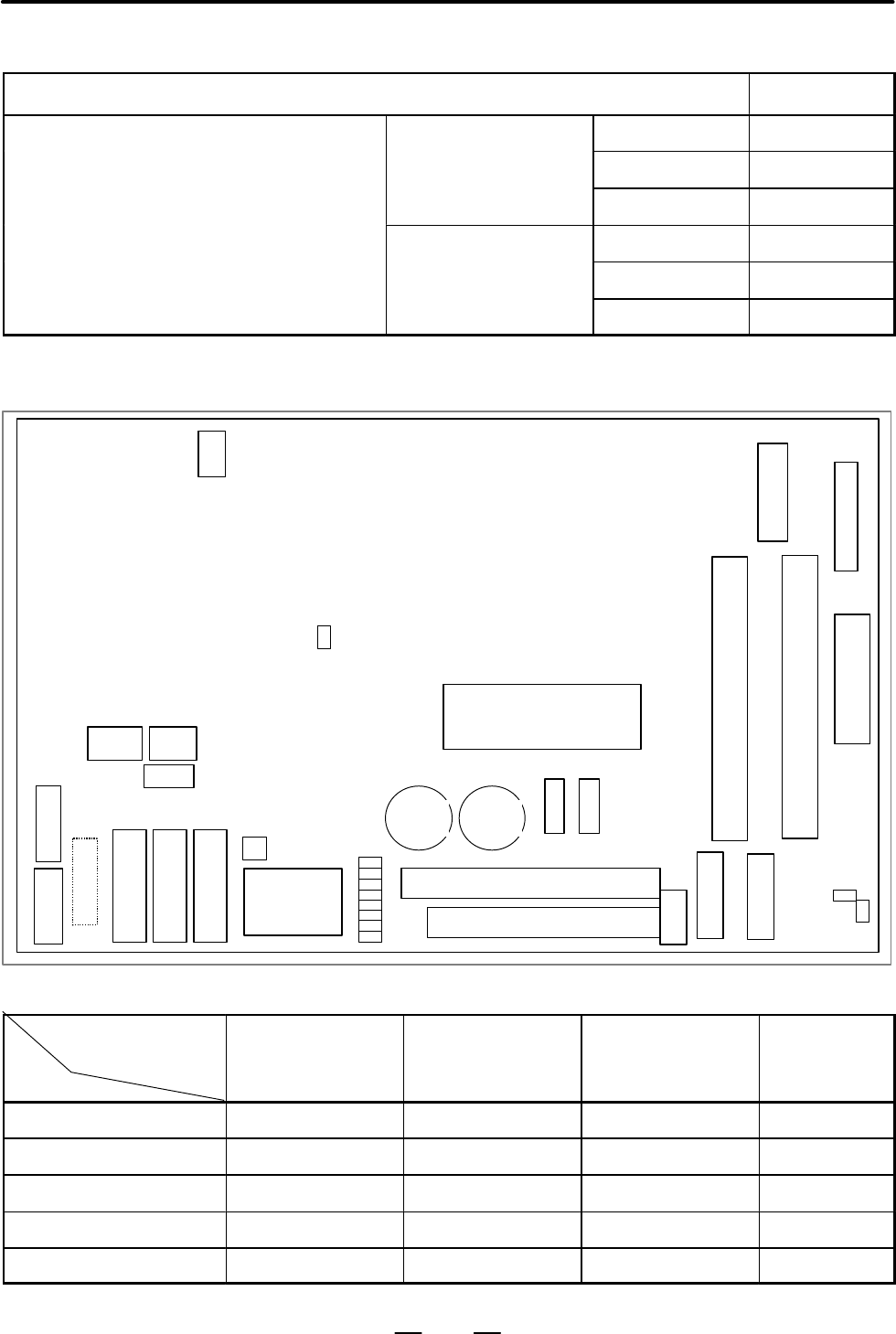

Item Code

Main CPU board For Windows95

For 10.4” LCD A20B–2100–0780

(For basic unit A08B–0082–B031 to –B038, –B041 to

–B048, –B051 to –B057)

For 12.1” LCD A20B–2100–0781

(For basic unit A13B–0193– B031 to –B038, –B041 to

–B048, –B051 to –B057)

For 15.0” LCD A20B–2100–0782

For other OS than Windows95

For 10.4” LCD A20B–2100–0783

For 12.1” LCD A20B–2100–0784

For 15.0”LCD A20B–2100–0785

CP5 FUSE–1

(7.5A)

FUSE–2 (10A)

(Unit Fan

Power)

CN6

(Inverter) *5

CN3 CN3B

JD46

(RS232–2, USB)

JD9

(CENTRO)

JD33

(RS232–1)

TM10

BAT1

BATTERY

COP7

(HSSB)

LED

CN4

(PC Card)

CD32B

MOUSE

CD32A

Keyboard

CN2

CN2B

(FDD

Power)

(HDD

Power)

CNH3 (HDD signal)

CD34 (FDD signal)

CN7

THERMAL

CNP1 (PCI)

CNP2 (PCI)

THERMAL

(HDD Fan

Power)

CN5 (PCMCIA)

CN1B (LCD)

CN1 (LCD)

SW5

SW7

Mounting positions of the parts in the location indicated by *5

LCD Unit Type

(Code of PC board)

Parts

10.4”LCD

(A20B–2100–0780,

–0783)

12.1”LCD

(A20B–2100–0781,

–0784)

15.0”LCD

(A20B–2100–0782,

–0785)

Fuse for

maintenance

FUSE–1 Provided None None A02B–0236–K101

FUSE–2 None Provided Provided A08B–0082–K001

CN3 Provided Provided Provided —

CN3B None None Provided —

CN1B None None Provided —

D Specifications

D Mounting positions of

connectors, LEDs, etc.
