Dual Check Safety Operators manual Page 165

Operators manual
B-63494EN/02 9.DIAGNOSIS
- 159 -

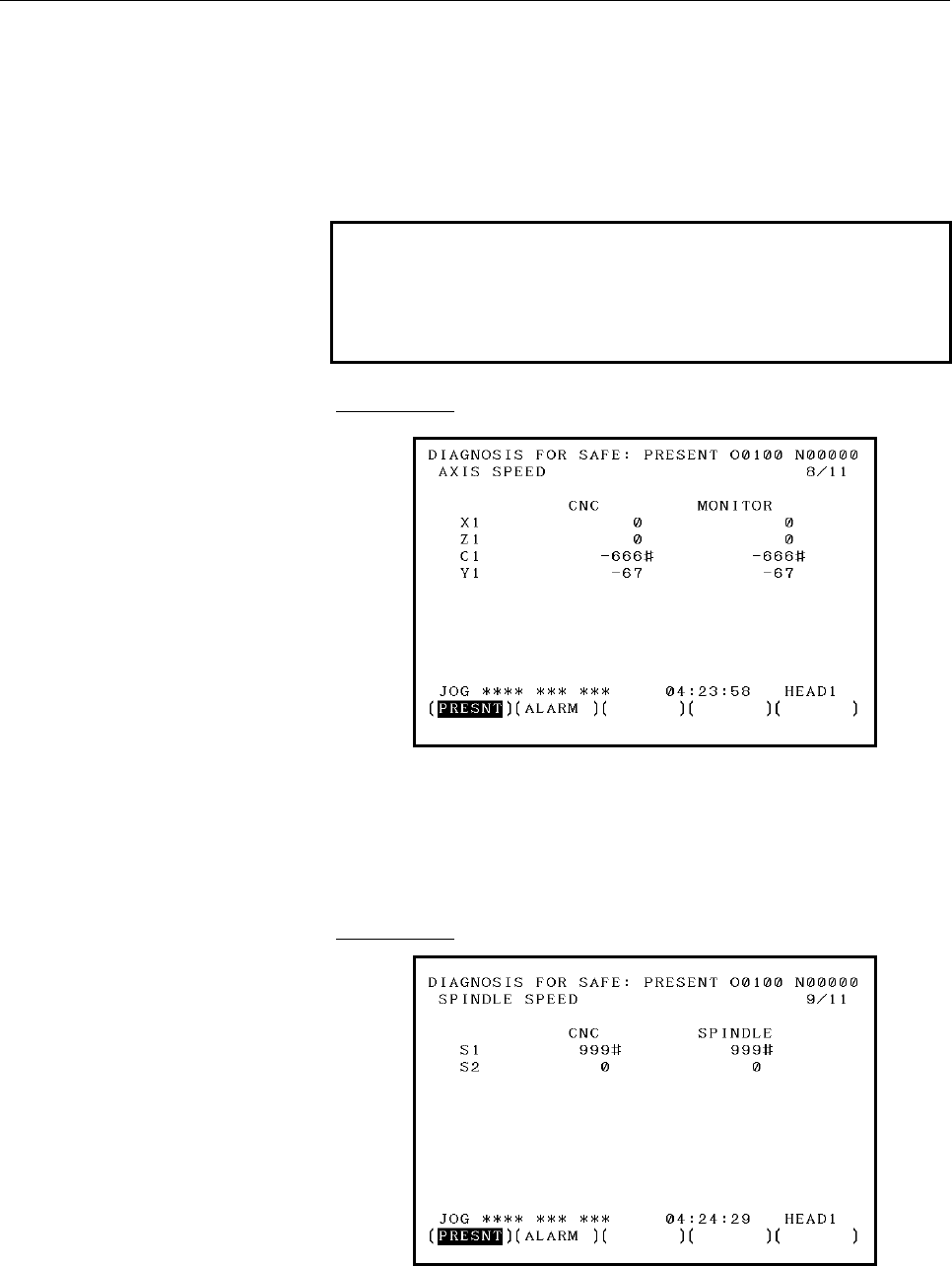

[Page 8] (Feed axis speed)
• The speed (detection unit/interpolation cycle
(NOTE)
) on the
CNC/monitor side is displayed.
• A blank is displayed for all axes with dual check safety disabled.
• For an axis exceeding the safety speed, the data is suffixed with
"#".
NOTE
When bit 1 (TR2x) of parameter No. 13802 is set to
1, the unit of speed on the CNC/monitor side is not
"detection unit/interpolation cycle" but "the number
of revolutions per minute."
Screen layout
[Page 9] (Spindle speed)
• The speed (motor speed) on the CNC/spindle side is displayed.
• For an axis exceeding the safety speed, the data is suffixed with
"#".
Screen layout
