Dual Check Safety Operators manual Page 166

Operators manual
9.DIAGNOSIS B-63494EN/02
- 160 -
<4> Monitoring state (displayed only when bit 0 (DCS) of parameter No. 13801 = 1)

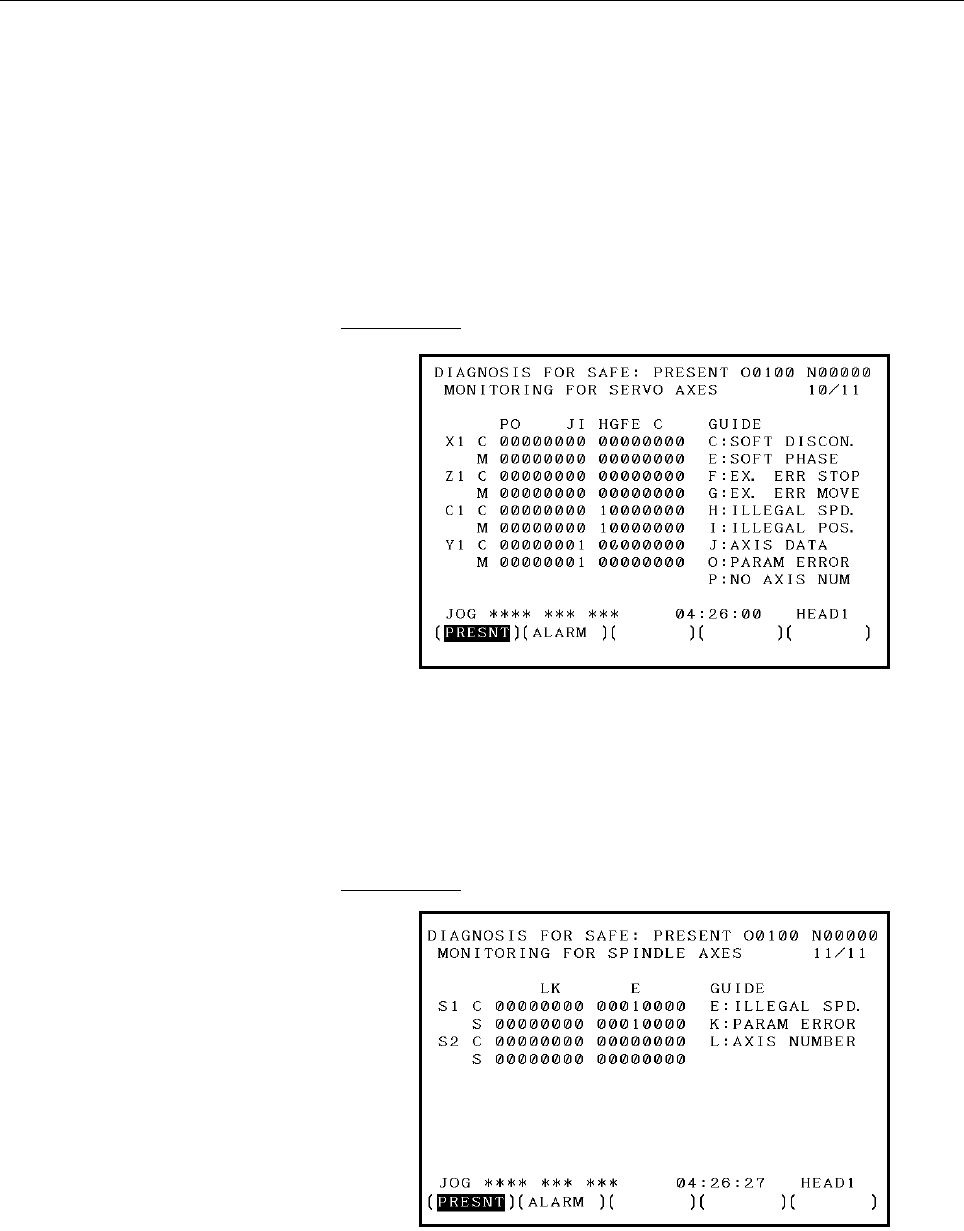

[Page 10] (Feed axis monitoring)
• The monitoring state (cross-check data) on the CNC/monitor side
is displayed.
• When five or more axes are involved, the screen display is
divided into two screens.
• If a mismatch is detected between the monitoring states
(cross-check data) on the CNC and monitor sides for an axis, "#"
is displayed to the left of the axis.
Screen layout
[Page 11] (Spindle monitoring)
• The monitoring state (cross-check data) on the CNC/spindle side
is displayed.
• If a mismatch is detected between the monitoring states
(cross-check data) on the CNC and spindle sides for an axis, "#"
is displayed to the left of the axis.
Screen layout
