LASER C SERIES Maintenance manual Page 15

Maintenance manual
B–70115EN/03
2. SAFETY
13
Fig. 2.1 (c) is the position of panel that laser beam exposure is
occurred without panel in C6000B, when you maintain
the oscillator.
Fig. 2.1 (d) is the beam path in the cabinet of C1500B, C2000B,
C2000C.
Fig. 2.1 (e) is the beam path in the cabinet of C3000C, C3000D.
Fig. 2.1 (f) is the beam path in the cabinet of C4000A.
Fig. 2.1 (g) is the beam path in the cabinet of C6000B.

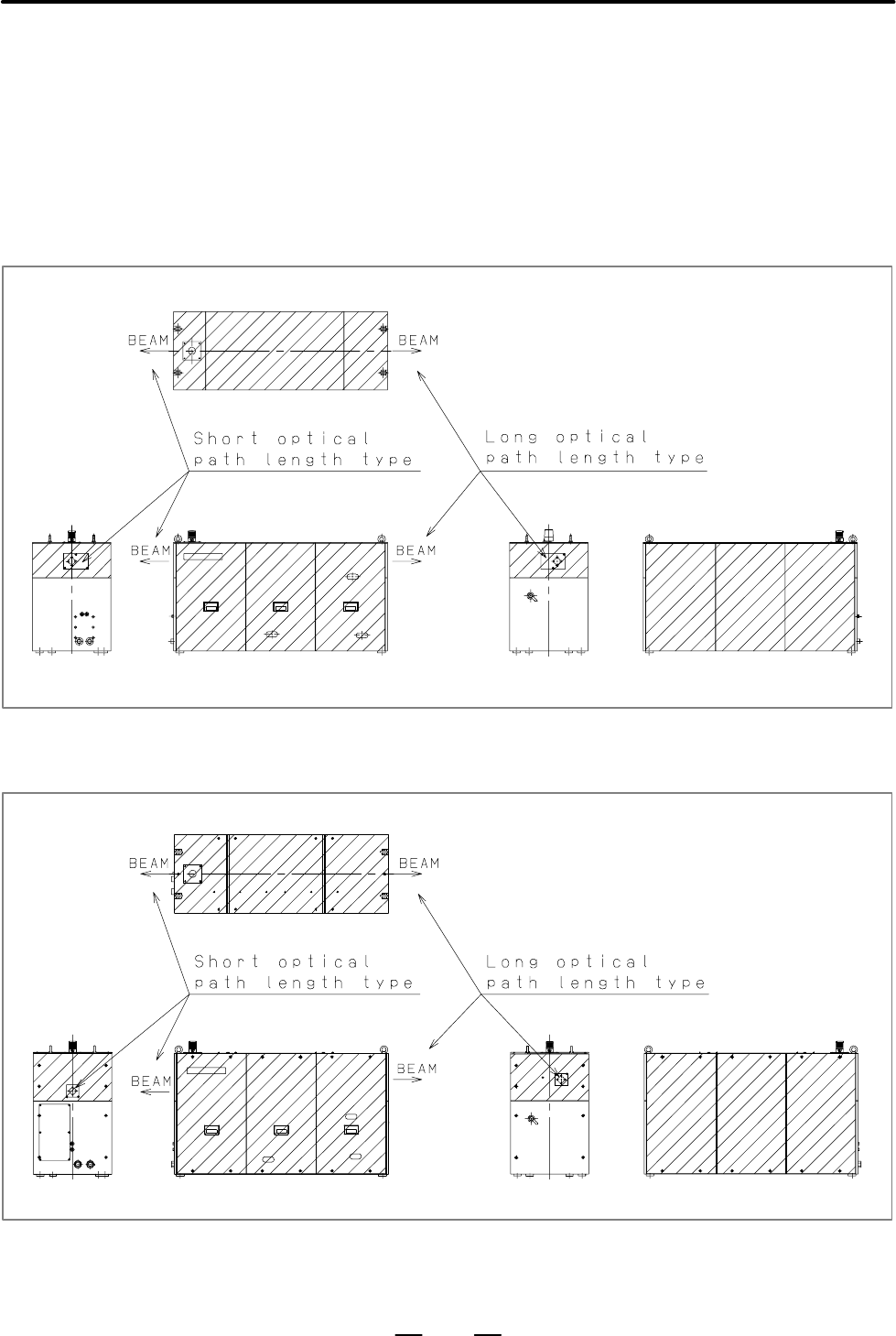

Fig. 2.1 (a) The position of panel that laser beam exposure is occurred without panel in
C1500B, C2000B, C2000C, C3000C, C3000D.
Fig. 2.1 (b) The position of panel that laser beam exposure is occurred without panel in C4000A.
