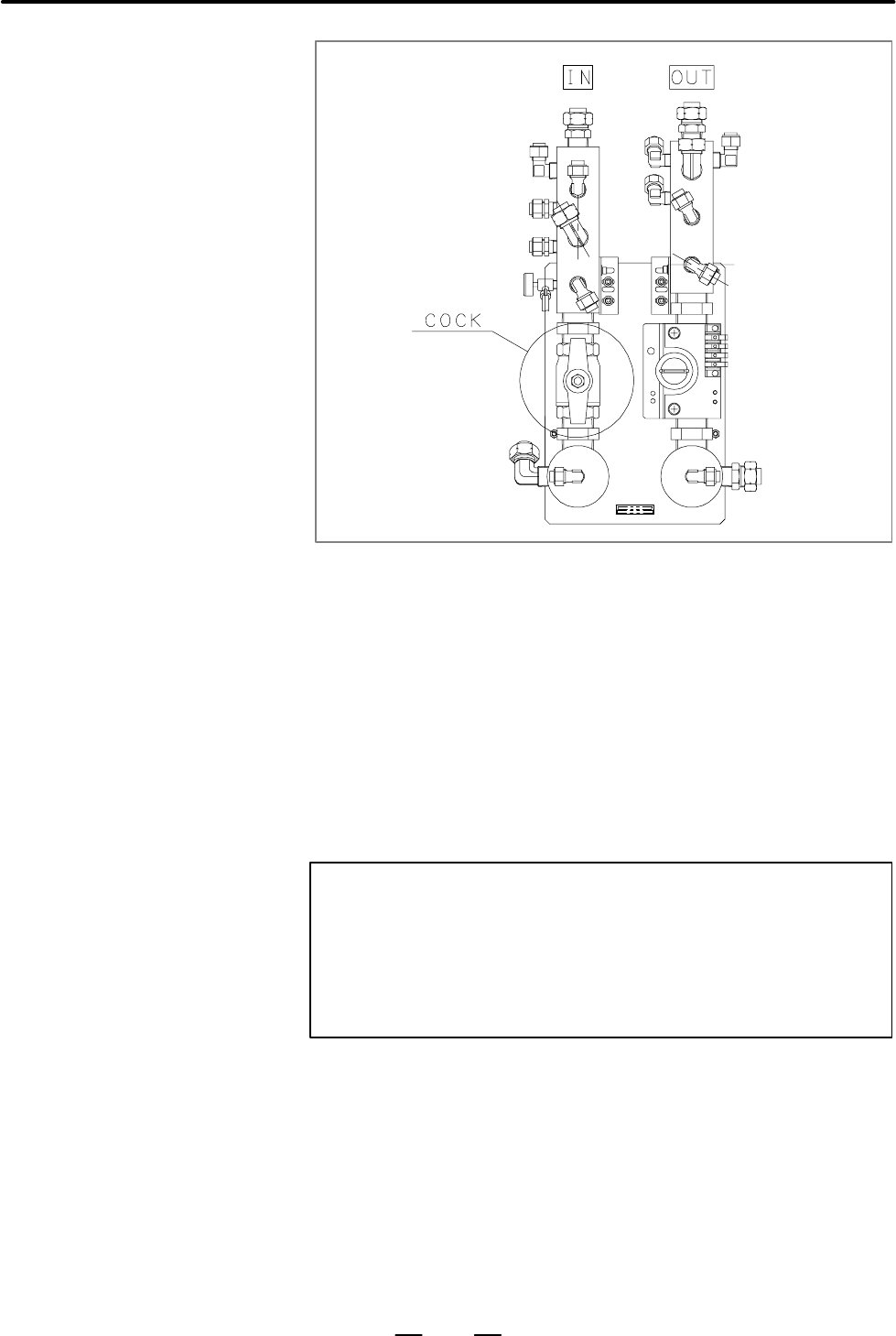

Fig 4.2.2 Detail of Distributor (C4000A)
(5)Next, connect the compressed air hose to the cooling water outlet
(OUT). At this time, ensure that cooling water inlet is open. Remove
water in the same procedure as (2), (3), and (4).
(6)Once all cooling water has been removed, disconnect the compressed
air tube. Then, seal the cooling water inlet (IN) and outlet (OUT) by
attaching the blanking plugs provided with the oscillator to the PT
plugs.
(7)When a valve is attached to the distributor unit (C3000D or C4000A),
check that the valve is open. Leave the valve open (for operation,
storage, or transport of the oscillator) except when water is removed.
CAUTION
Also, the cooling water should be removed from the
oscillator whenever the oscillator is to be stored over the
winter, when there is a danger of the cooling water freezing.
If the cooling water freezes, it may destroy the cooling water
pipes or other cooling system components.
