Open CNC (Ladder Editing Package) Operators manual Page 112

Operators manual
B–62884EN/01
3. OPERATION
107
(3) Selecting a subprogram
(a) After a program is loaded from the PMC, the “Sub–program list”
dialog box appears as shown below:
Sub–program list
LEVEL 1
LEVEL 2
P00001 (OPEN RIGHT DOOR ) MOVE RIGHT DOOR TO LIMIT–SWTH–R1
P00002 (OPEN LEFT DOOR ) MOVE LEFT DOOR TO LIMIT–SWTH–L1
S P00010 (GRIP WORK PEICE ) PICK UP A WORK ON THE STAND
P00011 (PUT WORK PIECE ) PUT DOWN A WORK
P00021 (CLOSE RIGHT DOOR) MOVE RIGHT DOOR TO LIMIT–SWTH–R2
P00022 (CLOSE LEFT DOOR ) MOVE LEFT DOOR TO LIMIT–SWTH–L2
CancelOK

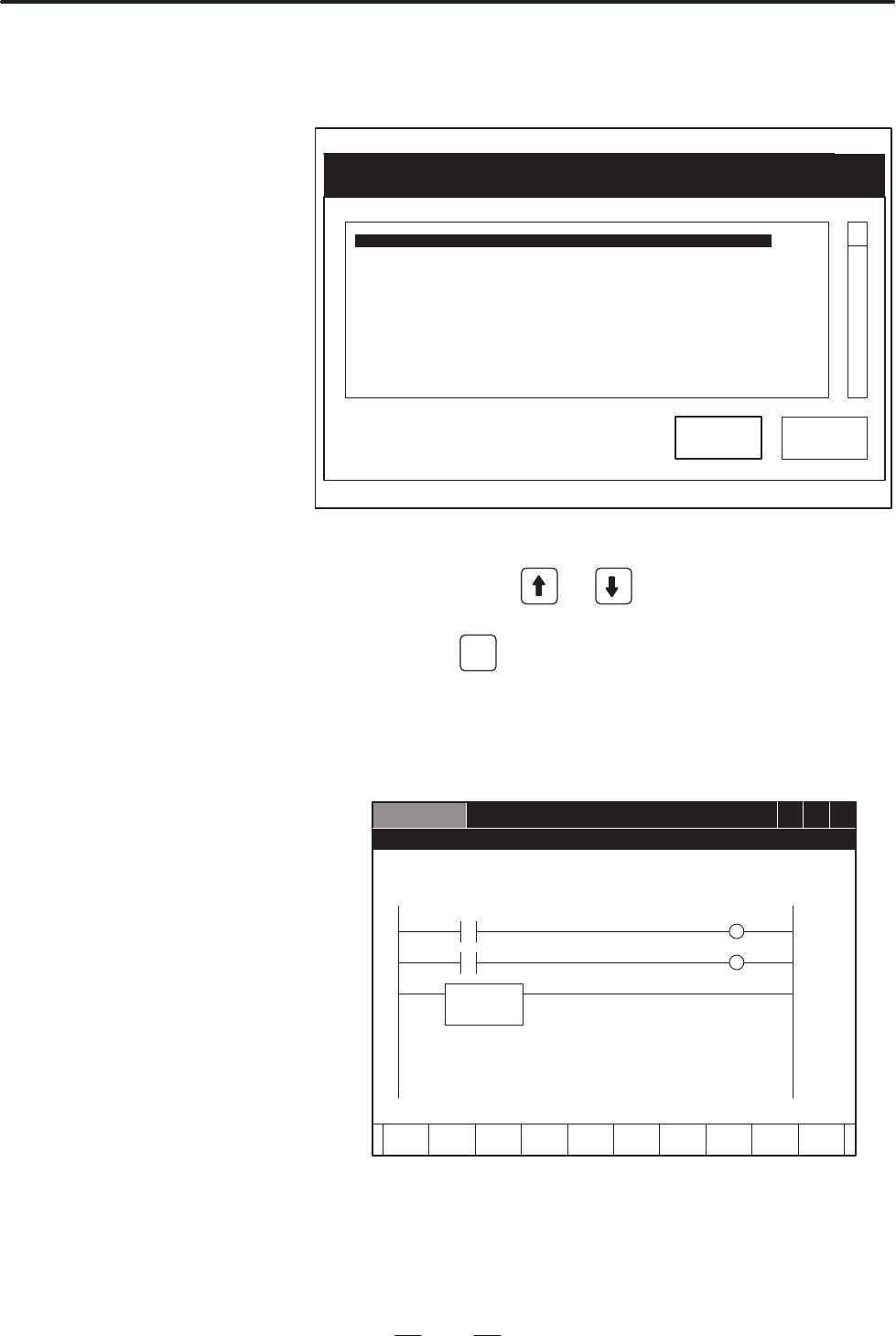

Fig.3.4.6.1 (c)
(b) By pressing the or key, position the cursor to the
subprogram to be displayed.
(c) Press the
Enter
key.
(d) The ladder diagram for the specified subprogram is displayed.
(4) Monitoring action of ladder diagram
The “Ladder Monitor” window is displayed as following.
(a) Displaying the “Ladder Monitor” window
F8
Search
F7
SpList
F9
Symbol
F10
Seting
Ladder Monitor
1. File
[LEVEL1] NET 00001-00006
SUB 1
END
D000
R0000.1
D000
R0000.0
2. Diagnose 3. I/O 4. Communication
Fig.3.4.6.1 (d)
(b) Monitoring contact and coil status
Contacts and coils are displayed to indicate their status: ON (1)
Previous page
Next page
