Open CNC (Ladder Editing Package) Operators manual Page 288

Operators manual
A. FUNCTIONS SPECIFIC TO INDIVIDUAL
PMC MODELS
B–62884EN/01
284

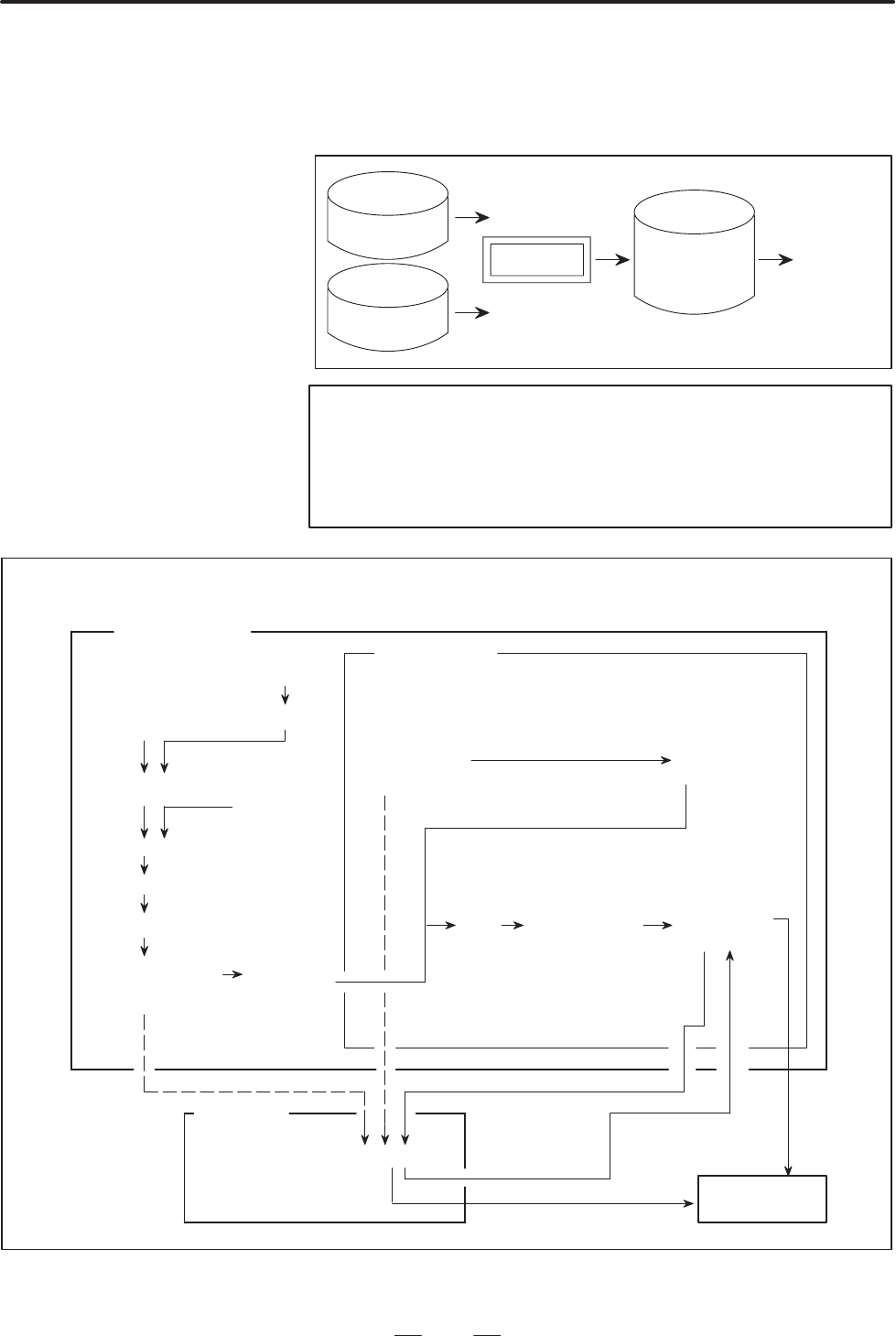

During linking, load modules created in the C language are linked with
a ROM format file. The C language can be used only with
PMC-RC3/RC4/RC4 (STEP SEQ)/QC/NB/NB2. Linking is not
required when the C language is not used.
ROM
format file
ROM
format file
Transferred
to the ROM
writers and
PMC
Link
Load modules
in C language
Notes
This function enables linking to be performed on a personal
computer. In addition, with this function, an object and C
language load modules can be separately transferred to
and linked on the PMC (dotted line in the figure below).
Personal computer
PMC – RC3
C program development environment for PMC-RC (/RC3/RC4/QC/NB)
Link control statement
creation tool
Link control sourceC language source
iC286 (compiler)
BND386 (binder)
BLD386 (binder)
OJ386 (converter)
Intel hexadecimal
load module
HEX2SREC
(Note 1)
FANUC
distribution
library
FAPT LADDER
Object file
(MCARD file)
Convert
(Note 2)
ROM format file
Link
ROM format file
with C language
Object file
(MCARD file)
Convert
(Note 2)
Debug
ROM writer
A.2
LINK
