Open CNC (Ladder Editing Package) Operators manual Page 150

Operators manual
B–62884EN/01
3. OPERATION
145
1) F1:Save(update) & quit
It returns to the program screen where ZOOM was
started, after the content of current program screen is
preserved.
2) F2:Quit
It returns to the program screen where ZOOM was
started, after the content of current program screen is
cancelled.
3) F3:Rename, save & quit
It returns to the program screen where ZOOM was
started, after the content of current program screen is
preserved into specified subprogram name.
(n) List of subprograms in use
The list of subprograms called from currently displayed program
is displayed.
(i) Operation
The command ”List” is operated with the following function
key.
1)
1 2345 function 6 7 8 or 9 or 10 comand
[comand] ↓
2) [comand]

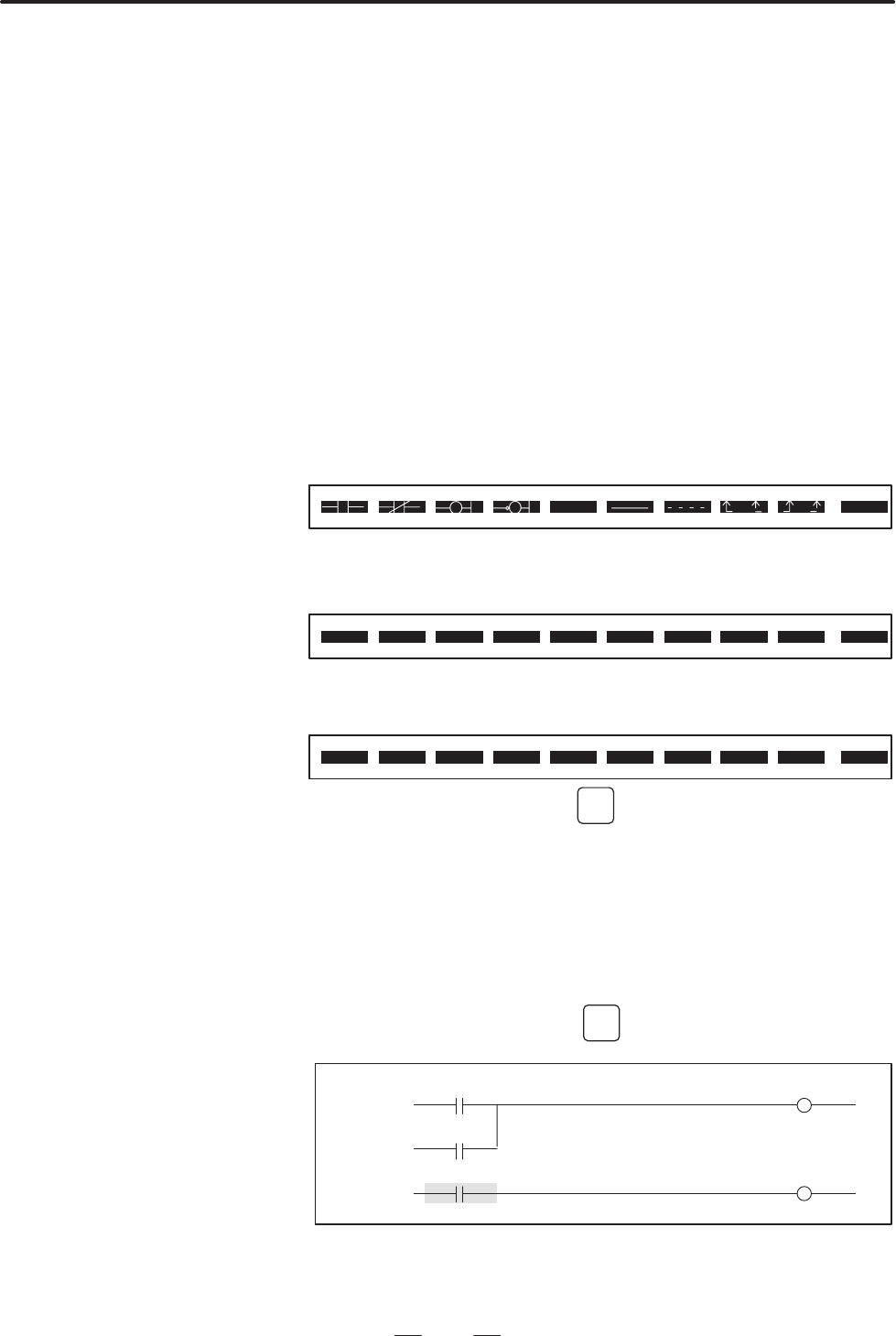

1 insnet 2 Delnet 3 Insert 4 Adress 5 Search 6 Copy 7 Move 8 File 9 syEdit 10
3) Select the [List] with pushing the [SHIFT] (the following
will be displayed) in state of 2)
(Shortcut command is “ + [COMMAND]”)
12345 G–srch 678910 List
L
(o) To edit Net comment
It is able to write the comments between ladder nets. These
comments are called “Net comment”, and each of them occupies
two steps in sequence program.
(i) To enter Net comment
1) Move the cursor to the position you want to write a net
comment.
And then press “
Shift
+[netcmt]”.
R100.1.0 R1000.2
R120.3
R100.1.0 R1000.2
Y2000.4
Y23.4
2) Lines at the cursor and after are shifted down, and the
area for comment enclosed by ‘(*’ and ‘*)’ is inserted.
