Open CNC (Ladder Editing Package) Operators manual Page 41

Operators manual
3. OPERATION
B–62884EN/01
36

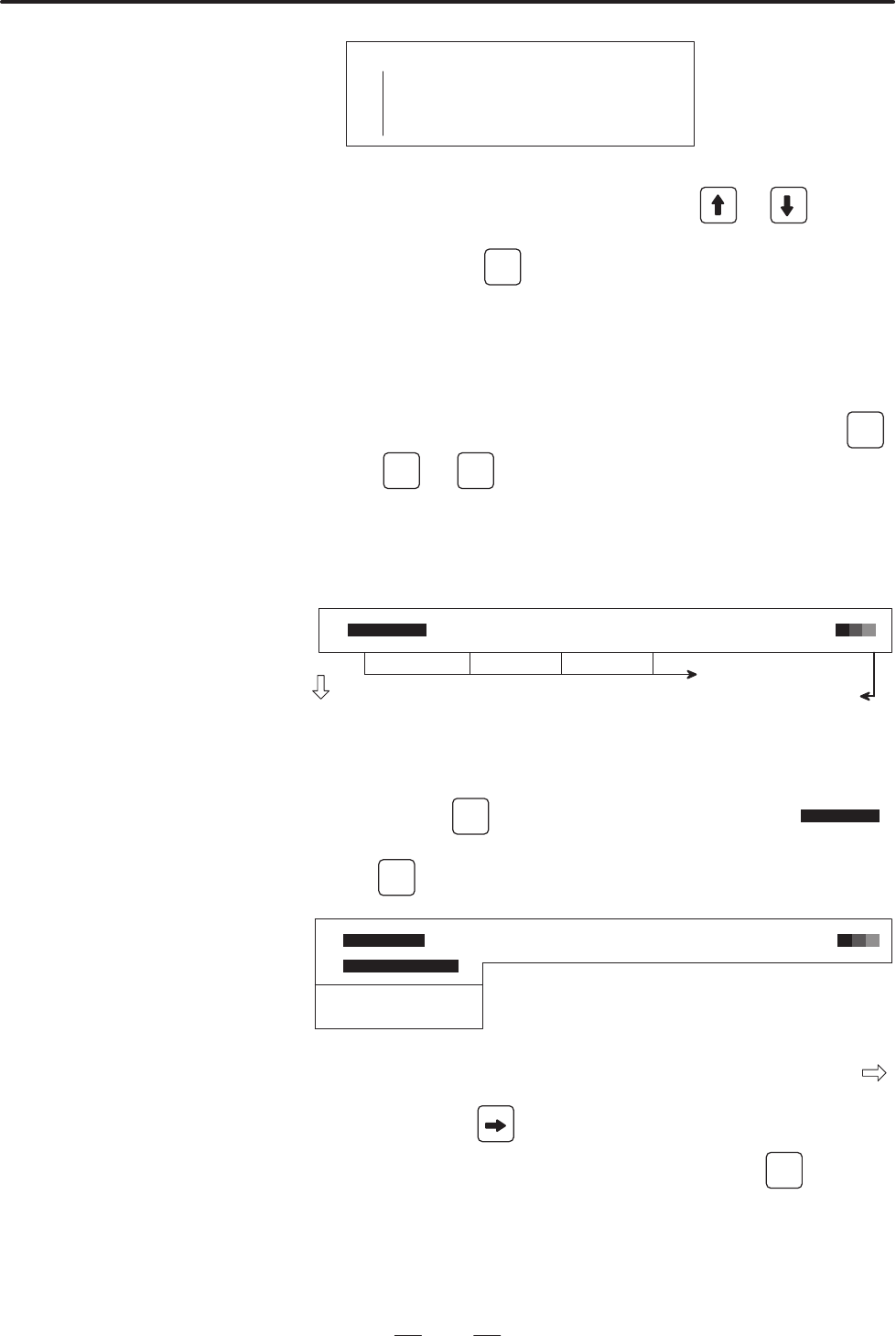

The file already exists.
F1 Update
F2 Quit
F3 Append
1) Cursor movement
To select an item, press the cursor key
or , such that
the item to be selected is displayed in reverse video. Then,
pressing the
Enter
key selects that item.
2) Function key
A function key is indicated at the left of each item. To select an
item, press the corresponding function key.
3) Command name
An uppercase letter in (usually, the initial of) an item name is the
command name. In the above case, pressing the letter key
U
,
Q
, or
A
can select the Update, Quit, or Append command,
respectively.
(9) Pull–down menus
On some screens, the following menu bar is displayed along the top
of the screen
Function number.
function name Icon for
PMC status indication
(See the section explan-
ing how to start the on–
line functions.)
I1. File 2. Diagnose 3. I/O 4. Communication
Pressing the
Alt
key displays the pull–down menu for
I1. File
The pull–down menu for a function can also be displayed by pressing
the
Alt
key and the corresponding function number simultaneously.
Exit
I1. File 2. Diagnose 3. I/O 4. Communication
File save
Using the cursor keys, position the highlight to the desired item on
a function’s pull–down menu. A menu item with an arrow mark (
)
at its right edge has its own pull–down menu, which can be displayed
by pressing the
key.
The target screen is displayed by pressing the
Enter
key after
positioning the highlight to a desired menu item.
