Open CNC (Ladder Editing Package) Operators manual Page 131

Operators manual

Page of 328

/ 328

3. OPERATION

B–62884EN/01

126

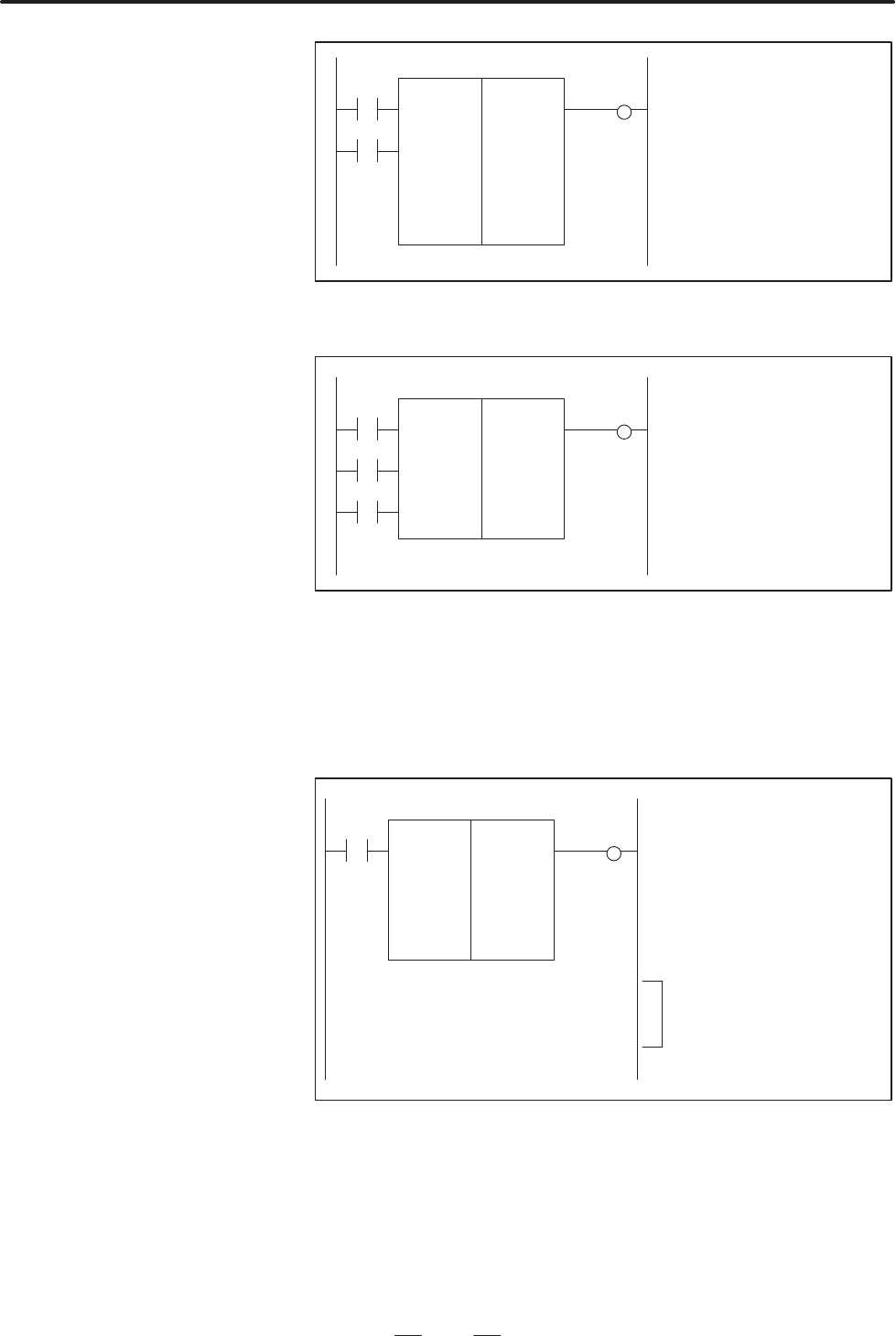

SUB 36

ADDB

1004

R000

R010

R020

RST

ACT

Number of control conditions = 2

Number of parameters = 4

Number of lines = number of

parameters + 1 = 5 lines

– When the number of control conditions > number

of parameters

SUB 11

PARI

R100

O.E

RST

Number of control conditions = 3

Number of parameters = 1

Number of lines = number of

control conditions + 1 = 5 lines

ACT

(b–3) Data table section of function instructions

The data table section of the COD, CODB, or

DISP instruction is calculated as follows:

– When the data table is one or two bytes

Number of lines =

number of data tables/6 (+ 1 if there is a

remainder)

SUB 49

DISP

0011

0003

D300

ACT

000

003

006

009

0000

Number of lines in the data table

section = 11/6

= 1 with remainder 5

= 2 lines

– When the data table is four bytes

Number of lines =

number of data tables/4 (+ 1 if there is a

remainder)
