2) Delete the AMROPTRP.DAT file from install directory.

Example:C: \ FLADDER>DEL AMROPTRP.DAT

Enter

3) Change the name of the AMROFTRP.PR file to

AMROPTRP.DAT.

Example:C: \ FLADDER>RENAME AMROFTRP.PR

AMROPTRP.DAT

Enter

Note

To reenable output to the EPSON VP1000 printer, perform

steps 1) through 3), replacing AMROFTRP.PR with

AMROFTRP.ESC.

(2) Changing the printer specification to a FANUC printer

For details, see Section 3.5.3.5 (4).

Note

FANUC PRINTER is connected to a serial port with

RS-232-C cable.

Please set the communication mode from DOS prompt

before start by the following command.

(Example) When connected to a serial port COM1.

/>MODE COM1:4800,N,8,2

Enter

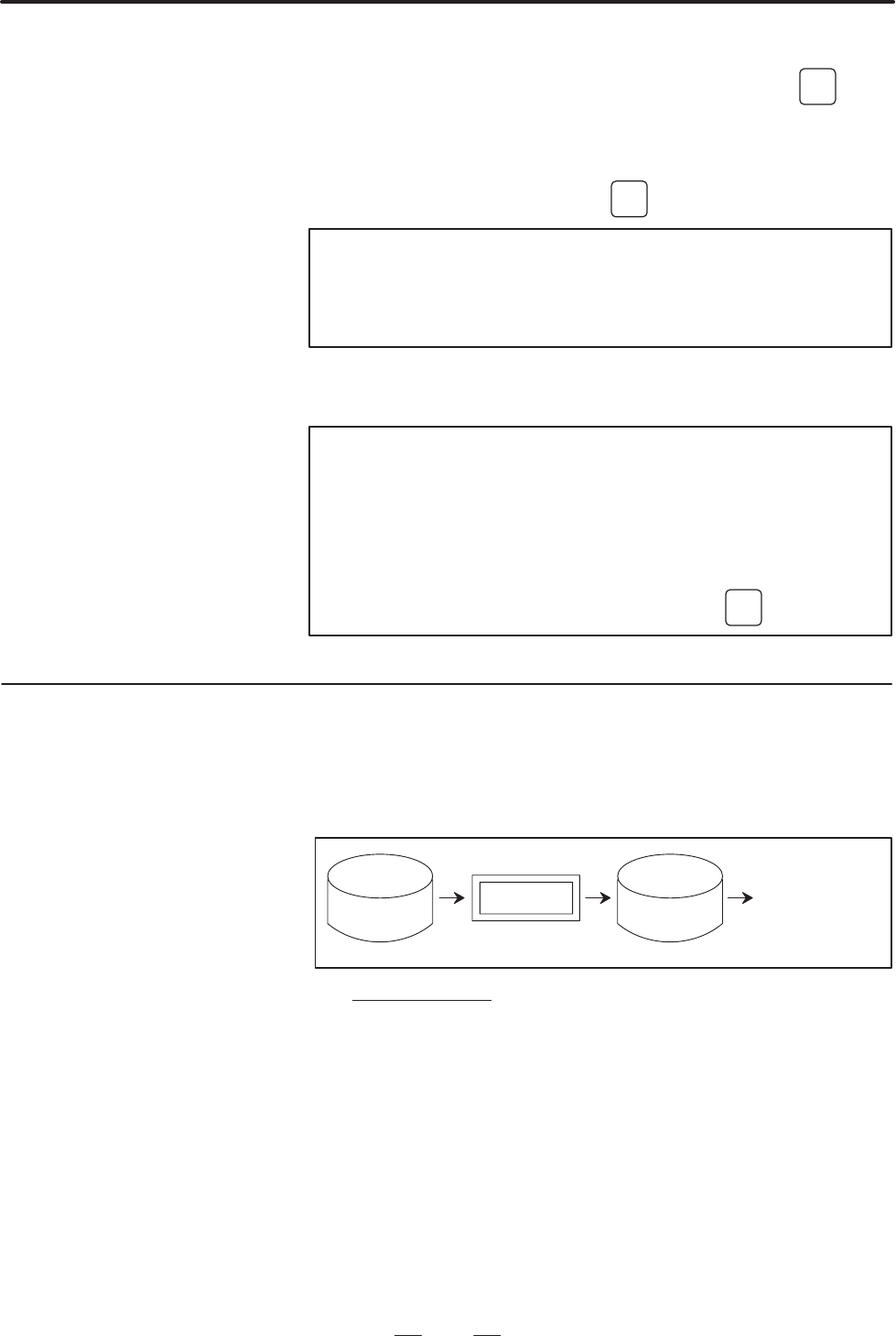

During compilation, an edited source program is translated into an object

file executable by the PMC. Uncompiled programs cannot use online

function and cannot be transferred to the RAM for the PMC. Compilation

can be performed in one of two modes: normal mode and condensed

mode.

Compile

Transferred to the

ROM writer

and PMC

Source

program

Object

file

D Condensed mode

A source program can be compiled in condensed mode. When a

ladder with the same number of steps is compiled in condensed mode,

the size of the created object file is smaller than that created in normal

mode. As a result, condensed mode has the advantages listed below.

3.5.4

Compilation
