B–62884EN/01

3. OPERATION

127

SUB 27

CODB

0005

0007

D300

D320

RST

000

002

004

00000000

ACT

00000000

Number of lines in the data table

section = 5/4

= 1 with remainder 1

= 2 lines

(b-4) Example of calculating the number of lines per

screen

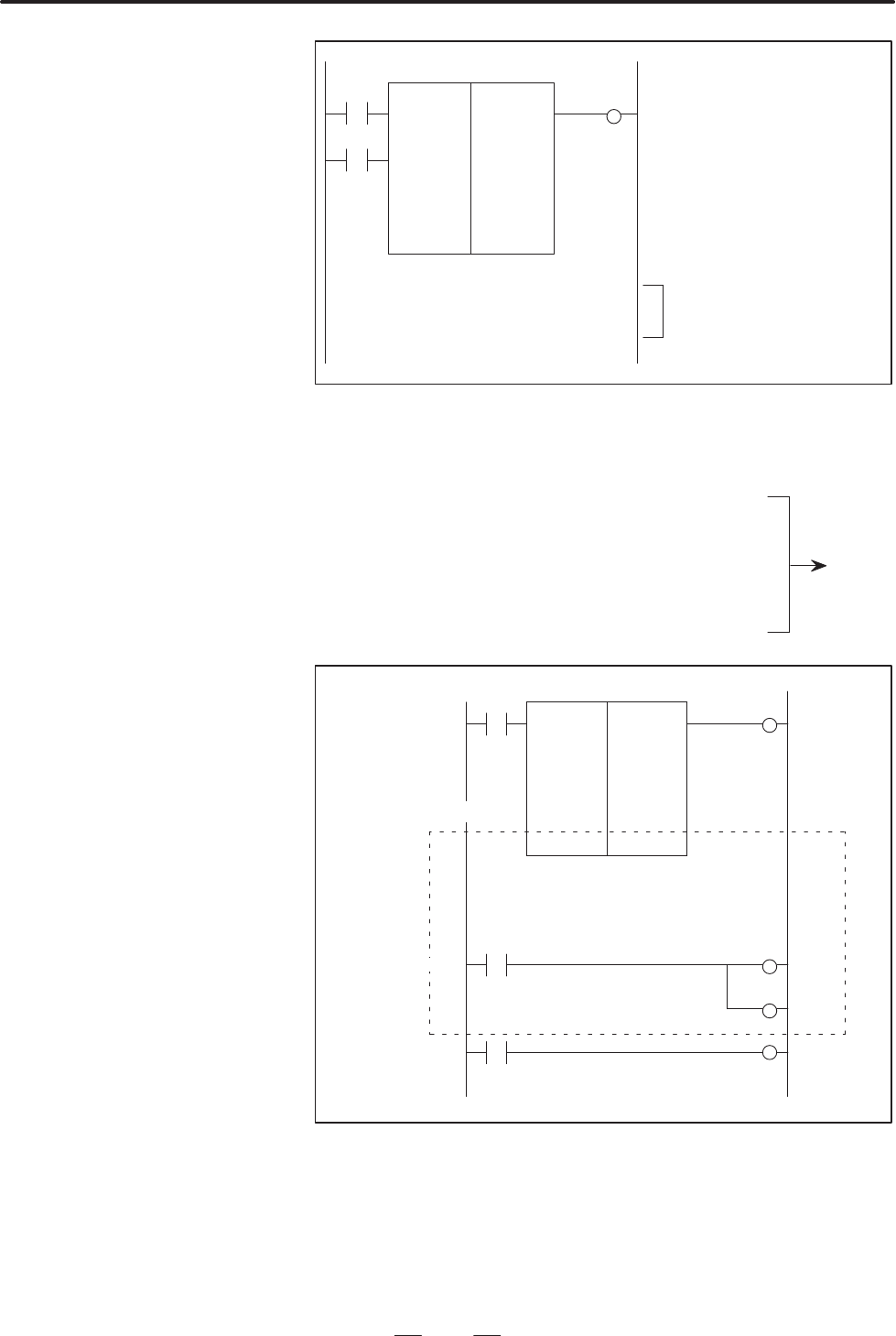

For the ladder shown below, the number of lines in

the screen display section is obtained as follows:

- The valid nets on the display

screen are nets A and B.

- Number of lines in net A

Function instruction section +

data table section = 6 lines

(3+1) (11/6)

- The number of lines in net B is 2.

Net A

SUB 49

DISP

0011

0003

D300

000 0000 0000 0000

003 0000 0000 0000

006 0000 0000 0000

009 0000 0000

ACT

Net C

Screen display section

Net B

c) Examples of symptoms

Example of symptom (a-1)

- The ladder diagram can be edited only when the

”total number of message data steps” parameter of

the DISP instruction (SUB 49) is less than or equal

to 396. This is because when the total number of

steps is 396, the net consists of 70 lines.

8 lines
