Open CNC (Ladder Editing Package) Operators manual Page 14

Operators manual

Page of 328

/ 328

B–62884EN/01

1. GENERAL

Start control system development

Determine control targets (machine, CNC)

Determine control operation specifications

(calculation of number of DI/DO points, control scale determination)

Determine interface specifications (DI/DO assignment)

Create sequence program (design, address map determination, coding)

In on–line mode, programming/monitoring can be performed during communication with the PMC. In

off–line mode, programming is performed on the OPEN CNC without communication. Other PMC pro-

gramming systems (for use with personal computers) are FAPT LADDER and FAPT LADDER–II. For

details, refer to the following manuals:

– FAPT LADDER Operator’s Manual (B–66131E)

– FAPT LADDER–II Operator’s Manual (B–66184EN)

 Ladder diagram monitoring/editing

 Signal monitoring

 Ladder diagram editing

YES

New?

Debugging

completed?

 Compile (link)

Print?

 Decompile

 Sequence program printing

Sequence program input, editing, debugging, and printing

On–line functions

Off–line functions

YES

End

 Mnemonic

editing

YES

End

YES

NO NO

Debugging

completed?

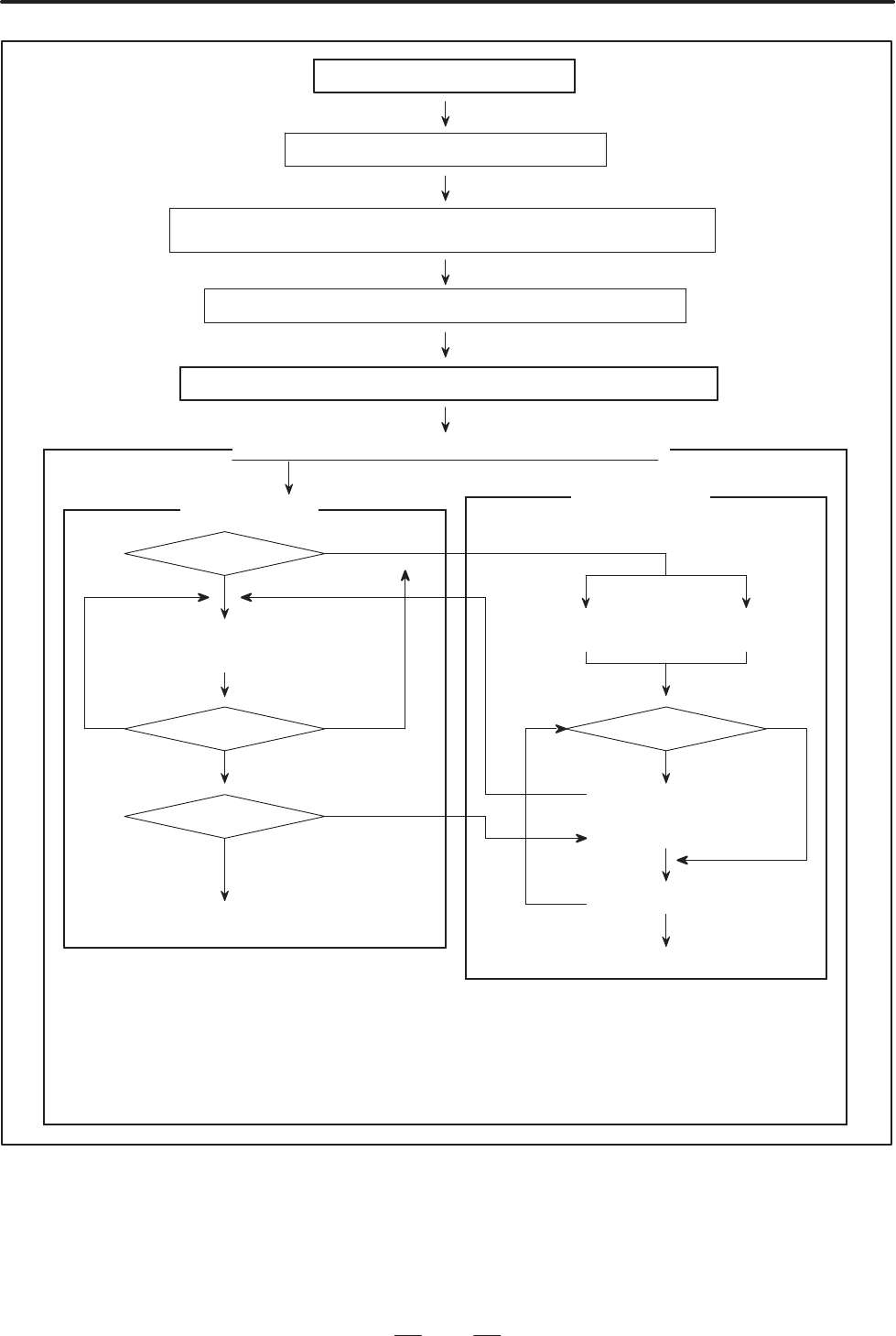

Fig.1.2.3 Sequence Program Creation
