5. CONNECTION TO CNC PERIPHERALS

B–63523EN/03

100

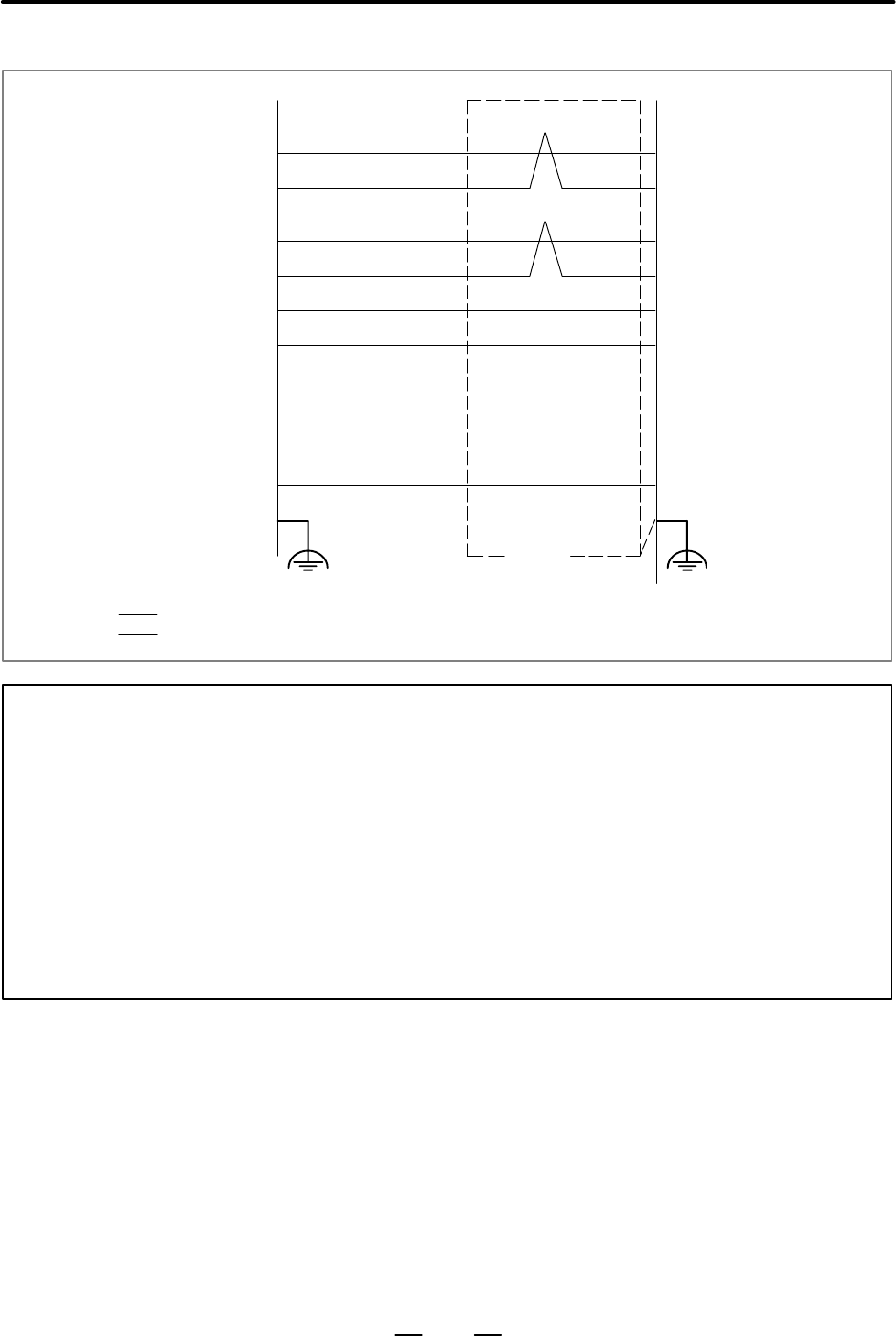

4) Details of the cable J128

RXTP

*RXTP

TXTP

*TXTP

+24V

RXTP

*RXTP

TXTP

*TXTP

+24V

Connection panel Connector panel

Pair

(*2)

(*3)

Shield

Wire:

wire ³ A66L–0001–0284#10P (#28AWG × 10 pairs): Oki Electric Cable Co., Ltd., Hitachi Cable Ltd.

wire ³ Twisted wire with a cross–sectional area of 2 mm

or more (FG)

NOTE

1 ATCH1 and ATCH2 are not used.

2 FG on the connection panel

Connect the FG of the connection panel to the frame ground.

For grounding, use a twisted wire, 100 to 300 mm long, with a cross–sectional area of 2 mm

or more.

The FG is used to ground the shield of the J127 cable.

3 FG on the connector panel

Connect the shield of the J128 cable on the connector panel to the frame ground.

For grounding, use a twisted wire, 100 to 300 mm long, with a cross–sectional area of 2 mm

or more.
